Digital mixing desk

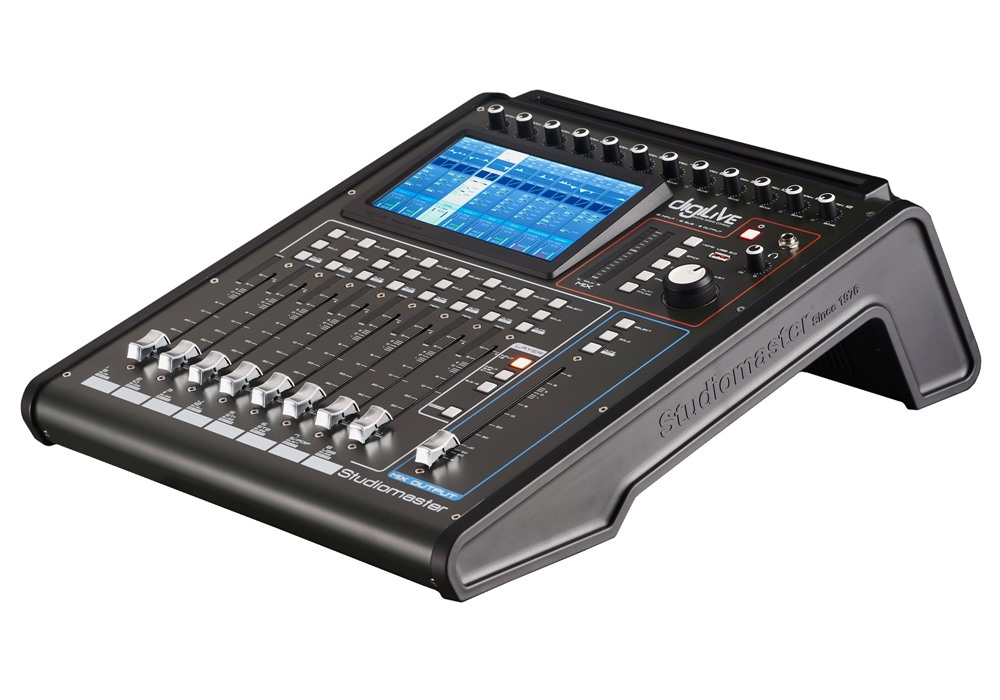

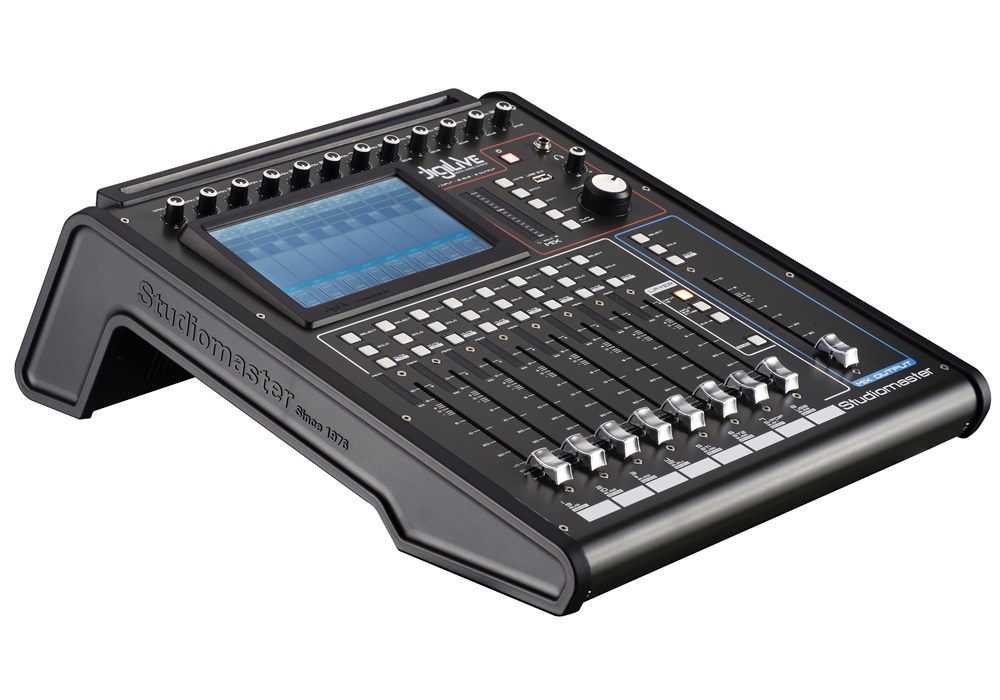

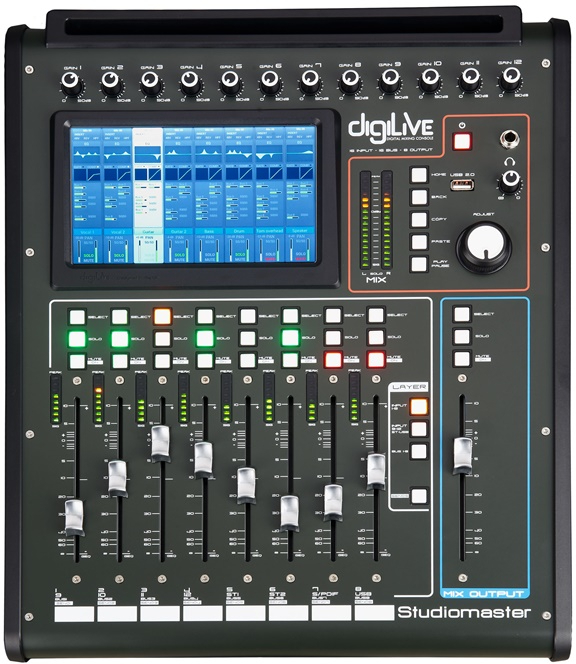

The Studiomaster Digilive 16 is a 16 channel digital soundboard.

16 inputs with 16 internal busses
12 professional microphone input channels
2 stereo inputs
8 configurable smart outputs
7? high-resolution touchscreen
9 motorized 100mm faders
Advanced hybrid user interface.e

Technical sheet

Number of channel mixing desk 10 to 22 channels
Number of channels 16 channels

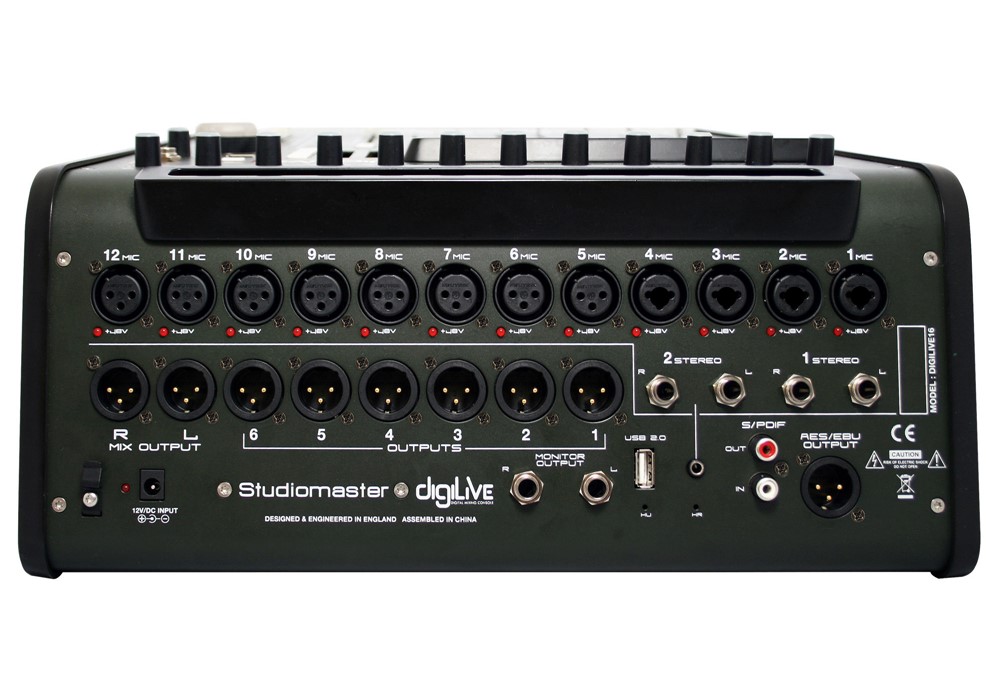

Mic Inputs: 12 (8x XLR / 4x Combo XLR)
Stereo Inputs: 2
Master Output: 2 (Left/Right balanced XLR)
Smart Outputs: 6 (assignable balanced XLR)
Internal busses: 16
Stage monitor: 1 TRS Jack output
Headphone: 1 TRS Jack output
Screen: 7? high definition touch screen
Faders: 8x motorised 100mm channel faders + 1x motorised 100mm master L/R mix
Operation system: Android system
Network: Yes, via included WiFi module
Remote control: iPad iOS via ‘Digilive Blackbox’ app
Sample Frequency: 48 KHz
AD/DA: 192 KHz, 24-bit
DSP: 40 bit float point, SHARC processor
Effects: up to 8 assignable effect modules
AES/EBU: Output XLR
S/PDIF: Input / Output (RCA Phono)
USB Interface: 2 for playback/recording, scene/setting storage and system updates
Power Supply: 90-240V ~ 50/60Hz power supply 12VDC
Dimension W*H*D: 357 x 480 x 145 (mm)
