Expansion cards for mixing desk

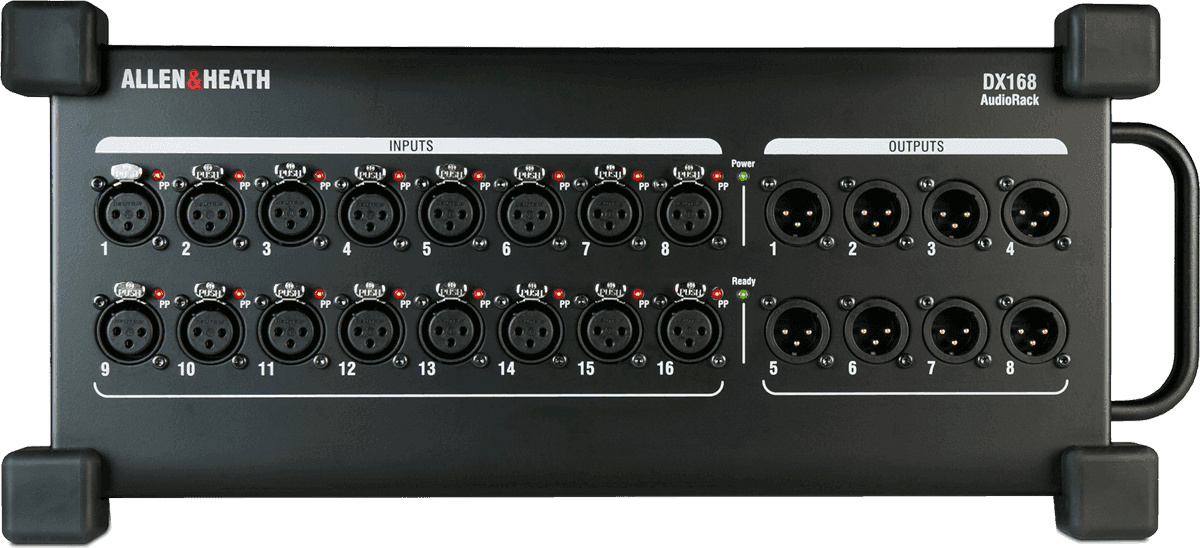

the DX168 is a digital stage box 16 in Xlr, 8 out Xlr.
The AudioRacks Digital Stage Enclosures allow you to deport the connections of a compatible system, and to fully develop the potential of the SQ and GLD systems by offering them up to 48 remote microphone inputs, and this via a simple Cat5 cable, compatible with the Qu, SQ and GLD systems.
The DX168 is a portable stage box for Class S and Class C dive systems featuring 16 XLR mic inputs and 8 XLR line outputs. It communicates with the dLive system via the proprietary DX protocol running at 96kHz. Specially developed for this system, this protocol allows to deport the dLive system expansion rack from a distance of up to 100 meters, via a simple Category 5e cable.
Thanks to the "Cascade" mode, which will be available at the next dIive system update 1.60, up to six DX168s can be connected to any Class S or Class C dLive system, offering up to 96 remote inputs and 48 outputs. .
This new expansion rack takes the form of a rugged digital multipair, delivered with heavy-duty rubber bumpers and an ideal carrying handle for direct on-stage positioning. It is also possible to mount the DX168 in a 19 "rack thanks to an optional racking kit.
The AudioRacks Digital Stage Enclosures allow you to deport the connections of a compatible system, and to fully develop the potential of the SQ and GLD systems by offering them up to 48 remote microphone inputs, and this via a simple Cat5 cable, compatible with the Qu, SQ and GLD systems.
The DX168 is a portable stage box for Class S and Class C dive systems featuring 16 XLR mic inputs and 8 XLR line outputs. It communicates with the dLive system via the proprietary DX protocol running at 96kHz. Specially developed for this system, this protocol allows to deport the dLive system expansion rack from a distance of up to 100 meters, via a simple Category 5e cable.
Thanks to the "Cascade" mode, which will be available at the next dIive system update 1.60, up to six DX168s can be connected to any Class S or Class C dLive system, offering up to 96 remote inputs and 48 outputs. .
This new expansion rack takes the form of a rugged digital multipair, delivered with heavy-duty rubber bumpers and an ideal carrying handle for direct on-stage positioning. It is also possible to mount the DX168 in a 19 "rack thanks to an optional racking kit.
Lire la suite
Technical sheet
- 16 XLR microphone inputs with phantom power indication LEDs
- 8 XLR line outputs
- Compatible with dLive Class S and Class C
- Up to 6 DX168 can be connected to a dLive system, offering 96 inputs and 48 outputs

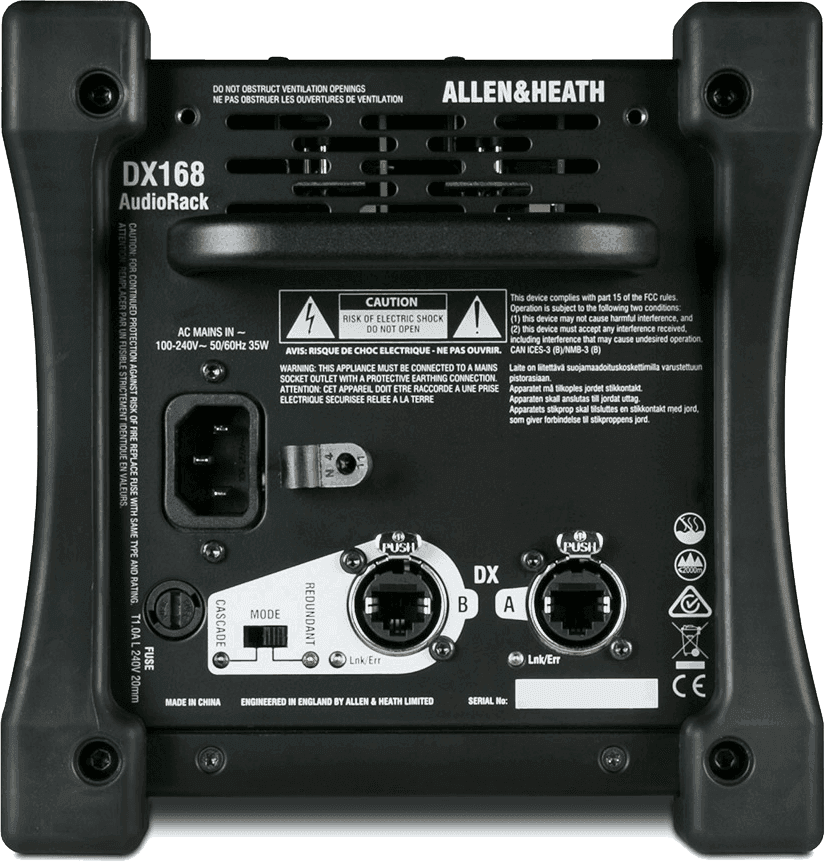

- Cascade mode to connect in daisy chaining 2 DX168 to offer additional inputs / outputs (Requires firmware 1.60 on the dLive system)
- Redundant DX connection on dLive Class S
- 19 "Optional Racking Kit: SAH RK-AB168
- Compatible with CAT5e cables (or more) up to 100 meters
- Rubber protections
- Carry handle.
