Digital mixing desk

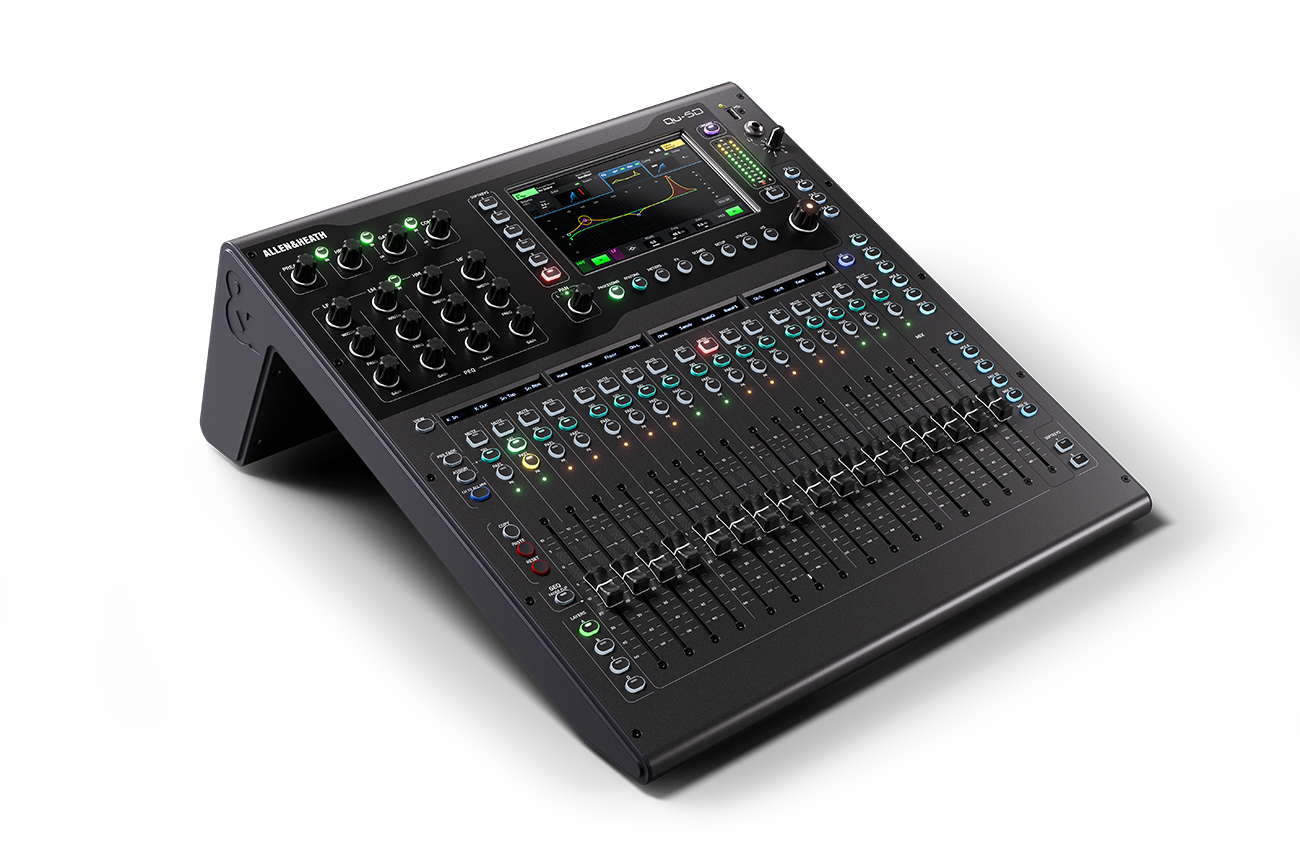

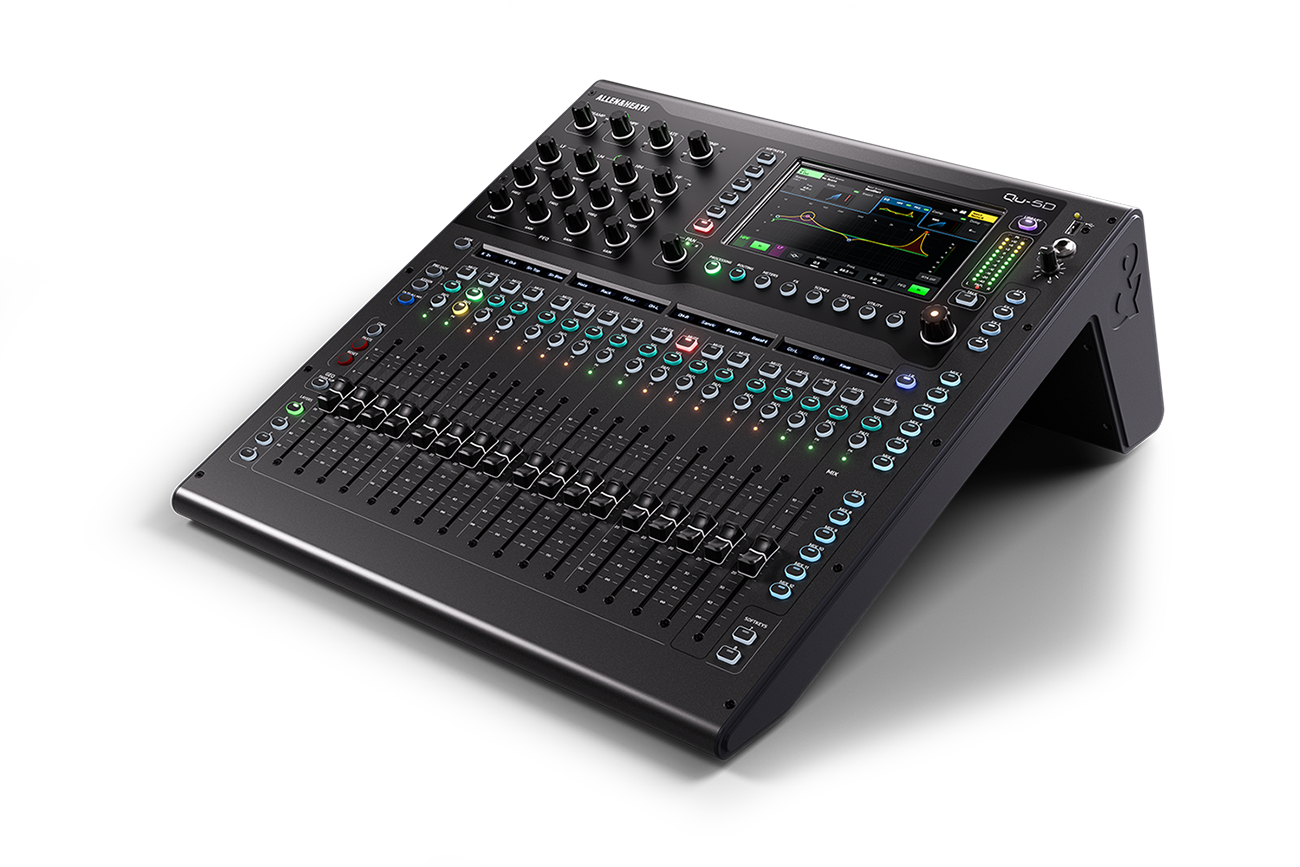

The QU-5D is Allen & Heath's compact and powerful digital mixing console, featuring a professional Dante interface to meet the demands of modern production environments.

QU-5D highlights

96 kHz XCVI processor and DEEP processing for ultra-low-latency studio audio quality.
Integrated 16x16 Dante interface for advanced, secure audio network integration.
17 motorized faders, individual channel display and 7" touchscreen for intuitive control.
Intelligent assistance tools: Gain Assistant, Feedback Assistant, 32-channel AMM.
Modular connectivity with SLink, USB-C, SD and USB-A multichannel recording.

QU-5D Key Features

DEEP audio processing with the XCVI processor

Thanks to the 96 kHz XCVI processor, the QU-5D features DEEP processing for professional mixing flexibility. Studio-quality compressors and EQ are available on every channel, with no added latency.

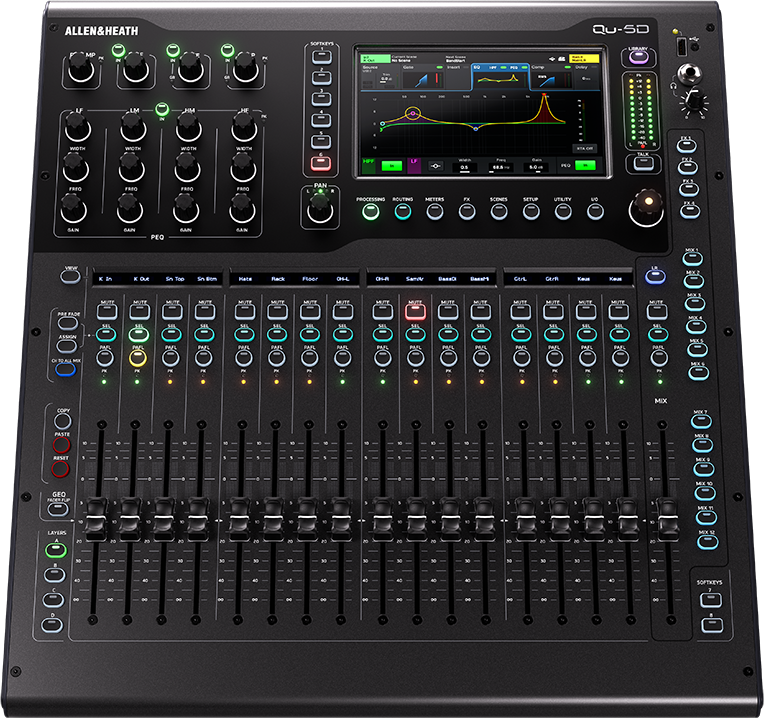

Touchscreen interface & motorized faders

The ergonomic design combines 17 motorized 100 mm faders, a 7" touchscreen and channel-by-track display, for smooth, responsive mixing, even live.

Intelligent assisted mixing

Gain Assistant and Feedback Assistant simplify settings for optimum sound. The 32-channel Automatic Microphone Mixer (AMM) enables efficient management of conferences or broadcasts, without latency.

Integrated Dante connectivity

The QU-5D features a 16x16 Dante interface at 48 or 96 kHz via a secure EtherCon port, facilitating integration into professional network infrastructures without the need for additional external hardware.

Optimized workflow and customization

4 customizable layers, assignable SoftKeys and flexible routing allow the QU-5D to be adapted to any workflow, from live to fixed installations.

Remote recording & control

32x32 recording via USB-C, 32-track SD card, and USB-A stereo playback. Qu-MixPad and Qu4You apps offer remote control on Windows, Mac, Android and iOS, for smooth in-theater management.

Expert advice

Complete, forward-looking console with native Dante integration.
Intuitive design combined with high-end audio capabilities in a compact format.

Technical sheet

Number of channel mixing desk 10 to 22 channels
Number of channels 16 channels

Slice name display
- Yes
ME Personal Mixer compatible
- Yes
Color
- Black
Dimensions
- 440 x 476 x 213 mm
Integrated LED lighting
- No
USB stereo recording/playback
- Yes
Signal generator
- Yes
Weight
- 10 kg
RTA
- Yes
Cooling
- Active
Talkback
- Yes
Type
- Digital

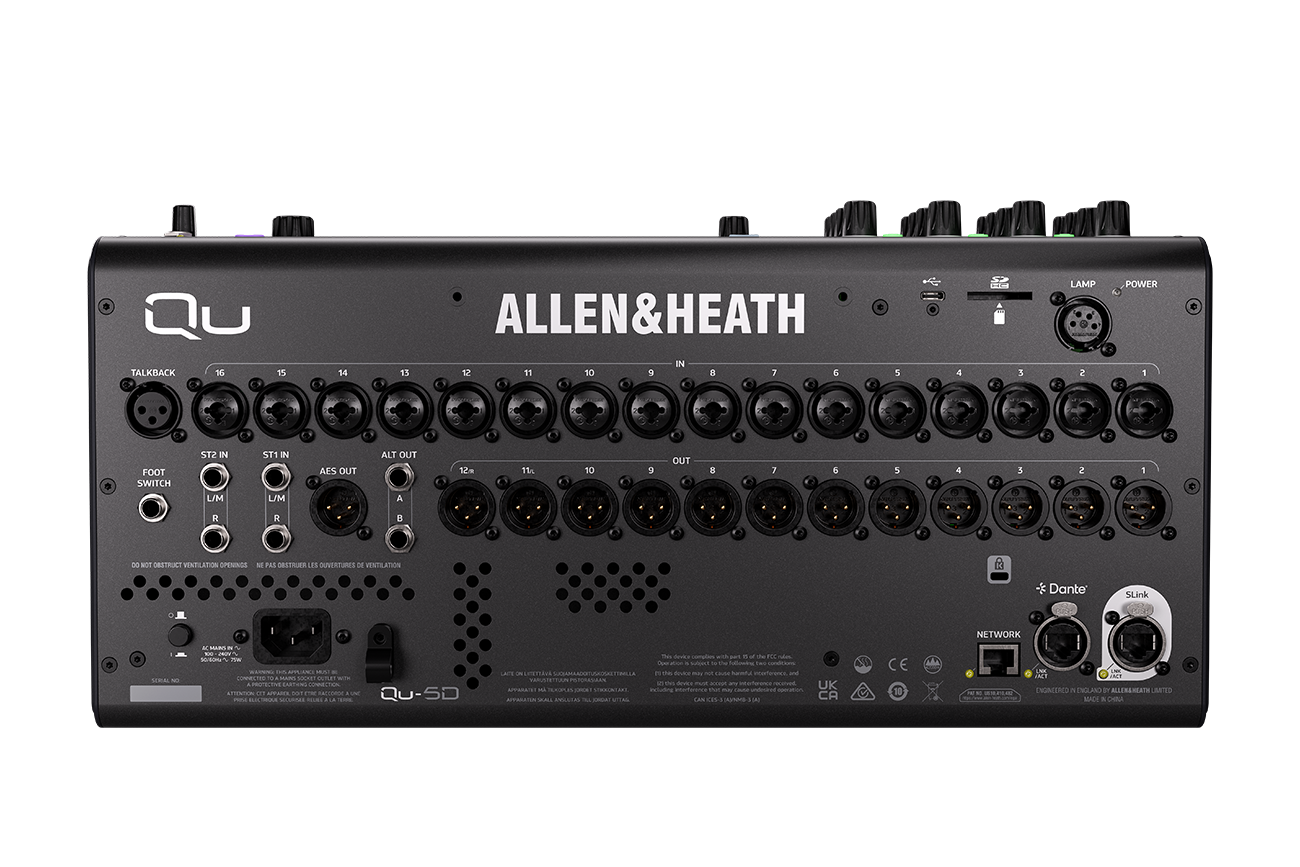

Additional specifications
- XCVI 96kHz processor
- 36 inputs (32 Mono/Linkable, 2 Stereo)
- Stereo main LR output
- 12 Mixes (6 Mono/Linkable Aux, 6 Stereo Aux/Group)
- 2 Stereo Matrix
- 16 XLR/Jack "Combo" mic/line inputs
- 2 TRS stereo line inputs
- 1 Talkback
- 12 XLR outputs
- 2 TRS outputs
- 1 AES3 stereo digital output
- 128x128 intelligent SLink I/O port
- Dante 16x16 48/96 kHz interface
- Stereo headphone output
- 6 Multi-FX engines with dedicated send and return channels
- 7-inch touchscreen
- 17 motorized 100 mm faders
- 4 channel layers
- 8 SoftKeys
- USB-A for stereo audio recording/playback and data transfer
- USB-C audio interface for multichannel recording/playback (32x32)
- SD card slot for multichannel audio recording/playback (16x16@96kHz, 32x32@48kHz)
- 12V lamp socket
- Configurable connection for single/double footswitch
- Configurable chromatic channel measurement LED
- 19" rack mounting (optional kit available)
- IEC mains connection with international power supply
- RJ45 network socket
- Remote control via free Qu-MixPad and Qu4You applications (Windows, MacOS, iOS, Android)
