Antelope audio Discrete 8 Edge & Verge Bundle

  • Read reviews (1)
  • Related accessories
  • Antelope Audio Discrete 8 Edge & Verge Bundle - Home Studio Set - Main picture
  • Antelope Audio Discrete 8 Edge & Verge Bundle - Home Studio Set - Variation 1
  • Antelope Audio Discrete 8 Edge & Verge Bundle - Home Studio Set - Variation 2
  • Antelope Audio Discrete 8 Edge & Verge Bundle - Home Studio Set - Variation 3
  • Antelope Audio Discrete 8 Edge & Verge Bundle - Home Studio Set - Variation 4
VIDEO
VIDEO
This article is no longer available for sale.
Unavailable
contact us
Stock in store
Not available in store

The brand Antelope audio

Learn more about the Antelope audio brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Home studio set

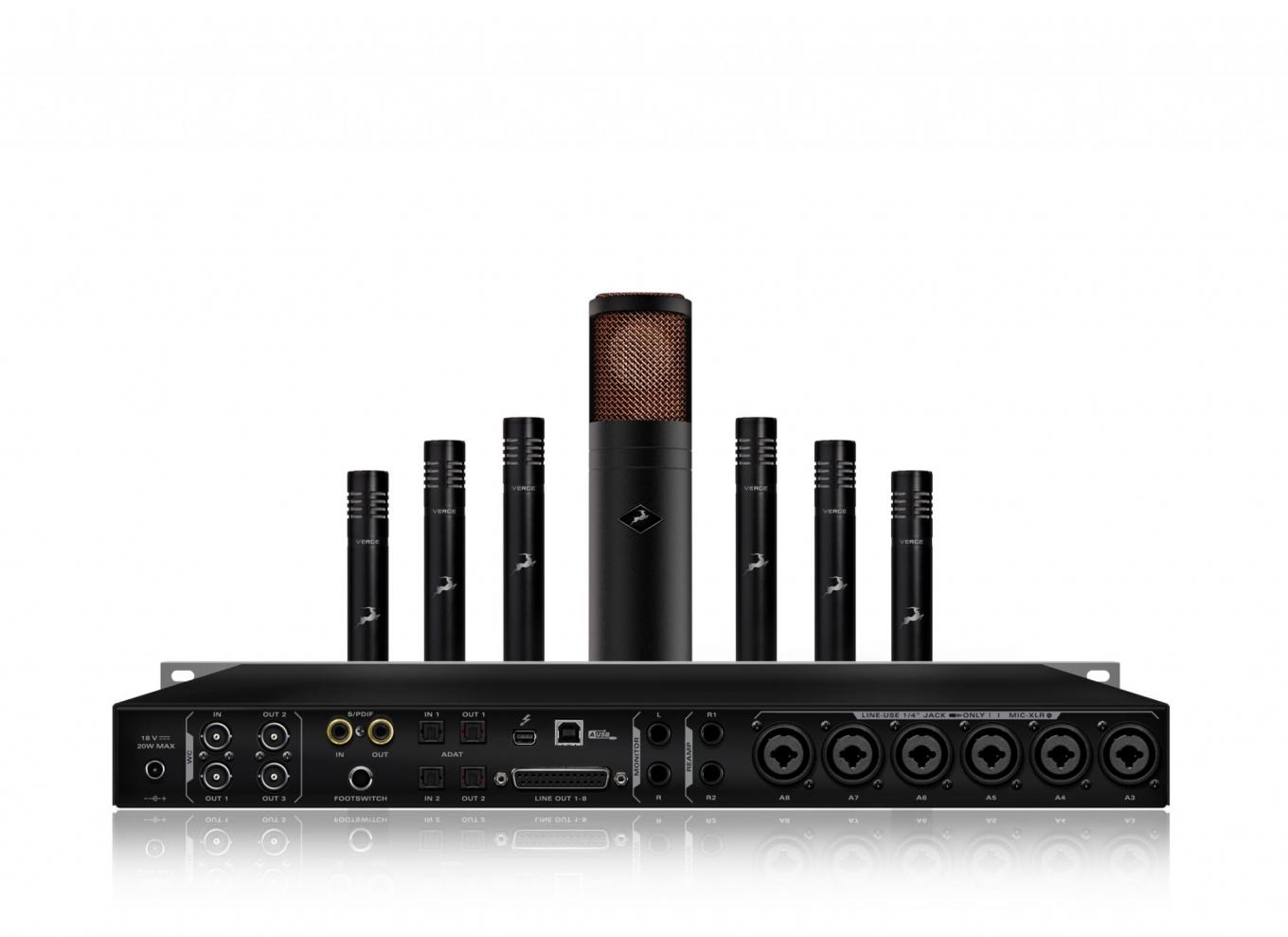

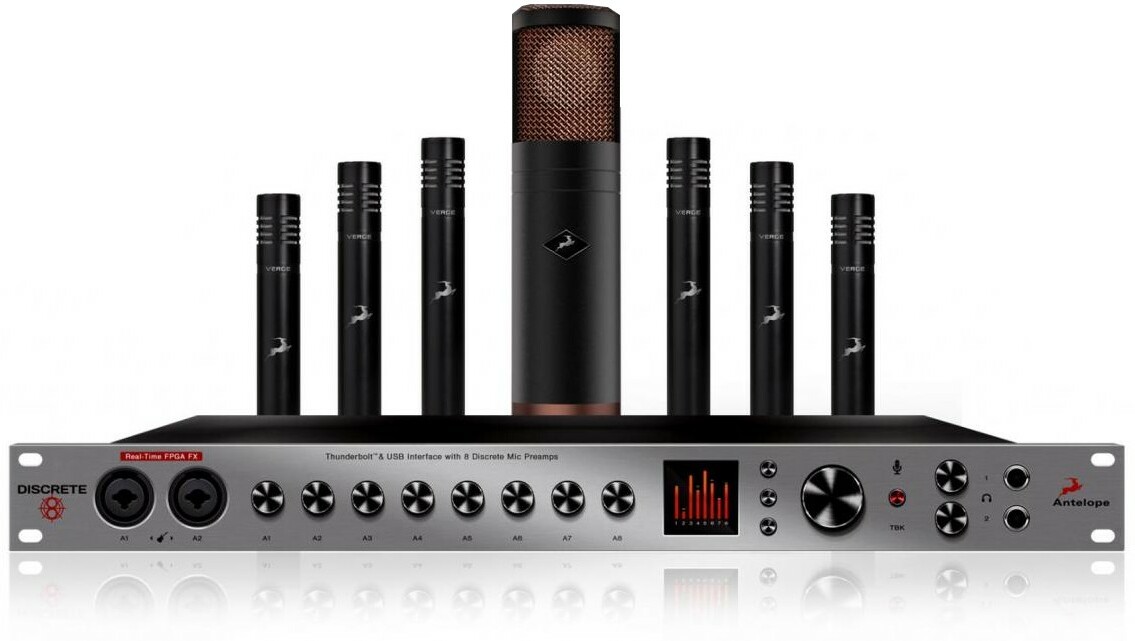

Discrete 8 + Edge & Verge Microphones Bundle
Antelope Audio’s Discrete 8 Microphone Preamp Interface brings a new level of sound quality and power to home studios and mobile recordists. It comes with 8 console grade 6-transistor discrete preamps, 121 db dynamic range conversion and rock solid clocking. Discrete 8 features all of the Antelope Audio premier real-time FPGA FX, including authentic models of iconic gear from BAE, Lang, Gyraf Audio and many more.
Edge and Verge are modeling microphones by Antelope Audio, suited for the manufacturer's real-time mic preamp modeling. Combined with the already highly acclaimed Antelope Audio FPGA Vintage Compressors & EQ’s, these new modeling microphones will comprise a true cutting edge front end that will usher in a new era for modern recording.

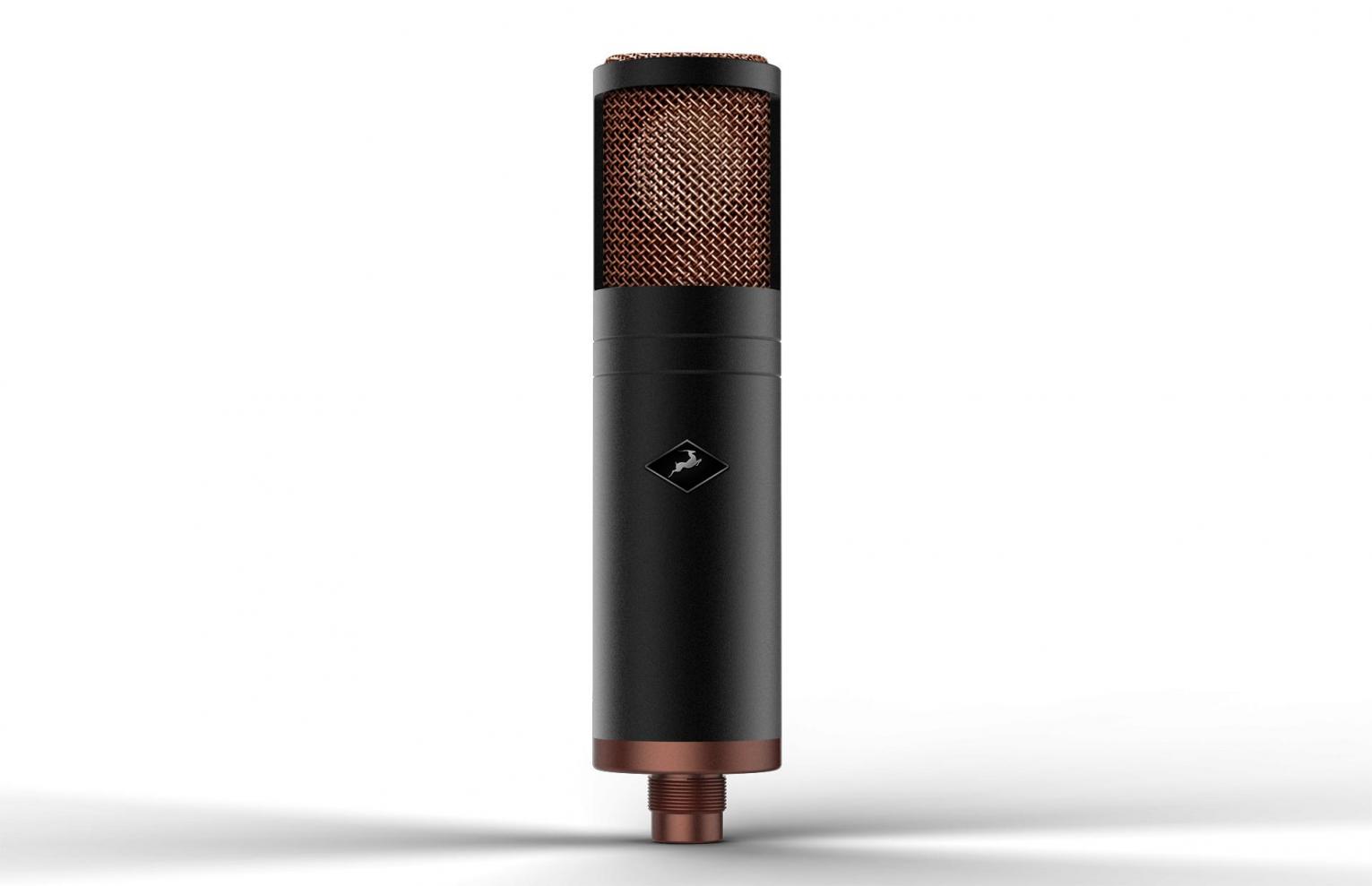

Edge features dual edge-terminated capsules for a smooth/natural sound reproducing the expressiveness and character of expensive classic microphones. Antelope founder Igor Levin designed groundbreaking fully discrete electronics. Hand selected capsules encased in a carefully crafted enclosure with contours and shape for optimal sonic performance. Edge is an exquisite large diaphragm microphone with excellent transient response and capable of multiple polar patterns.

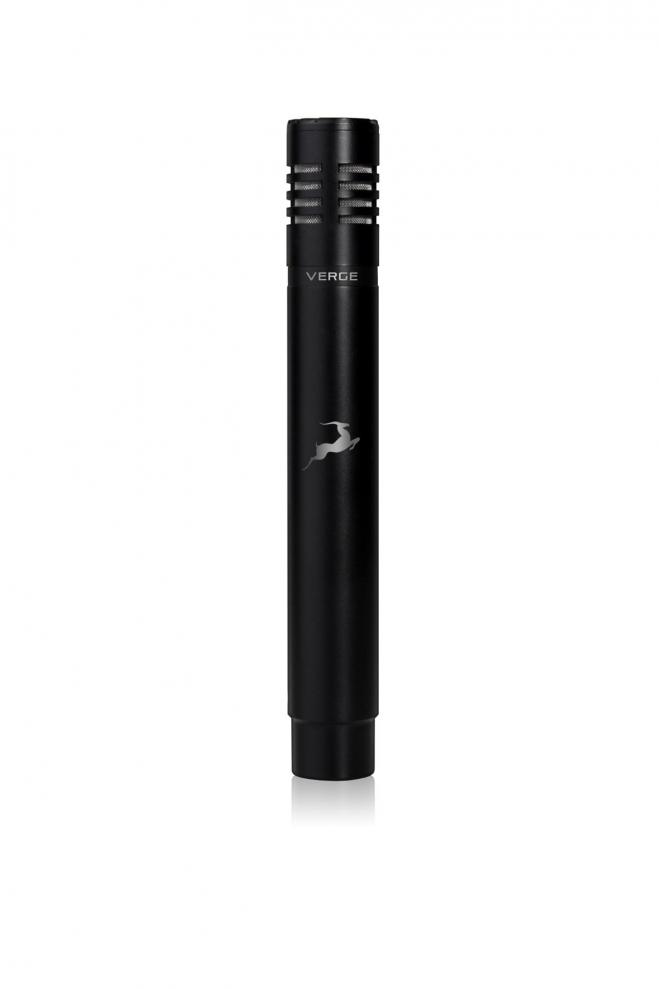

Verge is a small diaphragm modeling microphone suited for both nuanced accuracy and high SPL recording. Also exhibiting excellent performance on it’s own, it can take on the character and personality of the world’s best small diaphragm condensers and electrets.
Premium FX pack

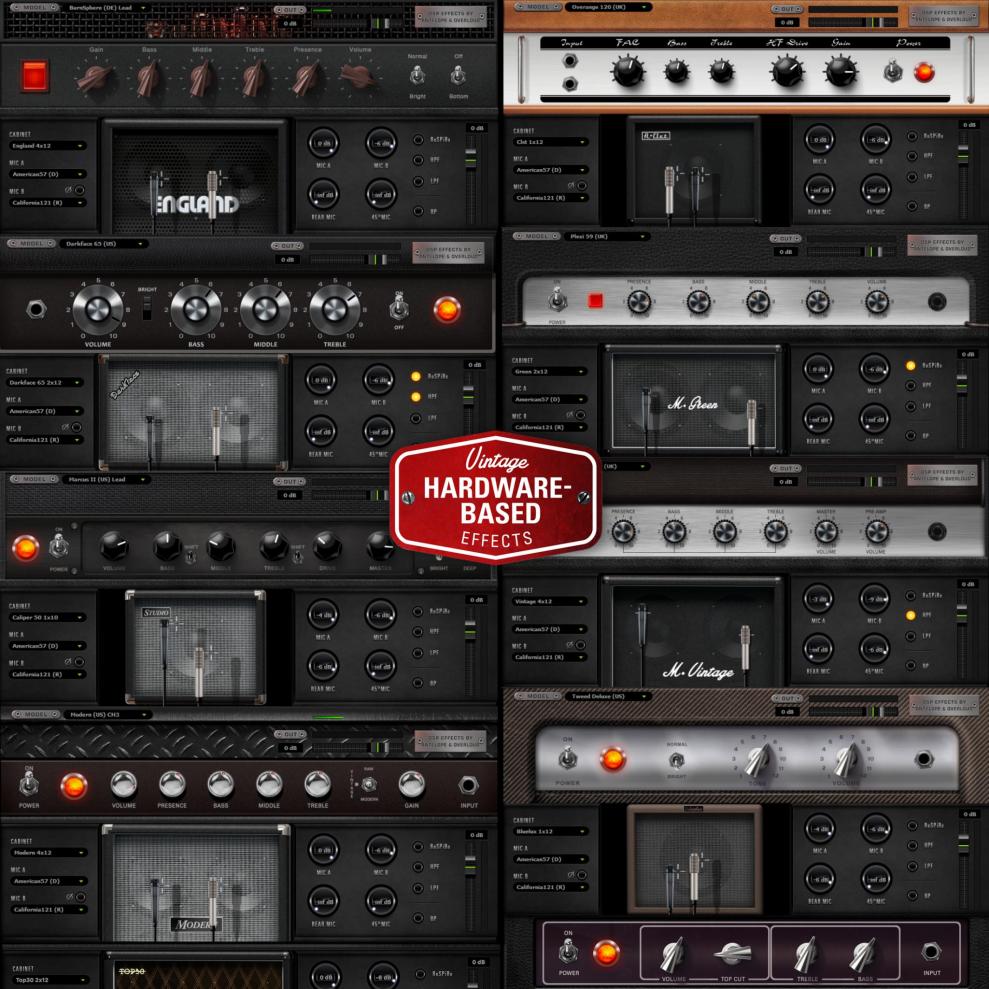

The Premium FX pack that comes with this bundle allows you to employ the full studio power of the Antelope Audio real-time FPGA FX. The collection features authentic models of iconic studio units from BAE, Gyraf Audio, LANG and FET. With the Premium FX pack you can use 16 instances of each EQ, Compressor and AuraVerb; plus 4 instances of each guitar amp & cabinet models available. This Premium library features 50+ Antelope Audio real-time FPGA FX.
Inside the Discrete 8 FPGA Accusonic 3D modeling engine you can transform both Edge and Verge into vintage replicas giving you complete control over proximity effect, off-axis response and even allow you to change polar patterns during or after recording. Choose from a collection of classic and expensive microphones and track the results as you monitor live, bringing out a musician’s best possible performance.
Lire la suite

Technical sheet

  • Edge
  • Diaphragm: Condenser
  • (Double sided with 10 microns gold sputtered membranes)
  • Freq. response: 20HZ ~ 20KHZ
  • Sensitivity: -36dB (-1 to +3dB)
  • THD+N: -116dB
  • Power Requirements: 48V DC Phantom Power
  • Verge
  • Diaphragm: Condenser
  • (back electret type)
  • Freq. response: 40Hz ~20kHz
  • Sensitivity: -40dB (+/-3dB)
  • Max input SPL: 132dB
  • Power Requirements: 48V DC Phantom Power
  • Discrete 8
  • ANALOG
  • Analog Inputs
  • 6 x Mic / Line Inputs
  • 2 x Mic / Line / Hi-Z Inputs
  • Analog Outputs
  • 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
  • 1 x ReAmp Out on TRS 1/4 Jacks
  • 1 x Line Outs on DB25, +20 dBu max
  • 2 x Stereo Headphone Outputs
  • Mic Preamp
  • EIN: -128 dBu (A-weighted)
  • Dynamic Range: -121 dB (A-weighted)
  • THD: -106 dB
  • Max input: +18 dBu
  • Gain Range: 65 dB
  • D/A Monitor Converter
  • Dynamic Range: 124 dB
  • THD + N: -101 dB
  • A/D Converter
  • Dynamic Range: 121 dB
  • THD + N: -112 dB
  • D/A Converters(Line Out)
  • Dynamic Range: 121dB
  • THD + N: – 100dB
  • DIGITAL
  • Digital Inputs
  • 2 x ADAT (up to 16CH)
  • 1 x S/PDIF
  • Digital Outputs
  • 2 x ADAT (up to 16CH)
  • 1 x S/PDIF
  • USB I/O
  • USB 2.0 Hi-Speed;
  • Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
  • Thunderbolt™ I/O
  • 1 x Thunderbolt, 32 channels I/O
  • CLOCKING
  • Word Clock Input
  • 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
  • Word Clock Outputs
  • 3 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
  • Clocking System
  • 4th Generation Acoustically Focused Clocking
  • 64-bit DDS
  • Sample Rates (kHz)
  • 32, 44.1, 48, 88.2, 96, 176.4, 192
  • Other
  • Operating Temperature
  • 0-50°C, 32-122°F
  • Weight (Approx)
  • 3.0 kg/ 6.61 lbs
  • Dimensions (Approx)
  • Width: 483 mm / 19”
  • Height: 44 mm / 1.7”
  • Depth: 220 mm /8.6”
  • Power Consumption
  • 20 Watts
