Asheville music tools ADG-1 Analog Delay
- Read reviews (0)
- Related accessories
- Similar products
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 2 years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
The brand Asheville music tools
Learn more about the Asheville music tools brand and discover the entire catalog.
Guitar and bass effects shopping guide
How to find the processor(s) that correspond to your needs and expectations amongst the hundreds of references currently available?
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Reverb, delay & echo effect pedal

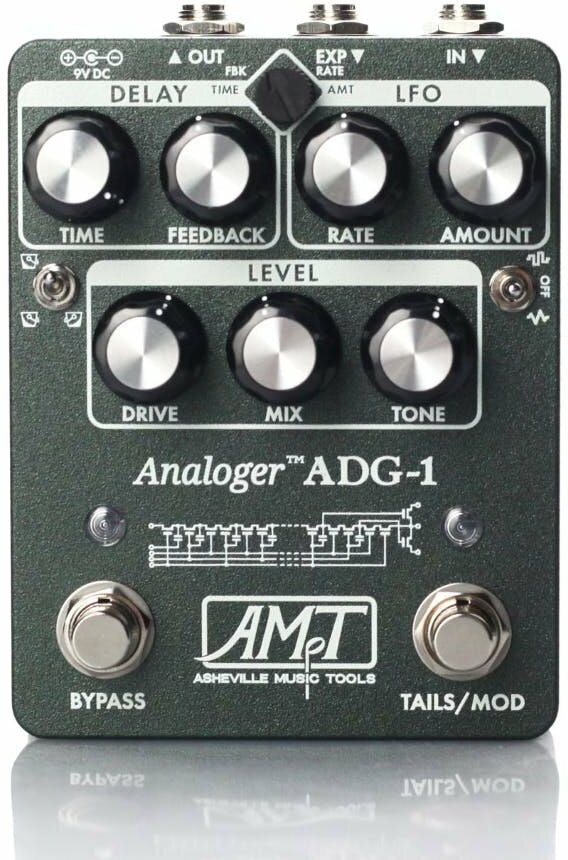

The ADG-1 Analog Delay is a pedal offered by the Asheville Music Tools brand.
The ADG-1 is an exceptional analog delay pedal, equipped with an extensive set of controls never before seen for a pedal of this size. Rick "Hawker" Shaich's latest legacy in the popular delay design, the ADG-1 incorporates a pair of Xvive high-voltage BBDs, delivering up to 700ms of harmonic-rich, perfectly smooth echoes. Whether for vibrant country slapbacks, dotted leads or modulated psychedelic odysseys, the AMT ADG-1 establishes itself as the new benchmark for compact analog delays.
The ADG-1 is an exceptional analog delay pedal, equipped with an extensive set of controls never before seen for a pedal of this size. Rick "Hawker" Shaich's latest legacy in the popular delay design, the ADG-1 incorporates a pair of Xvive high-voltage BBDs, delivering up to 700ms of harmonic-rich, perfectly smooth echoes. Whether for vibrant country slapbacks, dotted leads or modulated psychedelic odysseys, the AMT ADG-1 establishes itself as the new benchmark for compact analog delays.
Technical sheet
- 100% analog signal path
- True switchable bypass or JFET buffered bypass with switchable tracks
- Expression/CV input assignable to time, feedback, modulation amount, or modulation rate (CV range is 0 to 5 V)
- Current supplied by the ring limited to 5 V
- Genuine Hammond die-cast aluminum housing
- Input impedance: > 1 MΩ
- Output impedance: 1 KΩ maximum
- Maximum input level: +15 dBu (4.3 V RMS)
- Maximum output level: +14 dBu (3.9 V RMS)
- Maximum Drive: > 22 dB (covers attenuation at gain)
- Noise reduction: 2:1 broadband with 12 dB RF boost
- Power: 9 V DC at <150 mA (85 mA nominal, up to 250 mA at startup.)
- Dimensions (D x W x H): 4.90" (12.5 cm) x 3.70" (9.4 cm) x 2.25" (5.8 cm)
- Weight: 15 oz (0.425 kg)
