Connector adapter

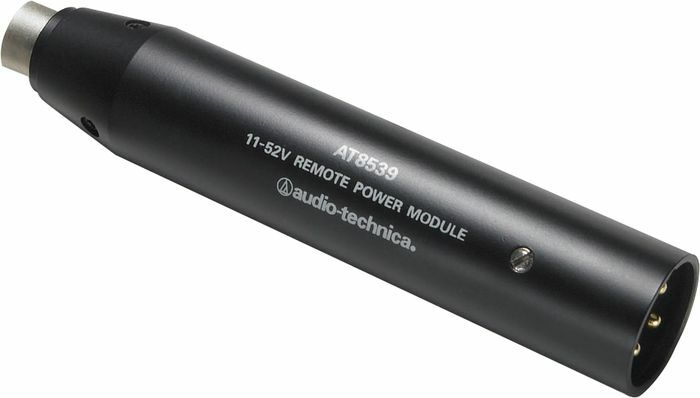

The AT8539 power module allows any Audio-Technica Wireless Essentials microphone to operate as a wired microphone. The power module’s HRS-type 4-pin input connector mates with any Audio-Technica Wireless Essentials (wireless microphone with model number ending in a cW); its output is a standard 3-pin XLRM-type connector.
It offers a low-cut flter to help minimize the pickup of unwanted low frequencies. To engage the low-cut flter, use the end tip of a paperclip or other small pointed instrument to slide the switch toward the “bent” line. The power module is constructed of rugged steel for maximum durability and optimum shielding from hum. A snap-on belt clip is included.
It offers a low-cut flter to help minimize the pickup of unwanted low frequencies. To engage the low-cut flter, use the end tip of a paperclip or other small pointed instrument to slide the switch toward the “bent” line. The power module is constructed of rugged steel for maximum durability and optimum shielding from hum. A snap-on belt clip is included.
Lire la suite
Technical sheet
- Type of connection cable 1 XLR male
- Input/Output connectors: HRS-type 4-pin / XLRM-type
- Frequency response: Microphone dependent
- Impedance: 250 ohms
- Low-cut flter: 80 Hz, 18 dB/octave
- Phantom power: 11-52V DC, 2 mA typical
- Switch: Flat / Roll-off
- Dimensions: 97.6 mm (3.84") long, 18.9 mm (0.74") diameter
- Accessory included Belt clip
