Black lion audio B12a Quad

Name: B12a Quad
Brand: Black lion audio
SKU: 115845
Availability: OutOfStock

1399,00 €

Not available at this moment

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

The brand Black lion audio

Learn more about the Black lion audio brand and discover the entire catalog.

Discover

Find all the information on our superstores and our specialized boutiques.

find out more

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

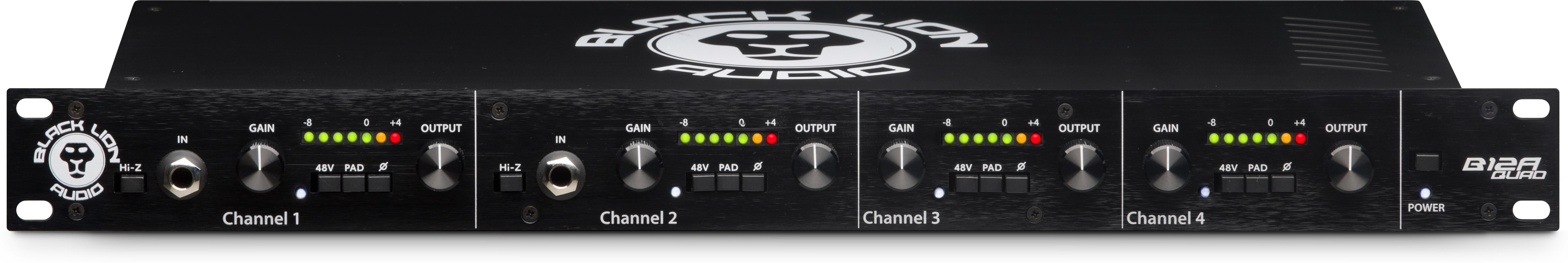

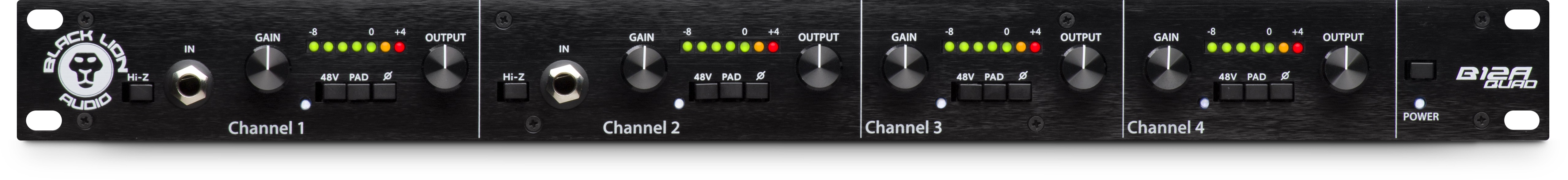

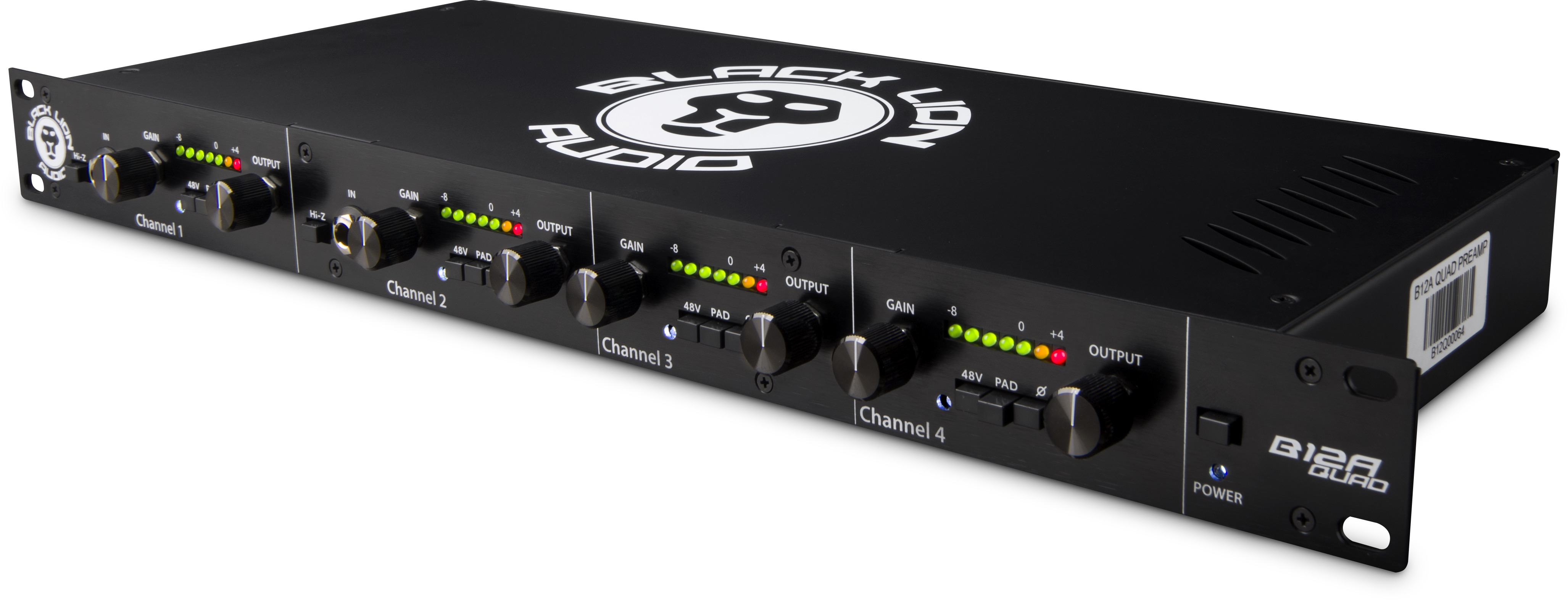

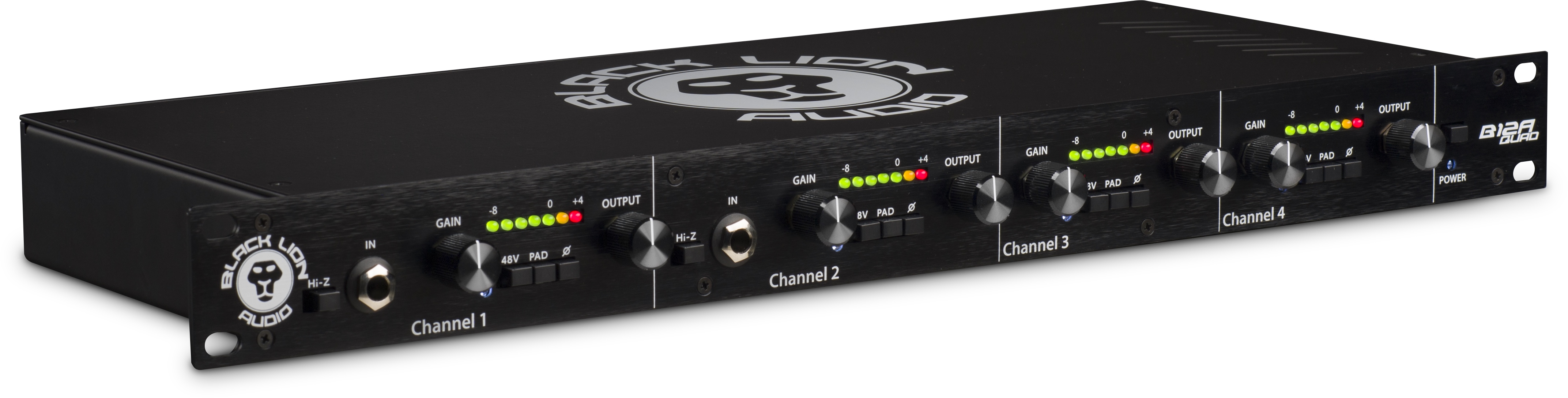

The Black Lion Audio B12A Quad is a 4-channel preamp offering all the power of the legendary American 312A sound.

Powerful 312A gain for classic, punchy sound.
Cinemag transformers on input and output for optimum sound quality.
Front-panel D.I. inputs (channels 1 and 2) for connecting guitars, keyboards and synthesizers.
Notched gain for precise setting recall.
48V phantom power, -18 dB attenuator and phase inversion for maximum flexibility.
Compact, portable half-rack format, ideal for studio and stage.

Inspired by the classic 312A preamp, the B12A Quad offers incomparable warmth and dynamics to capture every nuance of your performance.

Cinemag input and output transformers guarantee faithful, rich and precise sound reproduction.

Channels 1 and 2 feature D.I. inputs for direct connection of guitars, synthesizers and other instruments, for powerful, clear sound.

With its notched gain and multiple options (-18 dB attenuator, phantom power, phase inversion), this preamp adapts to any situation.

Its half-rack format makes it ideal for mobile studios and demanding setups.

Design
- Classic design inspired by the 312A preamp, offering up to 70 dB of gain
Versatility
- Ideal for recording vocals, drums, guitar and other instruments
Circuitry
- Ultra-low noise for detailed sound reproduction
Transformers
- Cinemag input and output transformers for optimum audio quality
DI inputs
- inputs on channels 1 and 2
Features per channel
- Switchable 48V phantom power
- Phase inversion
- 18 dB attenuator (microphone input)
Audio features
- Max. input level :
- Microphone: +1 dBu
- DI: +18 dBu
- Frequency response: 10 Hz - 30 kHz
- Gain :
- Microphone: 26 to 70 dB
- DI: +10 to 53 dB
- Harmonic distortion (THD+N):
- Mic: 0.01
- DI: 0.115% (+36 dB Gain, +4 dBu output)
- Equivalent noise level:
- Mic: -120 dBu
- DI: -94 dBu
- Input impedance:
- Microphone: 200 Ω
- DI: 1.1 MΩ (unbalanced)
- Max. output level: +26 dBu
- Output impedance: 600 Ω

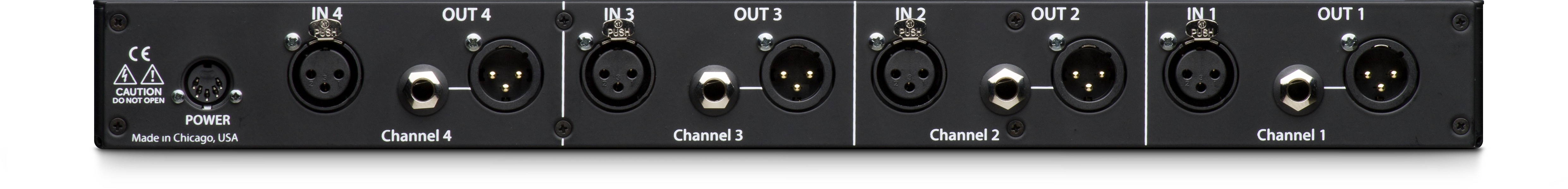

Connections
- 4 XLR inputs (balanced)
- 2 x 6.3 mm jack inputs (unbalanced)
- 4 XLR and jack outputs (balanced)
Other features
- External power supply
- Dimensions: 482 x 176 x 45 mm
- Weight: 4.5 kg
