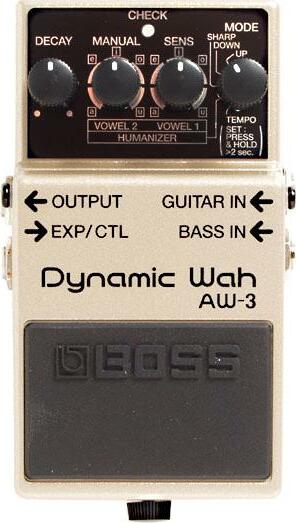

The BOSS AW-3 Dynamic Wah pedal gives guitarists a wide range of classic auto-wah and dynamic wah effects, plus a new "Humanizer" effect which can simulate human vowel sounds. A Bass input provides a variety of funky wah sounds for bass guitar.
Characteristics
Ref : 1411
- Nominal Input Level : -20 dBu
- Input Impedance : 1 M ohms
- Nominal Output Level : -20 dBu
- Output Impedance : 1 k ohms
- Recommended Load Impedance : 10 k ohms or greater
- Residual Noise Level : -92 dBu (IHF-A, Typ.)
- Connectors : GUITAR IN Jack, BASS IN Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
- Power Supply : DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
- Current Draw : 50 mA (DC 9 V)
- Accessories : Dry Battery 9 V type (6F22/9 V)
- Options : AC Adaptor (PSA-Series), Expression Pedal (Roland EV-5), Footswitch (FS-5U)
Size and Weight (incl. battery )
- Width : 73 mm / 2-7/8 inches
- Depth : 129 mm / 5-1/8 inches
- Height : 59 mm / 2-3/8 inches
- Weight : 420 g/0 lbs. 15 oz.
* 0 dBu = 0.775 Vrms
