Reverb, delay & echo effect pedal

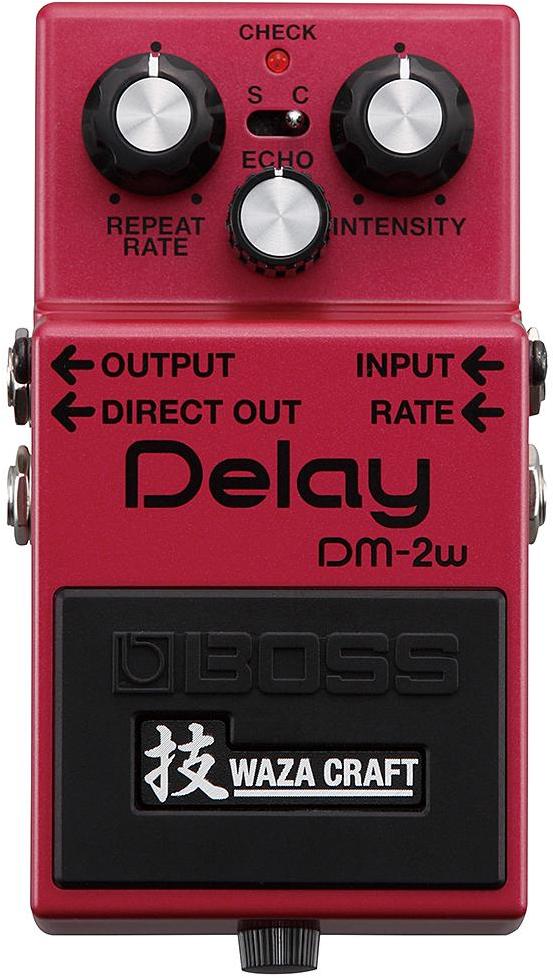

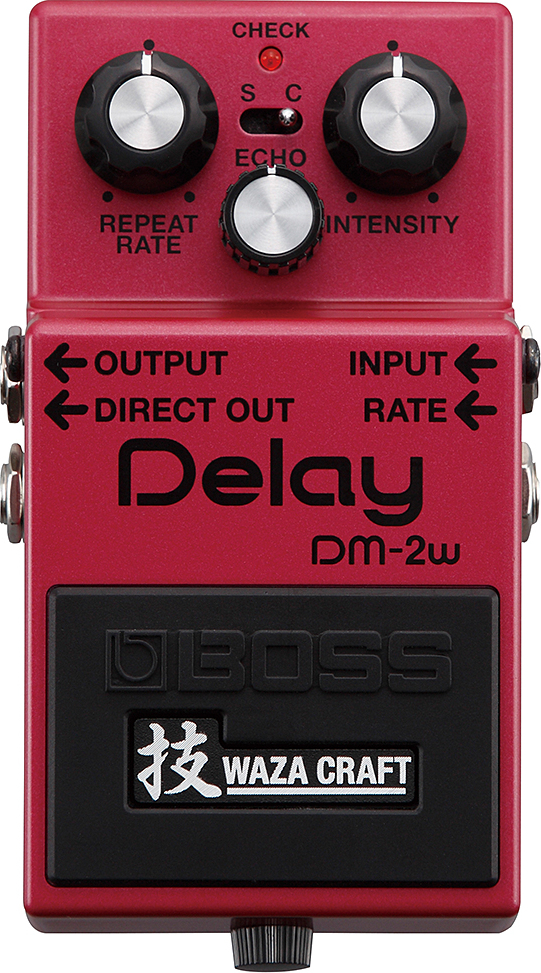

Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm, “bucket brigade” analog delay tone and now, the DM is back with the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today’s music styles.
Using 100-percent analog circuitry, the DM-2W’s Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.
Using 100-percent analog circuitry, the DM-2W’s Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.
Lire la suite
Technical sheet
- Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Delay Time
- Standard Mode: 20 ms to 300 ms
- Custom Mode: 40 ms to 800 ms
- Controls:
- Pedal switch
- REPEAT RATE knob
- INTENSITY knob
- ECHO knob
- Mode switch
- Indicator: CHECK indicator (Serves also as battery check indicator)
- Connectors:
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DIRECT OUT jack: 1/4-inch phone type
- RATE jack: 1/4-inch TRS phone type
- DC IN jack
- Power Supply:
- - Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
- - AC adaptor (PSA series: sold separately)
- Current Draw: 35 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 15 hours
- Carbon: Approx. 5 hours
- Accessories:
- Owner's manual
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Alkaline battery (9 V, 6LR61)
- Options (sold separately):
- AC adaptor: PSA series
- Expression pedal: Roland EV-5
- Size and Weight:
- Width:
- 73 mm
- 2-7/8 inches
- Depth:
- 129 mm
- 5-1/8 inches
- Height:
- 59 mm
- 2-3/8 inches
- Weight:
- 460 g
- 1 lbs. 1 oz.
