Guitar amp modeling simulation
No matter what style you play, it’s easy to craft your own personal sound with the BOSS ME-80’s wide range of built-in effects. A complete history of gig-ready BOSS tone processing is at your command, from multiple overdrives and distortions to wahs, mod effects, pitch shifters, delays, and beyond. BOSS’ groundbreaking Multi Dimensional Processing (MDP) technology is represented with the unique, spacious ambience of Tera Echo and the distinctive tone-shaping possibilities of Overtone. The ME-80 offers easy usability while performing, with eight multifunction footswitches for direct control of effects on/off, bank/patch selection, and mode switching, plus convenient access to alternate functions such as tap tempo, tuner, looper control, and more.
Lire la suite
Technical sheet
- Technology Transistors
- AD Conversion:
- 24 bits + AF method
- AF method (Adaptive Focus method)
- * This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
- DA Conversion: 24 bits
- Sampling Frequency: 44.1 kHz
- Patches: 36 (User) + 36 (Preset)
- Pedals:
- Pedal switch x 8
- Expression pedal x 1
- Nominal Input Level:
- GUITAR INPUT: -10 dBu
- AUX IN: -20 dBu
- Input Impedance:
- GUITAR INPUT: 1 M ohm
- AUX IN: 27 k ohms
- Nominal Output Level:
- Gt. AMP OUTPUT L/MONO, R: -10 dBu
- REC OUT/PHONES: -10 dBu
- Output Impedance
- Gt. AMP OUTPUT L/MONO, R: 2 k ohms
- REC OUT/PHONES: 44 ohms
- Recommended Load Impedance
- Gt. AMP OUTPUT L/MONO, R: 10 k ohms or greater
- REC OUT/PHONES: 16 ohms or greater

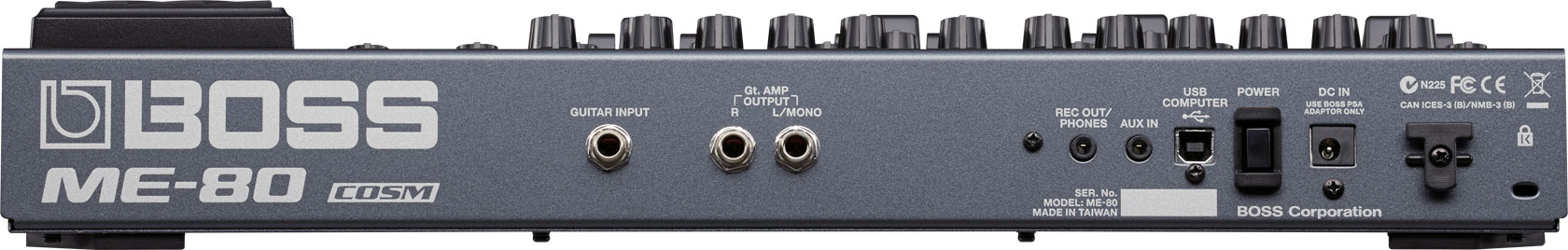

- Connectors:
- GUITAR INPUT jack: 1/4-inch phone type
- Gt. AMP OUTPUT L/MONO, R jack: 1/4-inch phone type
- REC OUT/PHONES jack: Stereo miniature phone type
- AUX IN jack: Stereo miniature phone type
- USB COMPUTER port: USB type B
- DC IN jack
- Display: 7 segments, 2 digits LED

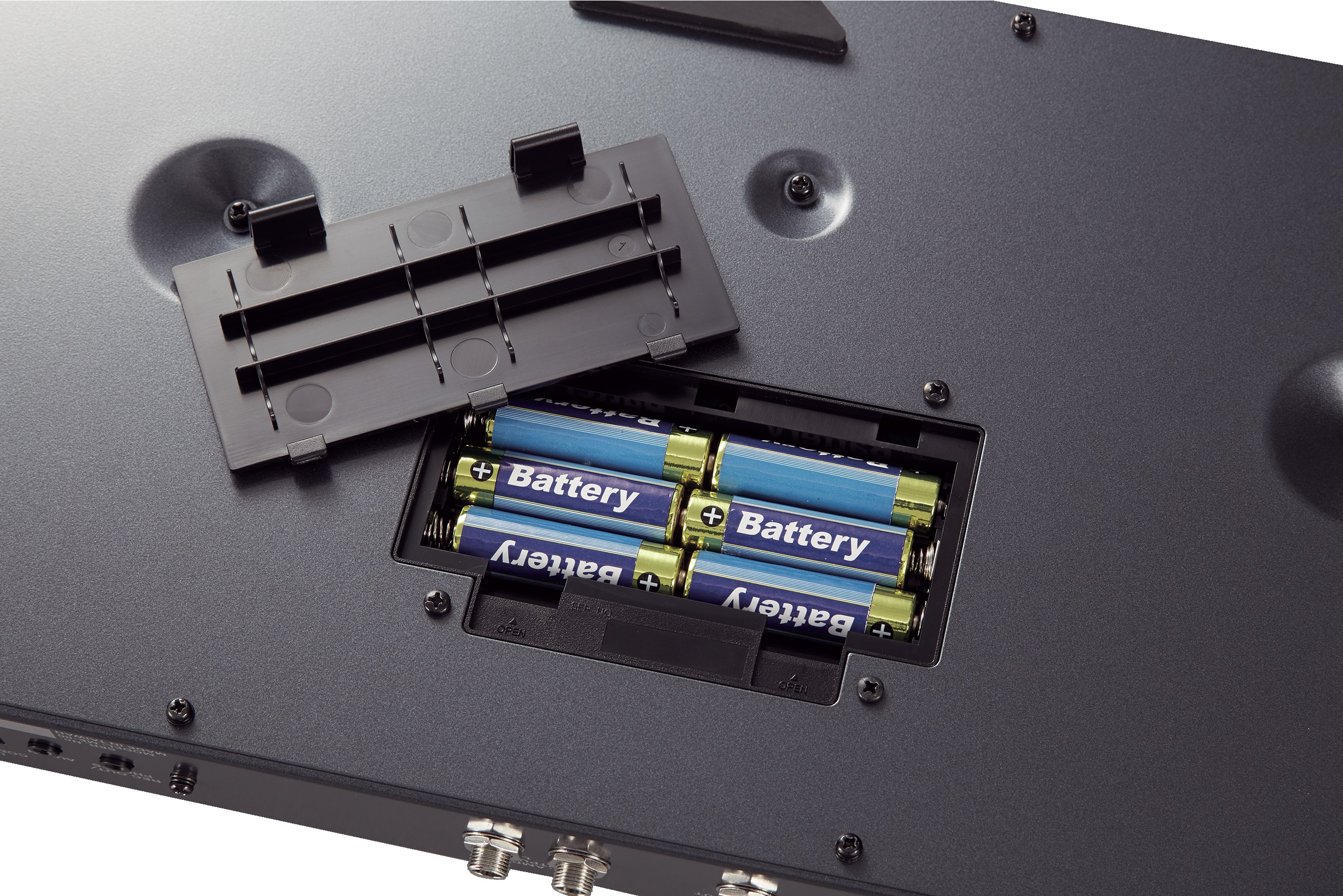

- Power Supply
- Alkaline battery (AA, LR6) x 6
- or
- Carbon-zinc battery (AA, R6) x 6
- or
- AC adaptor
- Current Draw: 200 mA
- Expected battery life under continuous use:
- Alkaline: Approx. 7 hours
- Carbon: Approx. 2 hours
- * These figures will vary depending on the actual conditions of use.
- Accessories:
- Owner's Manual
- Alkaline battery (AA, LR6) x 6
- "Read Me First" Leaflet
- Option (sold separately): AC adaptor: PSA series
- Size and Weight
- Width: 447 mm
- Depth: 231 mm
- Height: 70 mm
- Weight: 3.6 kg
- Size and Weight (Maximum height):
- Width: 447 mm
- Depth: 231 mm
- Height: 91 mm
- Weight: 3.6 kg
