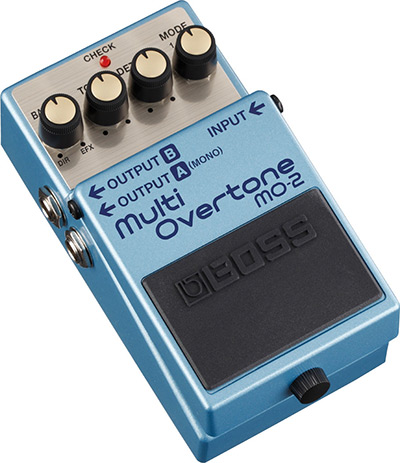

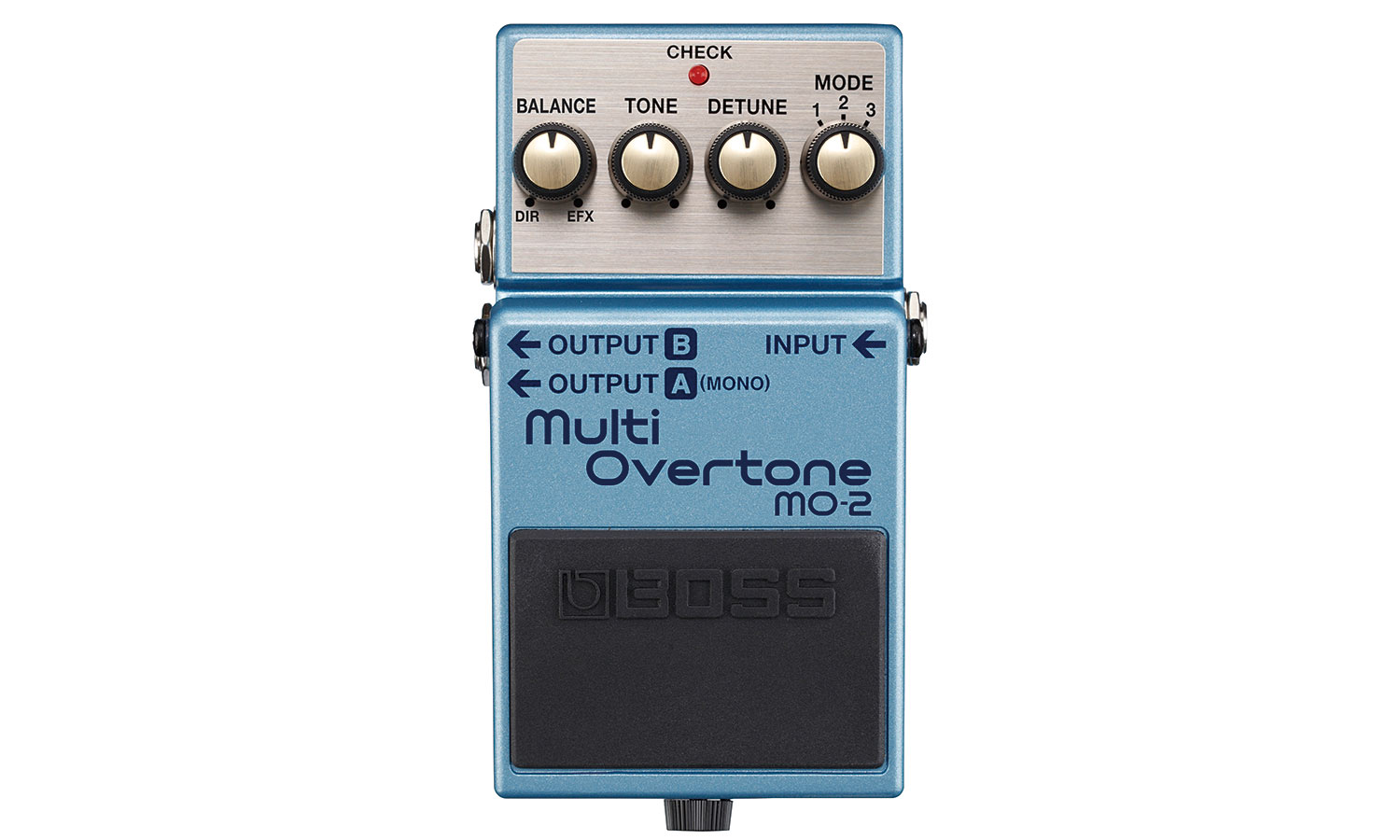

Modulation, chorus, flanger, phaser & tremolo effect pedal
The BOSS MO-2 produces incredibly distinctive and expressive tones only possible with the magic of MDP. Using your guitar’s rich harmonic characteristics as a starting point, the MO-2 builds completely new voices that enhance and thicken your normal sound.
Roland’s innovative Multi-Dimensional Processing (MDP) analyzes audio signals in many dimensions and applies ideal effects to each.
Roland’s innovative Multi-Dimensional Processing (MDP) analyzes audio signals in many dimensions and applies ideal effects to each.
Technical sheet
- Nominal Input Level: 20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: 20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Controls:
- Pedal switch
- BALANCE knob
- TONE knob
- -DETUNE knob
- MODE knob
- Indicator:
- CHECK indicator: (Serves also as battery check indicator)
- Connectors:
- INPUT jack
- OUTPUT-A (MONO) jack
- OUTPUT-B jack
- AC adaptor jack (DC 9 V)
- Power Supply:
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
- AC adaptor (sold separately)
- Current Draw: 40 mA
- * Expected battery life under continuous use
- Alkaline: Approx. 10 hours
- Carbon: Approx. 3 hours
- These figures will vary depending on the actual conditions of use.Accessories Owner's Manual
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
- Alkaline battery (9V, 6LR61)Option (sold separately) AC adaptor (PSA series)
- Size and Weight ?including battery ?:
- Width: (W)73 mm2-7/8 inches
- Depth: (D)129 mm5-1/8 inches
- Height: (H)59 mm2-3/8 inches
- Weight: 430 g1 lbs.
