Haze machine

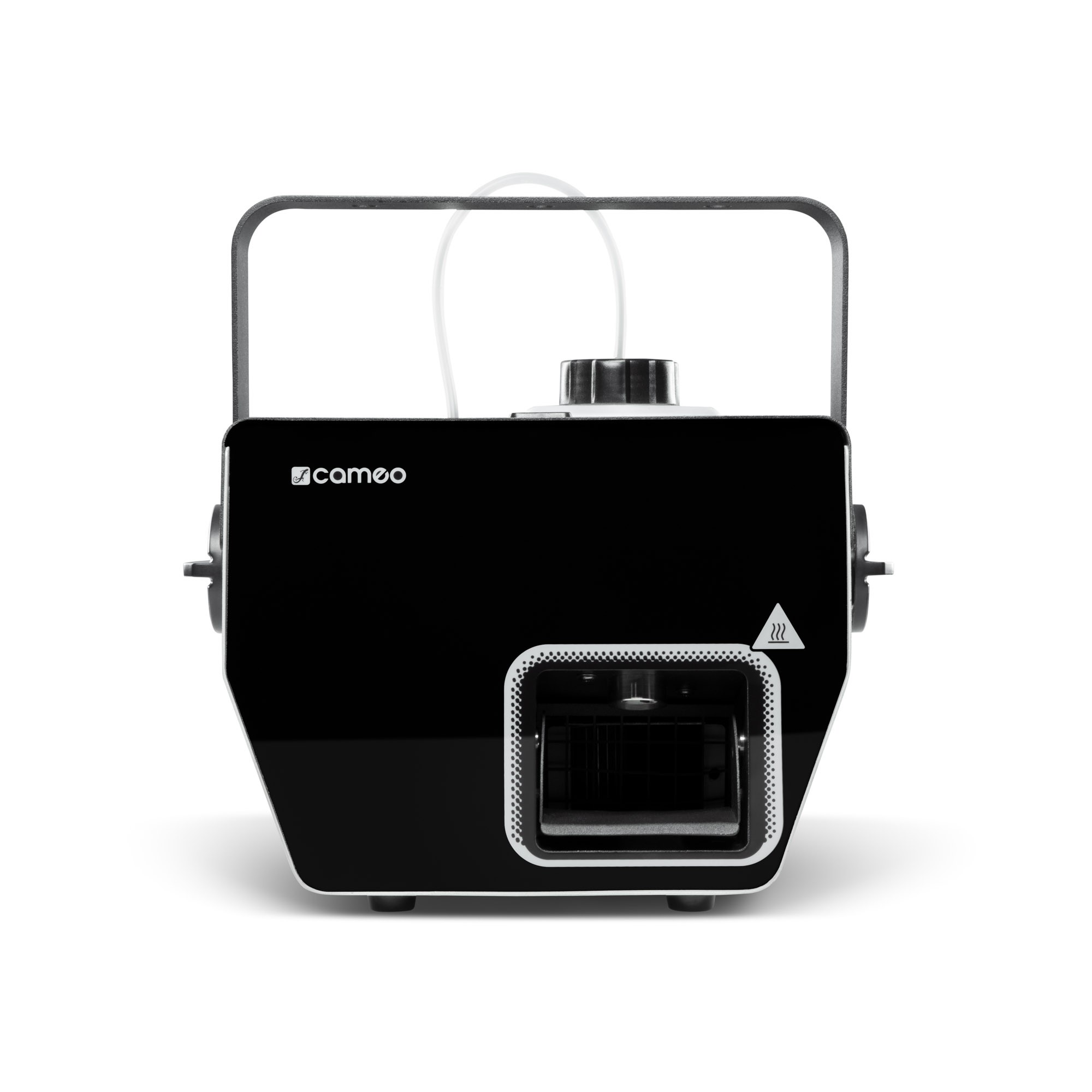

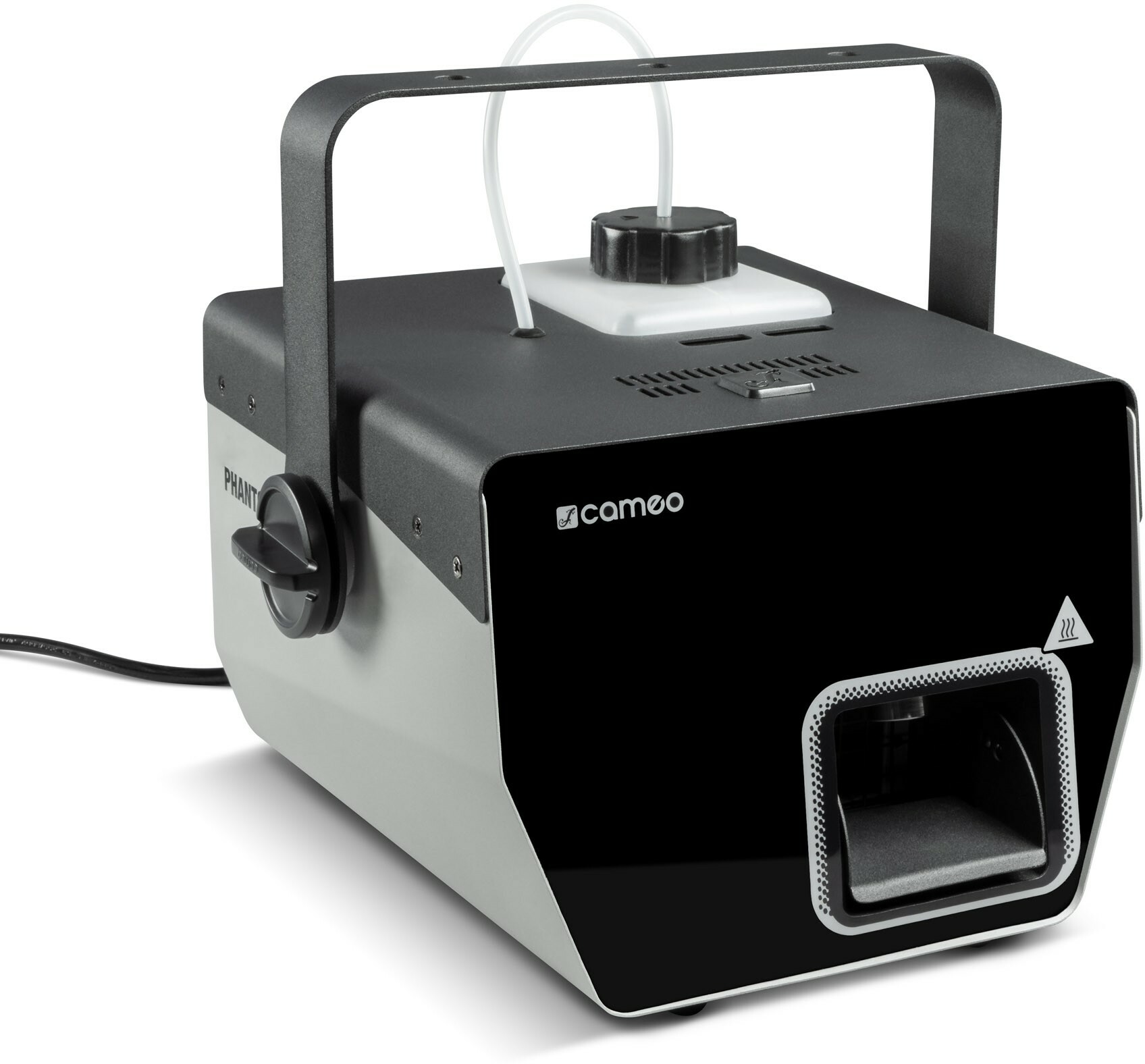

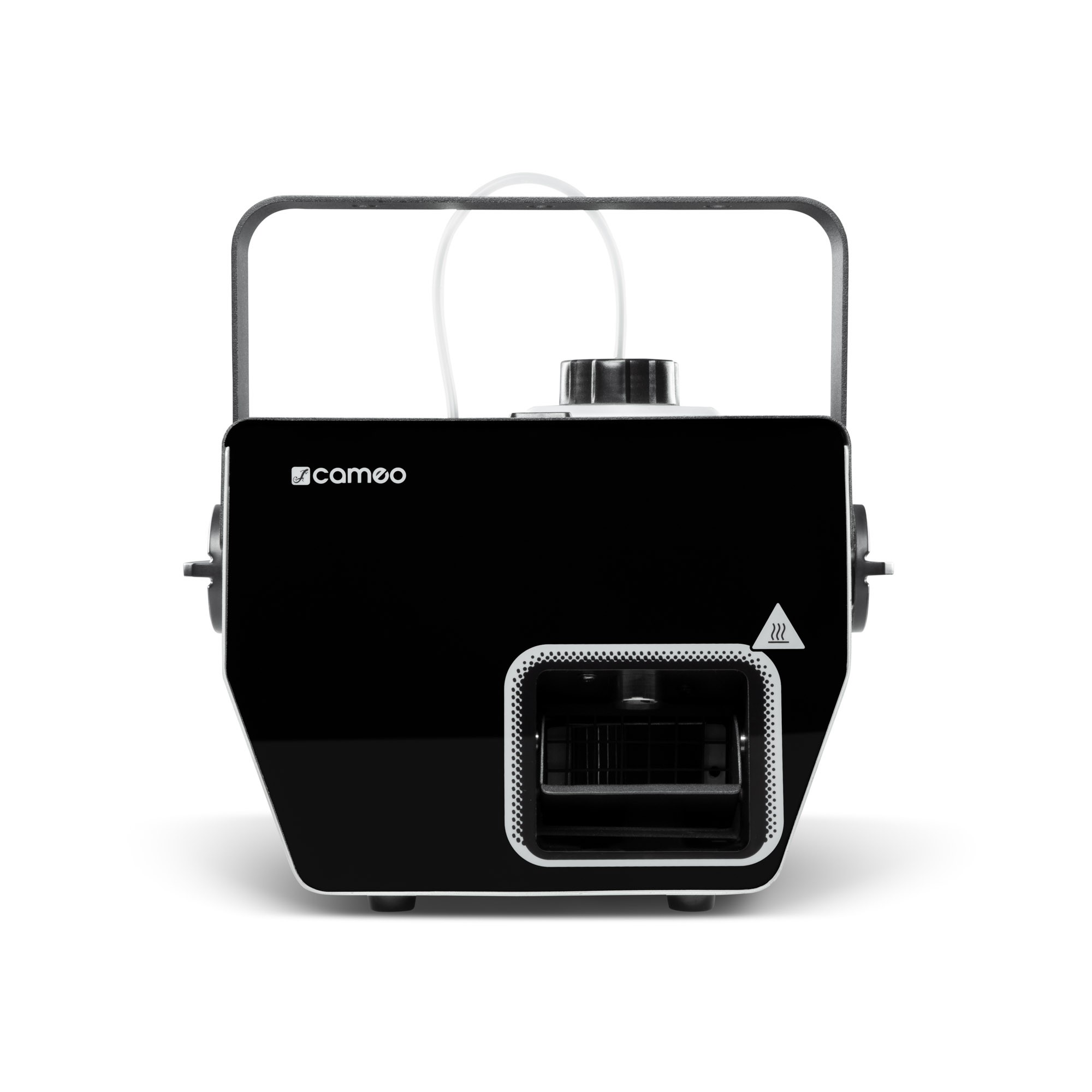

The Cameo phantom H2 is a compact fog machine.
High-performance heating element (600 W), preheating time approx. 2 min
0.8-litre tank with two-coloured lighting and fill level indicator
Flow rate 226 m³/min (max.)
Fluid consumption only 3.5 ml/min at 100% flow rate
Easy configuration via LED, DMX or stand-alone display
Possible use of water-based smoke liquid (e. g. Cameo Haze Fluid)
Easy to add thanks to the removable liquid reservoir
Integrated overheating protection
Variable ejection angle adjustable by means of a deflector
Includes mounting bracket and remote control
High-performance heating element (600 W), preheating time approx. 2 min
0.8-litre tank with two-coloured lighting and fill level indicator
Flow rate 226 m³/min (max.)
Fluid consumption only 3.5 ml/min at 100% flow rate
Easy configuration via LED, DMX or stand-alone display
Possible use of water-based smoke liquid (e. g. Cameo Haze Fluid)
Easy to add thanks to the removable liquid reservoir
Integrated overheating protection
Variable ejection angle adjustable by means of a deflector
Includes mounting bracket and remote control
Technical sheet
- DMX compatible Yes
- Type of product fog
- Machine type Fog
- Power600 W
- Generated volume. 226 m³/min
- Preheating timeeca. 2 min
- Fluid tank capacity 0.8 l
- Fluideca consumption. 3.5 ml/min
- RemoteDIN 5-Pol male connector
- Remote control cable length10 m
- Remote control functionsInterval, Wind set, Output
- DMXinput XLR male 3-pin XLR connector
- DMX output3-pin female XLR connector
- DMX2 channel modes
- DMX functionsMist emission, Fan speed
- Settings Low, Enter, High, Mode
- Display indicator 4 characters LED
- Mains voltage230 Volts / 50-60 Hz
- FuseF5AL / 250 V
- Power consumption620 W
- Mains base Fixed connection cable, CEE 7/7
- Ambient temperature (operating)5 - 40 °C
- Relative humidity level < 85%, no condensation
- Housing materialMetal
- Colour of the boxGrey, black
- Width242 mm
- Height (mm)187 mm
- Depth275 mm
- Accessories (included)4 rubber feet, bottle, cable remote control
- Weight7,14 kg
