Pedal power supply
Attention product available EXCLUSIVELY by SPECIAL ORDER!!!

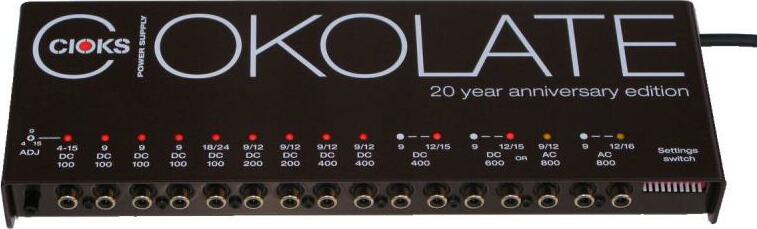

To celebrate the brand's 20th anniversary, Cioks is releasing the Ciokolate, its most powerful and complete power supply. It combines an AC10 and a DC10 and adds a few extra functions. Plenty of power, many different voltages and a full selection of Flex adapters make it suitable for any pedal board with lots of effect pedals. The Ciokolate can power high-current digital pedals, 18, 24 or even 40 volt pedals, up to 2 AC pedals, up to 2 Radial Tonebone pedals, or with its dying battery simulation it can power your old fuzz or overdrive. In addition to all this, it can of course supply any of your pedals with 9 volts, thanks to one of its many isolated outputs.
To celebrate the brand's 20th anniversary, Cioks is releasing the Ciokolate, its most powerful and complete power supply. It combines an AC10 and a DC10 and adds a few extra functions. Plenty of power, many different voltages and a full selection of Flex adapters make it suitable for any pedal board with lots of effect pedals. The Ciokolate can power high-current digital pedals, 18, 24 or even 40 volt pedals, up to 2 AC pedals, up to 2 Radial Tonebone pedals, or with its dying battery simulation it can power your old fuzz or overdrive. In addition to all this, it can of course supply any of your pedals with 9 volts, thanks to one of its many isolated outputs.
Lire la suite
Technical sheet
- Features:
- 16 outputs configured in 12 isolated sections
- 2 toroidal transformers with magnetic field protection
- 4 DC sections, 3 at 400mA each and 1 at 600mA
- 2 AC sections with 800mA each and AC voltage in 9, 12 and 16 Volts
- 2 15-volt outputs for Radial Tonebone pedals
- possibility of 18 or 24 volts on a single output
- 40-volt power supply with included Stack Flex adapter
- one output with adjustable voltage from 4 to 15 Volts
- anti-short-circuit protection on all outputs
- LED visual control on each output
- temperature control
- operates on 120 or 240 volt current
- 24 Flex adapters included
- Flex adapter included for electro-Harmonix tube pedals
- 1 Split Flex adapter and 2 types of Stack Flex adapter included
- multi-output Flex adapter included (3 outputs)
- gold-plated outputs
- pedal board mounting kit included
- steel case with 2mm-thick top panel
- Outputs :
- #1: 4-15V DC / 100mA
- #2 to 4: 9V DC / 100mA each
- #5: 18 or 24V DC / 100mA
- #6 and 7: 9 or 12V DC / 200mA each
- #8 and 9: 9 or 12V DC / 400mA each
- #10 and 11: 9 and 12 or 15V DC / 400mA
- #12 and 13: 9 and 12 or 15V DC / 600mA* each
- #14: 9 or 12V AC / 800mA* each
- #15 and 16: 9, 12 or 16V AC / 800mA
- * only one of these two sections can be used
- Dimensions: 292 x 98 x 35 mm (without rubber feet)
- Weight: 2 kg
