Description

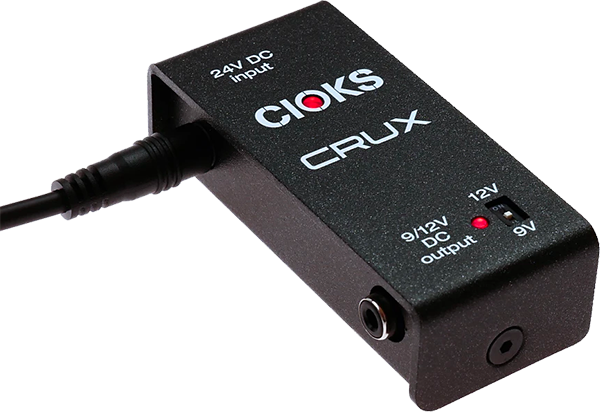

CIOKS CRUX is the ultimate add-on to CIOKS DC7 if you are using a Neural DSP Quad Cortex, a Line 6 HX- series pedal or another power-hungry 9V or 12V multi-effects pedal. Simply connect the CRUX to the 24V outlet on DC7, set the correct voltage on CRUX, connect the appropriate CIOKS Flex cable from CRUX to your multi-effect pedal and you are good to go.
Using CRUX frees up the outlets on DC7 that would otherwise be needed to run these devices (for instance four for a Neural DSP Quad Cortex and two outlets for a Line HX Stomp), allowing you to run more pedals along with your multi-effects device. CRUX therefore provides a simpler, more reliable setup and gives you more options for connecting additional pedals.
Using CRUX frees up the outlets on DC7 that would otherwise be needed to run these devices (for instance four for a Neural DSP Quad Cortex and two outlets for a Line HX Stomp), allowing you to run more pedals along with your multi-effects device. CRUX therefore provides a simpler, more reliable setup and gives you more options for connecting additional pedals.
Lire la suite
Technical sheet
- Converts the 24V aux outlet on DC7 into a powerful 9 or 12V outlet with a total power of 24W
- Powers a Neural DSP Quad Cortex with DC7 saving you 4 outlets on the DC7
- Overload and short circuit protected outlet
- Overvoltage protected outlet protecting your equipment
- CIOKS CRUX has the same 1-inch profile (25,4mm) as CIOKS DC7
- Compatible with CIOKS MiniGRIP for drill-free mounting underneath Pedaltrain boards
- One 24V DC Link cable included (L2415)
- Two Flex cables included (1050 & 3050)
- Designed in Denmark, assembled in Poland
- 5-year worldwide warranty
