Equalizer / channel strip

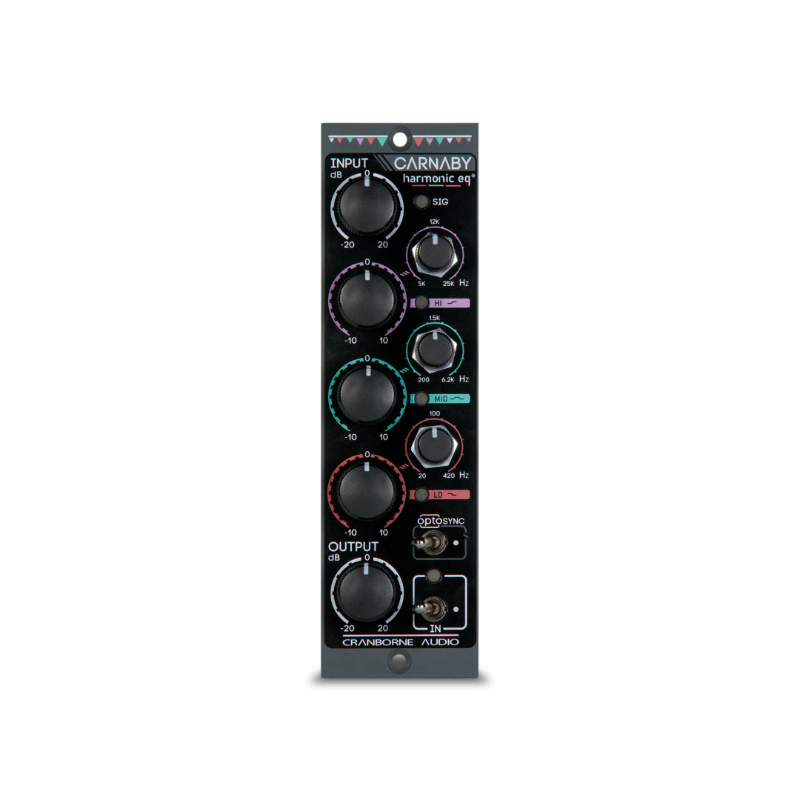

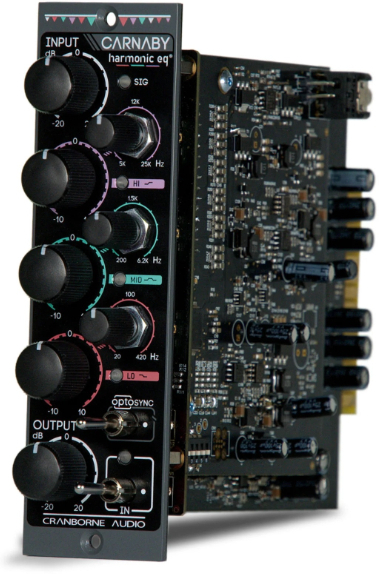

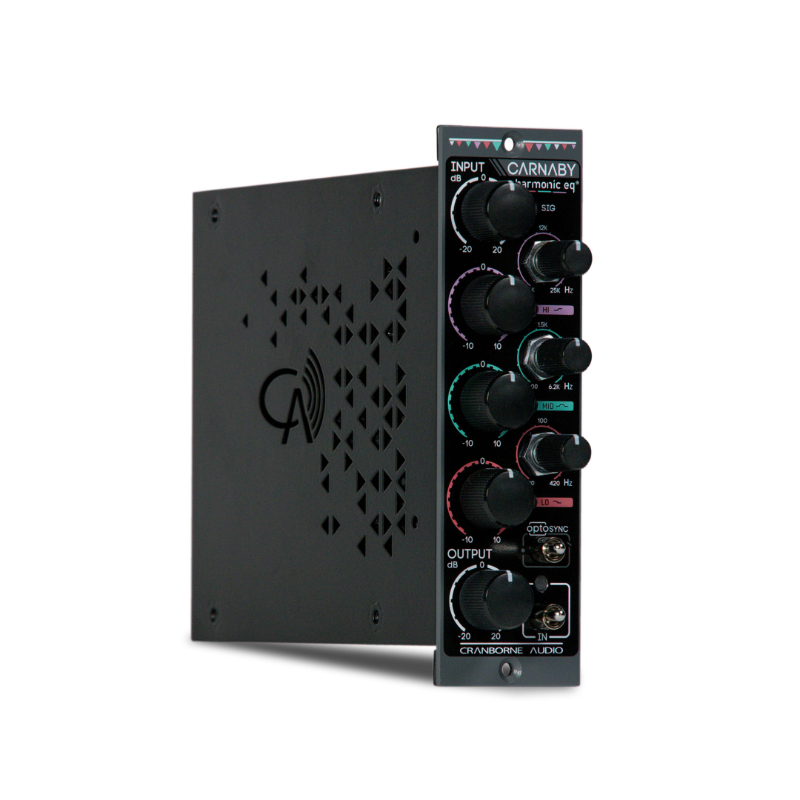

The Cranborne Audio Carnaby 500 marks a world first in the world of analog signal processing. It is the first Harmonic EQ™ analog equalizer in the 500 series format. Unlike traditional equalizers that manipulate the signal via filters, the Carnaby 500 uses harmonic saturation to amplify or attenuate frequencies.
This technology enriches audio sources, stems, and mixes by generating musical harmonics specific to each frequency band, delivering a rich, warm, and highly musical sound. The dynamic approach to equalization makes each adjustment interactive and organic, while maintaining an intuitive parametric EQ-style interface.
This technology enriches audio sources, stems, and mixes by generating musical harmonics specific to each frequency band, delivering a rich, warm, and highly musical sound. The dynamic approach to equalization makes each adjustment interactive and organic, while maintaining an intuitive parametric EQ-style interface.
Lire la suite
Technical sheet
- Type of equalizer Parametric
- Device Type
- 3-band parametric equalizer in 500 series format
- Exclusive Harmonic EQ™ Technology
- EQ Technology
- Uses analog harmonic saturation instead of traditional filters
- Adds musical harmonics to enrich the sound
- EQ Bands
- Three independently interactive bands, with ±10 dB boost or cut
- Dynamic response: the more the signal is pushed, the more saturation increases
- HI Band (Treble)
- Adjustable frequencies from 5 kHz to 25 kHz
- Soft saturation to add air and clarity
- Perfect for vocals, cymbals, strings, and acoustic pianos
- MID Band (Midrange)
- Bell filter with fixed Q
- Adjustable frequencies from 200 Hz to 6.2 kHz
- Emphasizes presence or softens the midrange with saturation Targeted
- LO Band (Bass)
- Adjustable frequencies from 420 Hz to 20 Hz
- Hard-clipping saturation
- Allows for subtle bass boost or intense subharmonic distortion
- Dynamic signal control
- Independent input and output potentiometers per band
- Level adjustment: ±20 dB
- Input gain boost to intensify saturation
- Gain reduction for more transparent EQ
