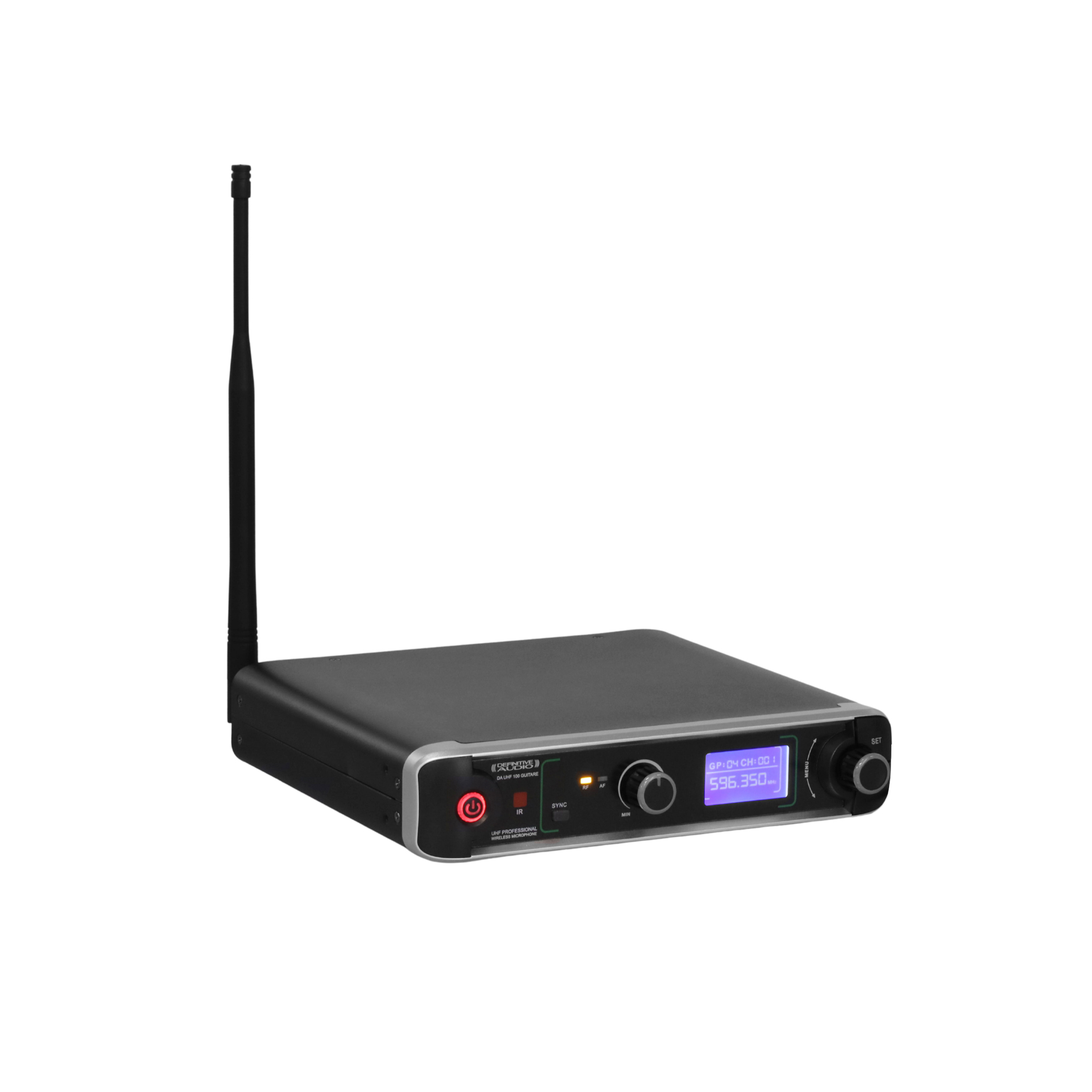

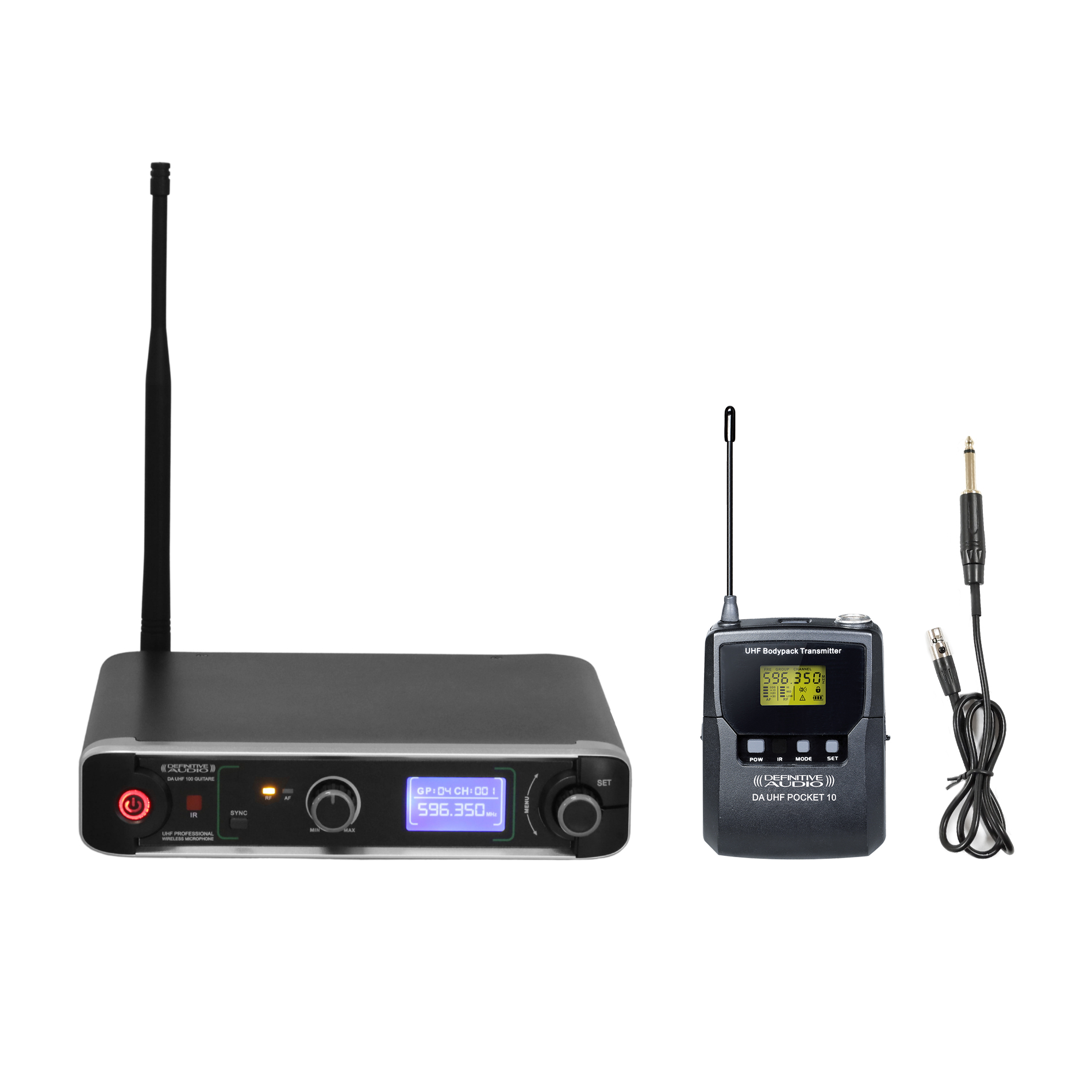

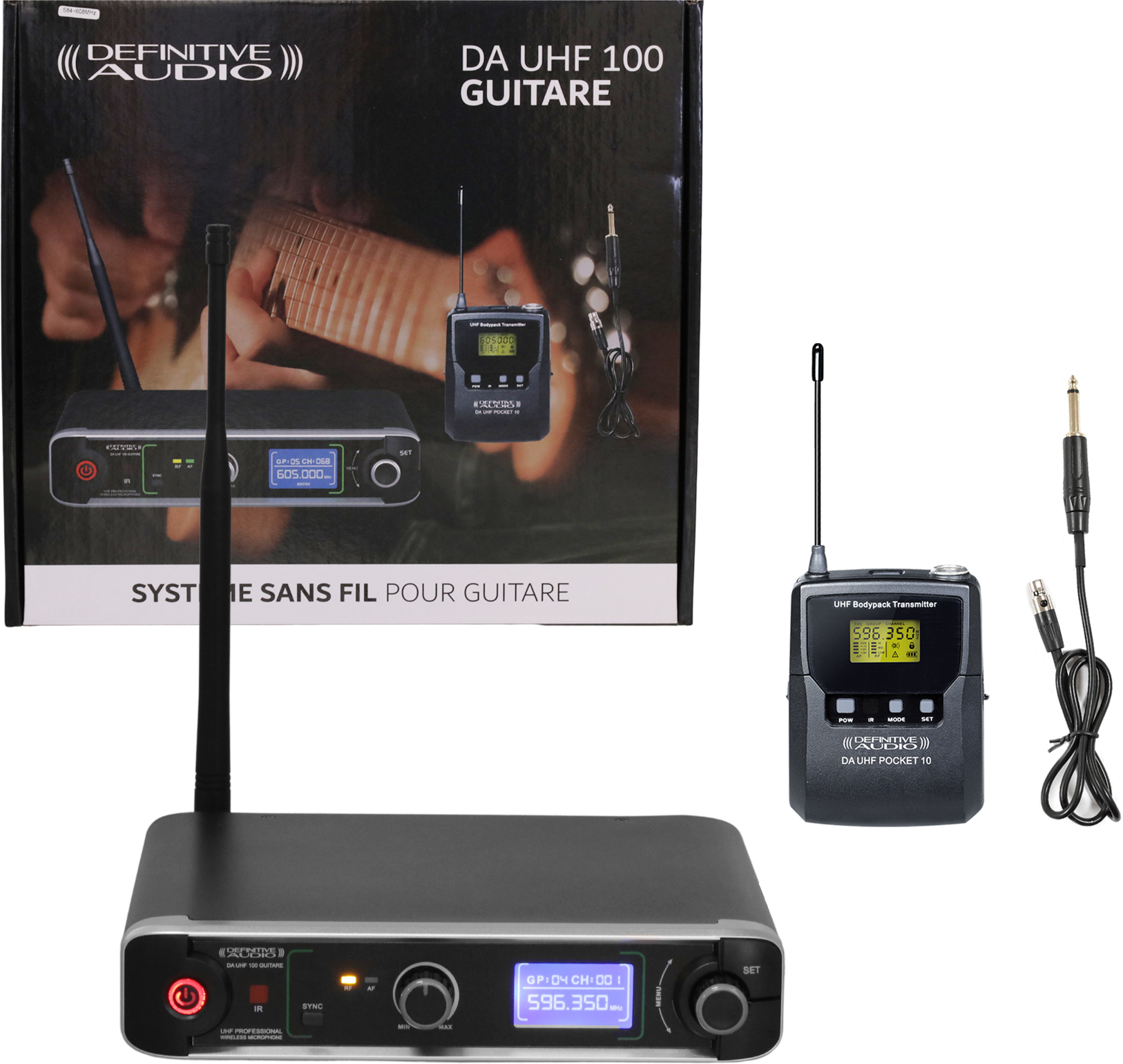

Wireless microphone for instrument
The DA UHF 100 GUITARE is a professional UHF wireless system specially designed for guitarists and bassists who want to maintain optimum signal quality without the need for cables.
Thanks to its stable UHF PLL band and compact beltpack transmitter, this system offers reliable, dynamic, interference-free transmission.
Thanks to its stable UHF PLL band and compact beltpack transmitter, this system offers reliable, dynamic, interference-free transmission.
Lire la suite
Technical sheet
- Digital transmission Yes
- Frequency HF Auto search
- Type
- UHF wireless system with receiver and beltpack transmitter
- Frequency band
- UHF with PLL (phase-locked loop) circuitry
- Frequencies
- Bandwidth up to 50 MHz
- Up to 2000 switchable frequencies (depending on region)
- Predefined frequency groups
- Display
- LCD display
- LED indicators
- Design
- 1U chassis with rack mounting kit
- External antenna for improved reception

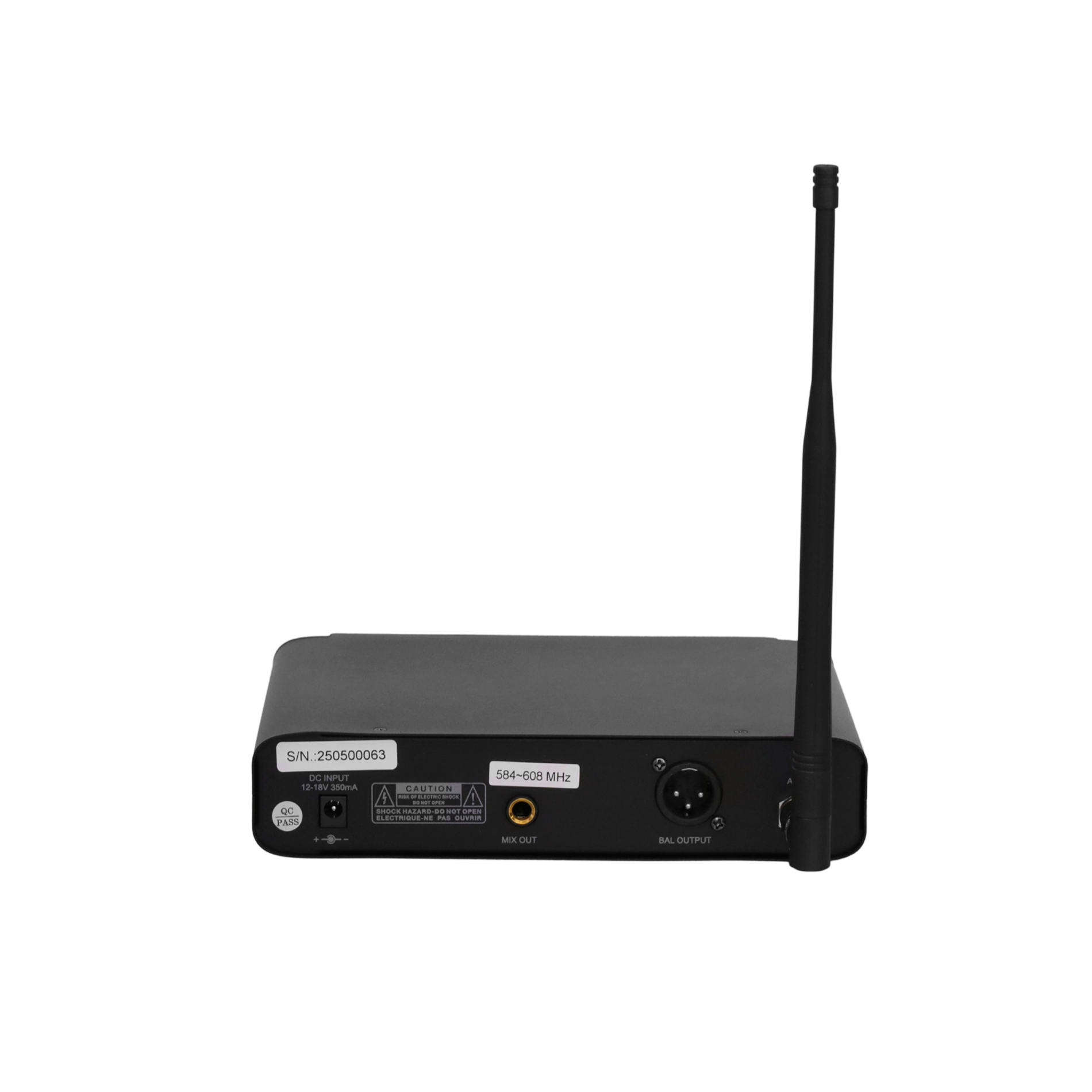

- Receiver connections
- Independent balanced XLR outputs
- Balanced jack output (Mix Out)
- Features
- ACT function (infrared synchronization)
- Mute control via audio code and noise lock
- Frequency response
- 50 Hz - 16 kHz (flat response)
- 50 Hz - 18 kHz (±3 dB)
- Modulation mode
- FM
- RF sensitivity
- S/N > 80 dB (at 6 dBµV)
- Harmonic distortion (THD)
- < 0.5% at 1 kHz
- Range
- Approx. 60 m (depending on environment)
- Included accessories
- Guitar jack cable (6.35 mm jack to 4-pin mini-XLR)
- Receiver dimensions
- 210 x 44 x 181 mm
- Receiver weight
- 0.8 kg

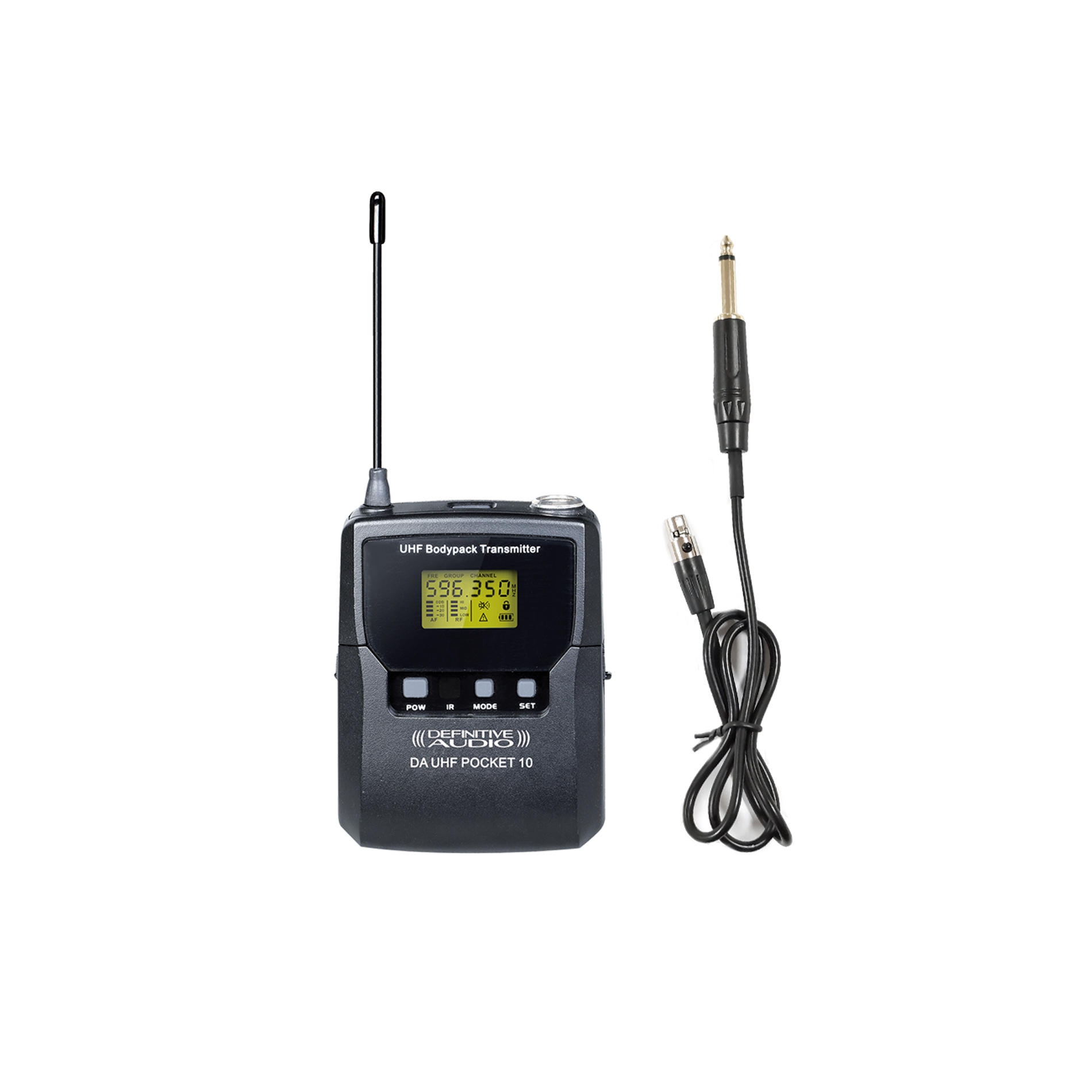

- Belt transmitter
- Mini-XLR 4-pin input
- Backlit LCD display (frequency, group, status)
- Max. transmit power 30 mW (depending on region)
- Compatible with dynamic and electret microphones
- Power supply: 2 AA batteries
- Autonomy: approx. 8 h
- Dimensions: 66 x 106 x 23 mm
