Wireless headworn microphone

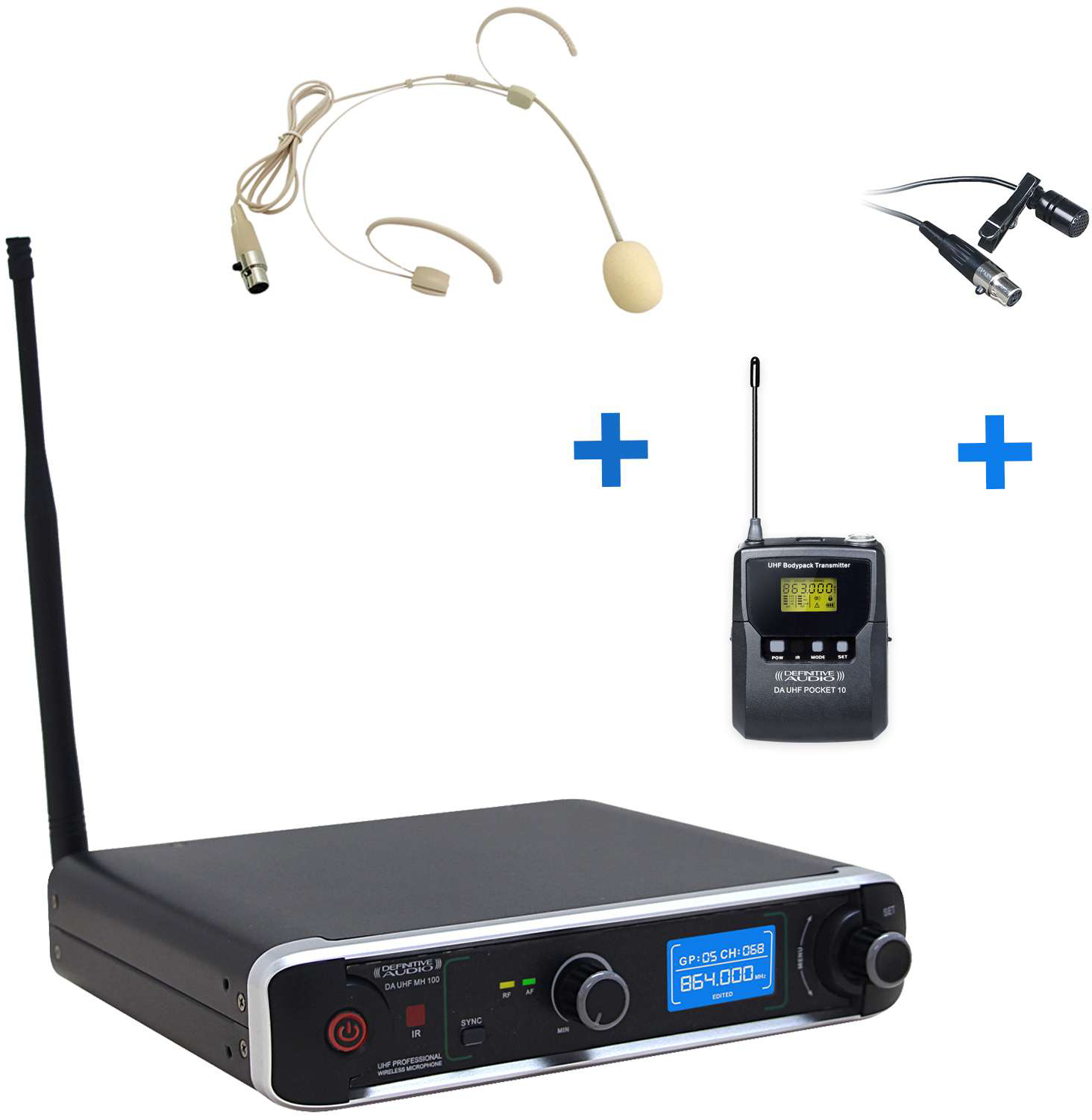

The Definitive Audio DA UHF PT 100 is a single UHF headset microphone.
Definitive Audio introduces a new range of wireless headset/tie clip microphones: the DA UHF PT. The range includes two models, one channel and two channels. They are designed with a standard 1U chassis, LCD display and control buttons for management and adjustment. The wireless PLL system allows for easy and efficient use in all circumstances. The outstanding build quality does not prevent an unusual price/performance ratio. The DA UHF MH range will bring you quality, sound performance, clarity and precision.
Definitive Audio introduces a new range of wireless headset/tie clip microphones: the DA UHF PT. The range includes two models, one channel and two channels. They are designed with a standard 1U chassis, LCD display and control buttons for management and adjustment. The wireless PLL system allows for easy and efficient use in all circumstances. The outstanding build quality does not prevent an unusual price/performance ratio. The DA UHF MH range will bring you quality, sound performance, clarity and precision.
Lire la suite
Technical sheet
- Digital transmission No
- Frequency HF Auto search
- UHF band, PLL phase lock circuit, stable characteristics, low harmonic radiation.
- Frequency group design, several predefined groups are compatible with the operating frequency.
- Tuning bandwidth up to 50 MHz for up to 2000 switchable frequencies (depending on the region).
- Frequency band: 630-668 MHz
- Large LCD display.
- 1U chassis with rack mounting kit.
- Removable antenna with metal chassis

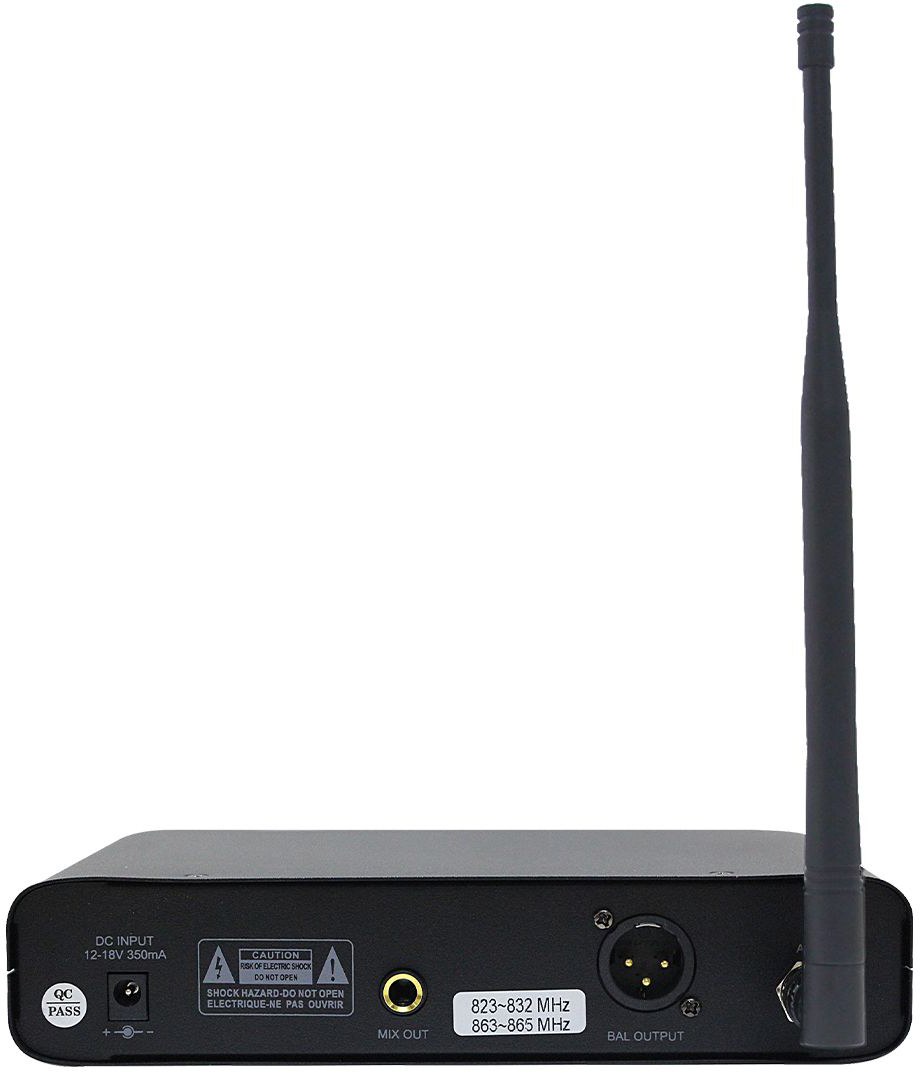

- Independent balanced XLR outputs
- Balanced Mix Out Jack output
- ACT function: wireless synchronisation of the transmitter is performed via the infrared interface.
- Frequency response range from 50Hz to 16KHz with flat response.

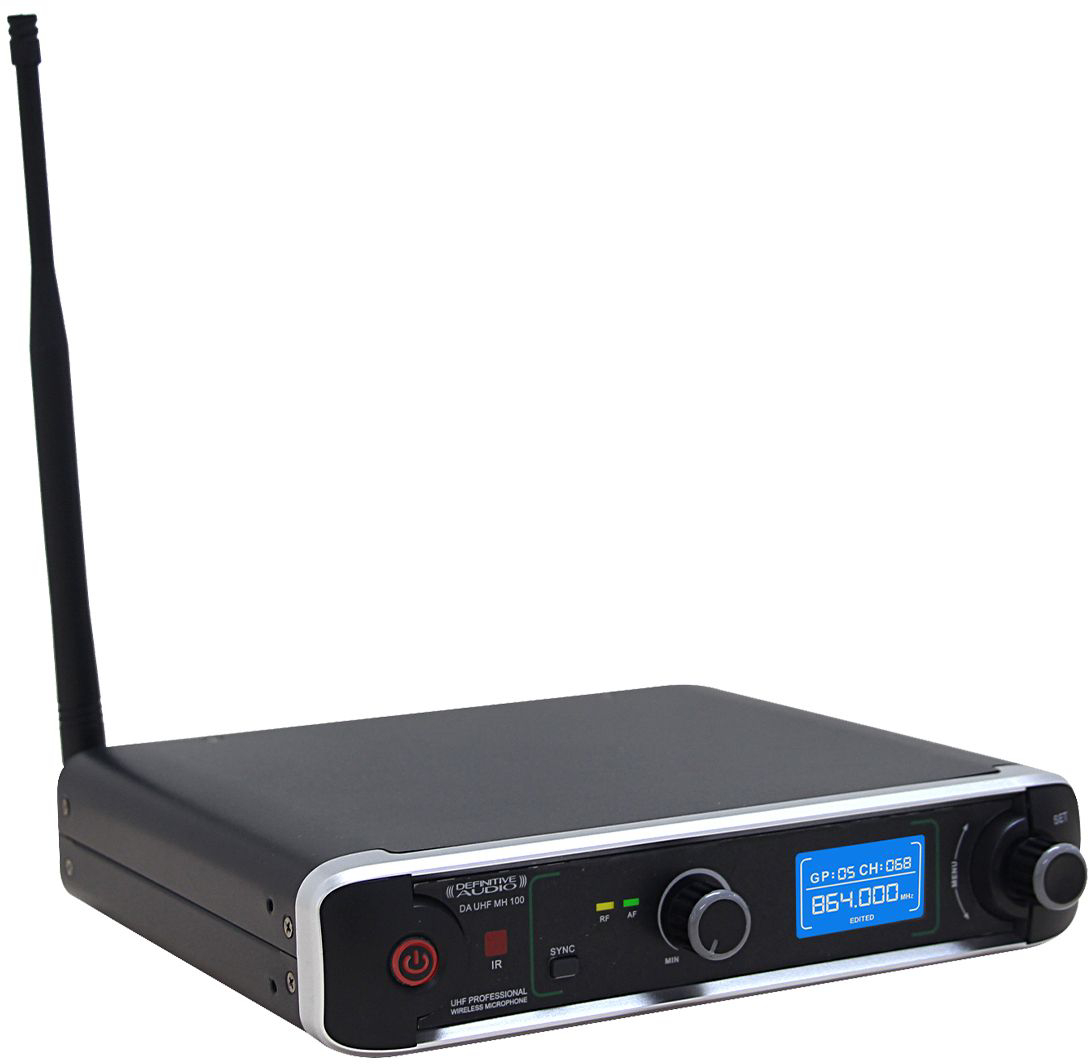

- Technical parameters Receiver :
- Receiving channel: Single channel
- Oscillation mode: Phase lock PLL Frequency synthesis
- Modulation mode: FM modulation
- RF sensitivity: 6dB V, S / N> 80dB
- Working range: 60 m linear distance. Caution: Actual range depends on absorption, reflection and interference of the RF signal and the environment in which the microphone is used
- Silent control mode: audio code and noise lock
- Built-in frequency response: 50Hz to 18KHz (± 3 dB)
- Built-in THD: <0.5% at 1KHz
- Panel display: LCD + LED
- Dimensions (mm): 210 (W) x 44 (H) x 181 (D)
- Weight : 0,8 Kg
- Can be used with a transmitter
- Body Pack :
- PLL phase-locked oscillation mode of the frequency synthesizer
- Gain sensor: adjustable gain
- Transmitter power: up to 30mW, depending on region
- Current consumption: <130mA
- LCD type display

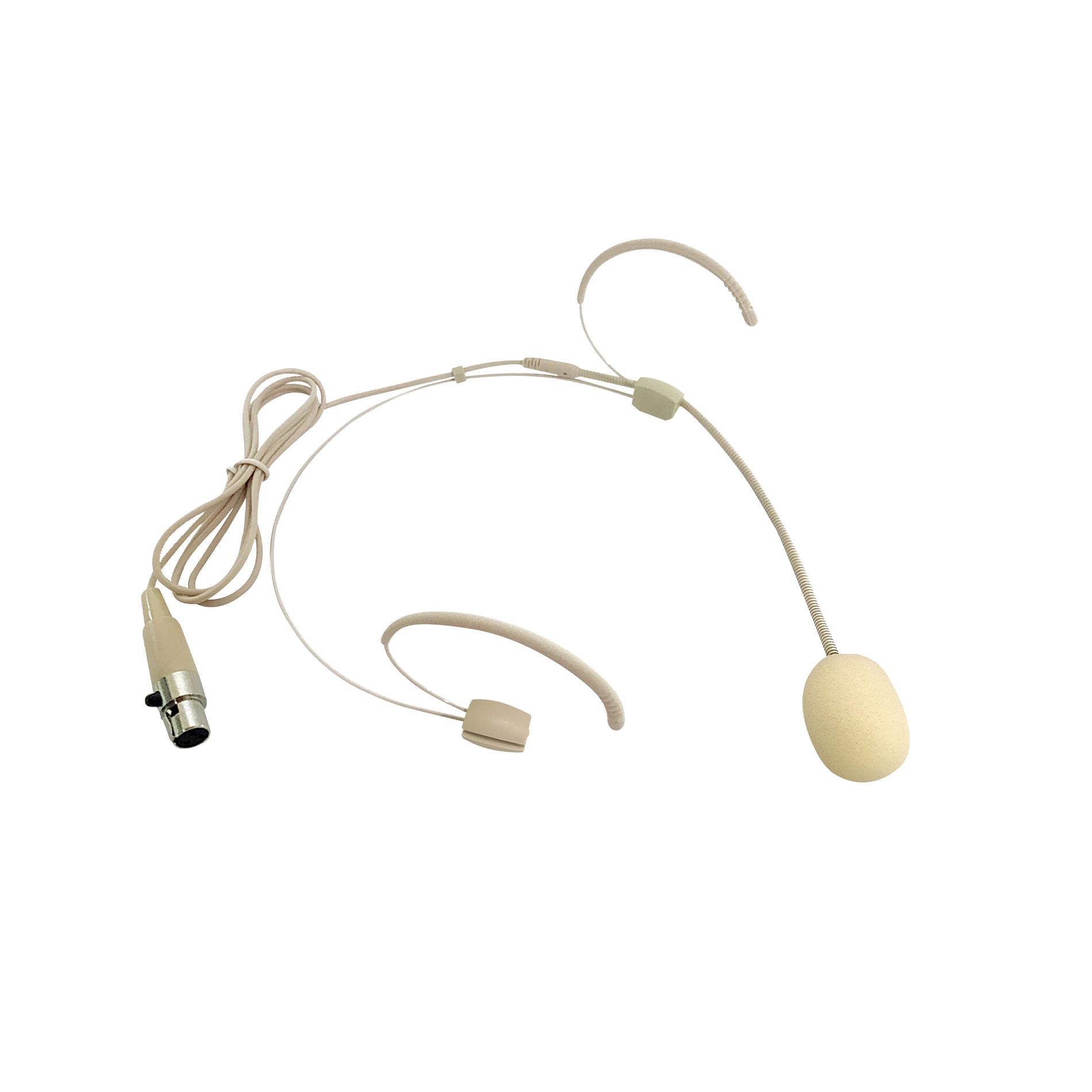

- Microphone type included: Tie and headband
