Analog mixing desk

The XM4 USB mixing console is the ideal tool for musicians and DJs looking for a compact, reliable, and versatile solution for their performances and recordings.

Overview

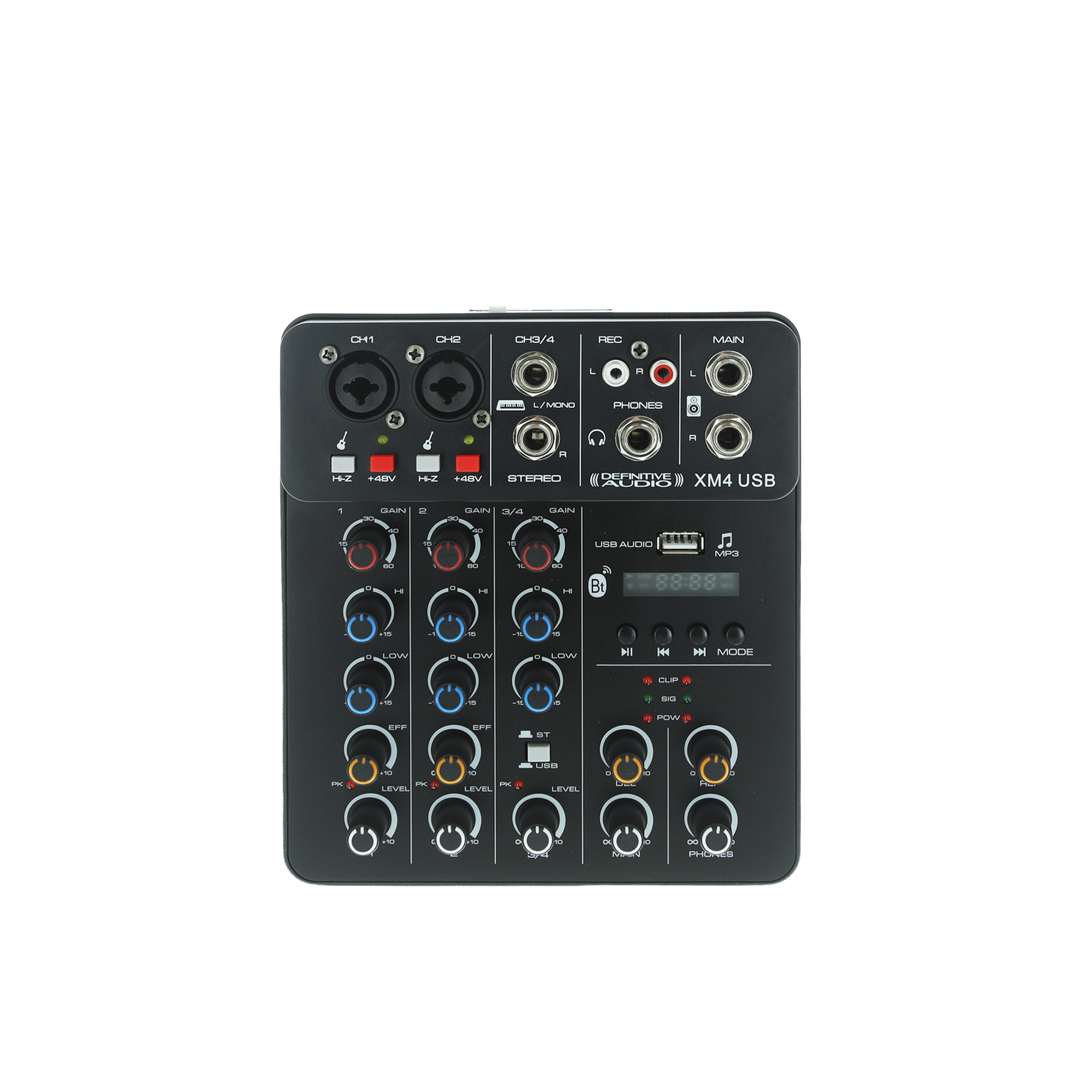

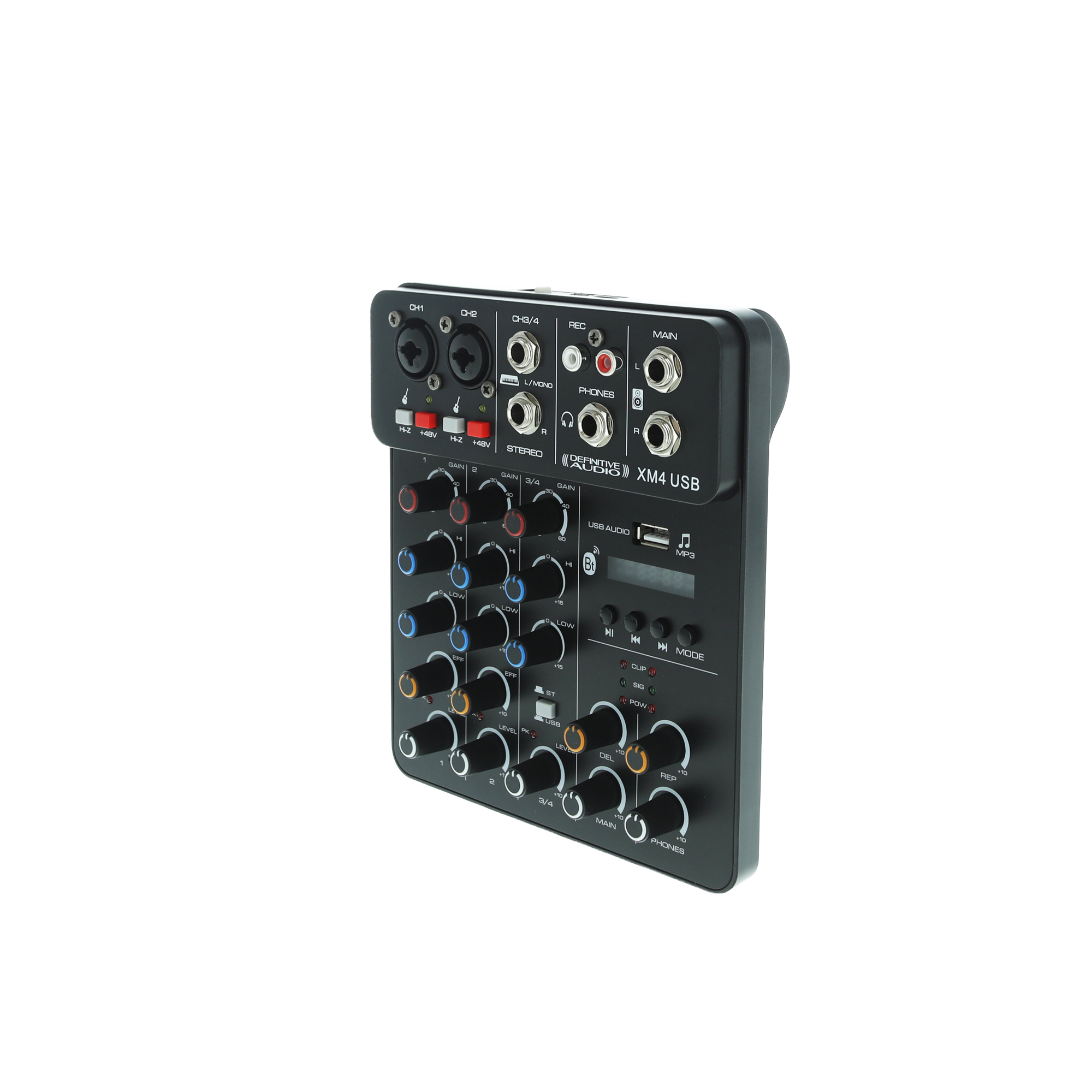

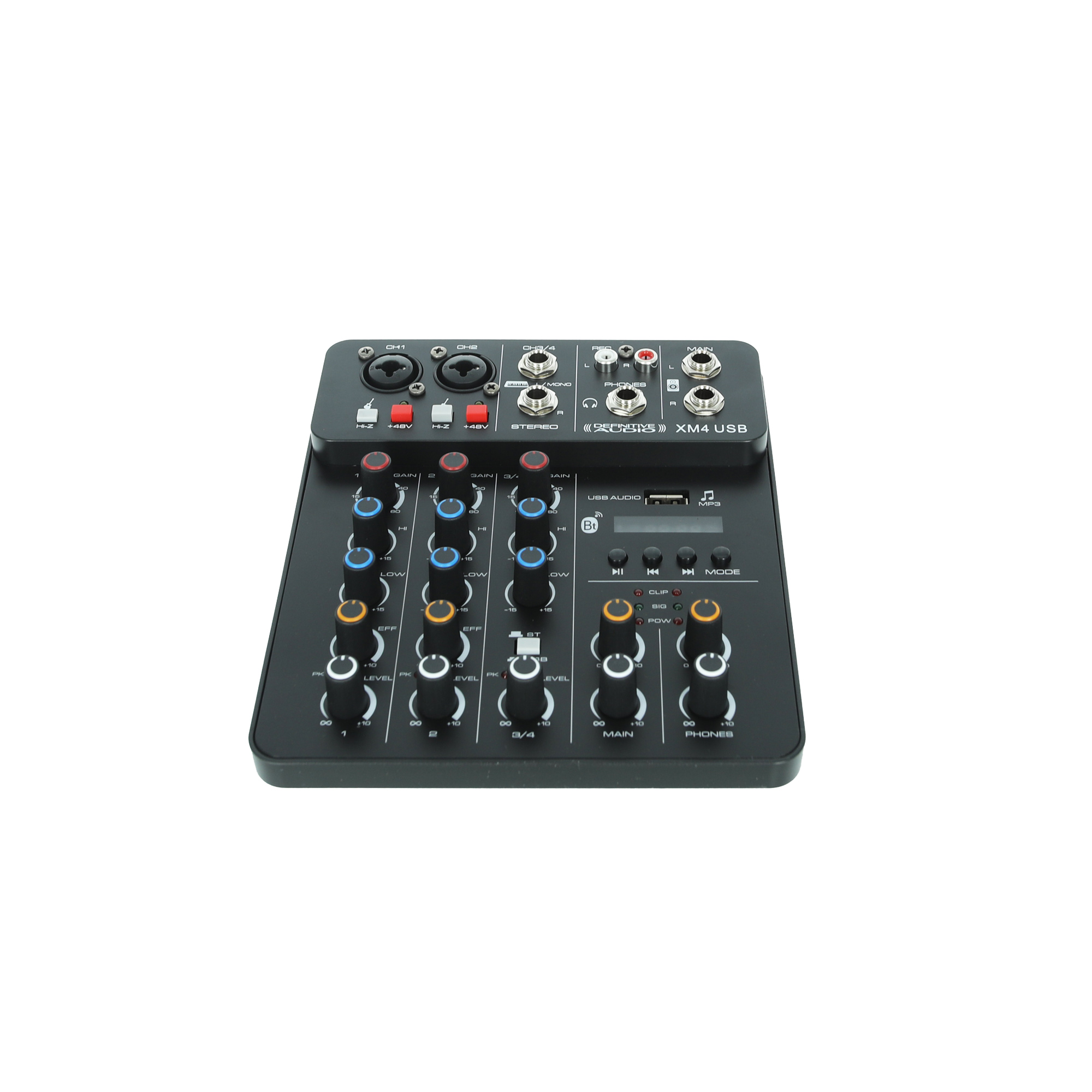

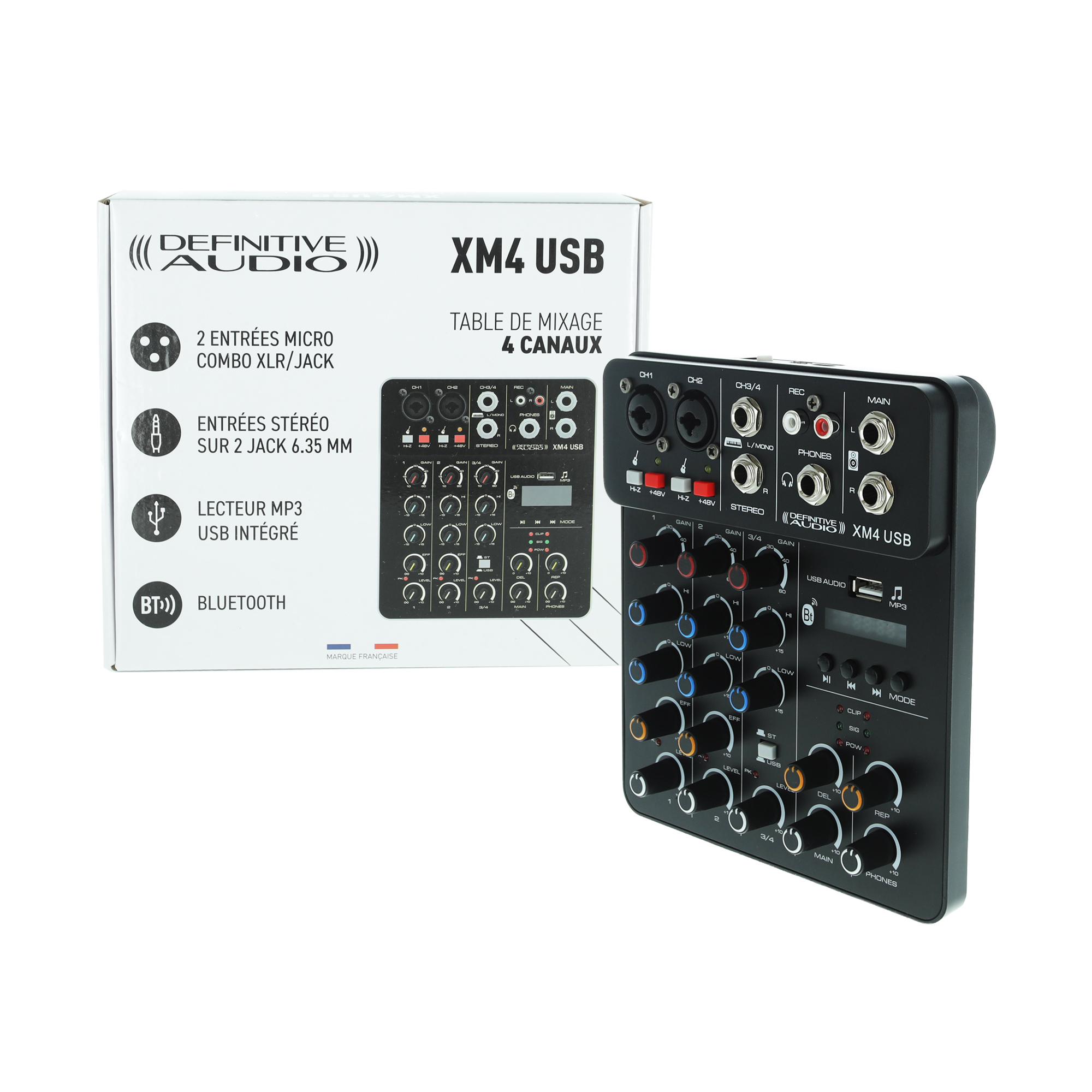

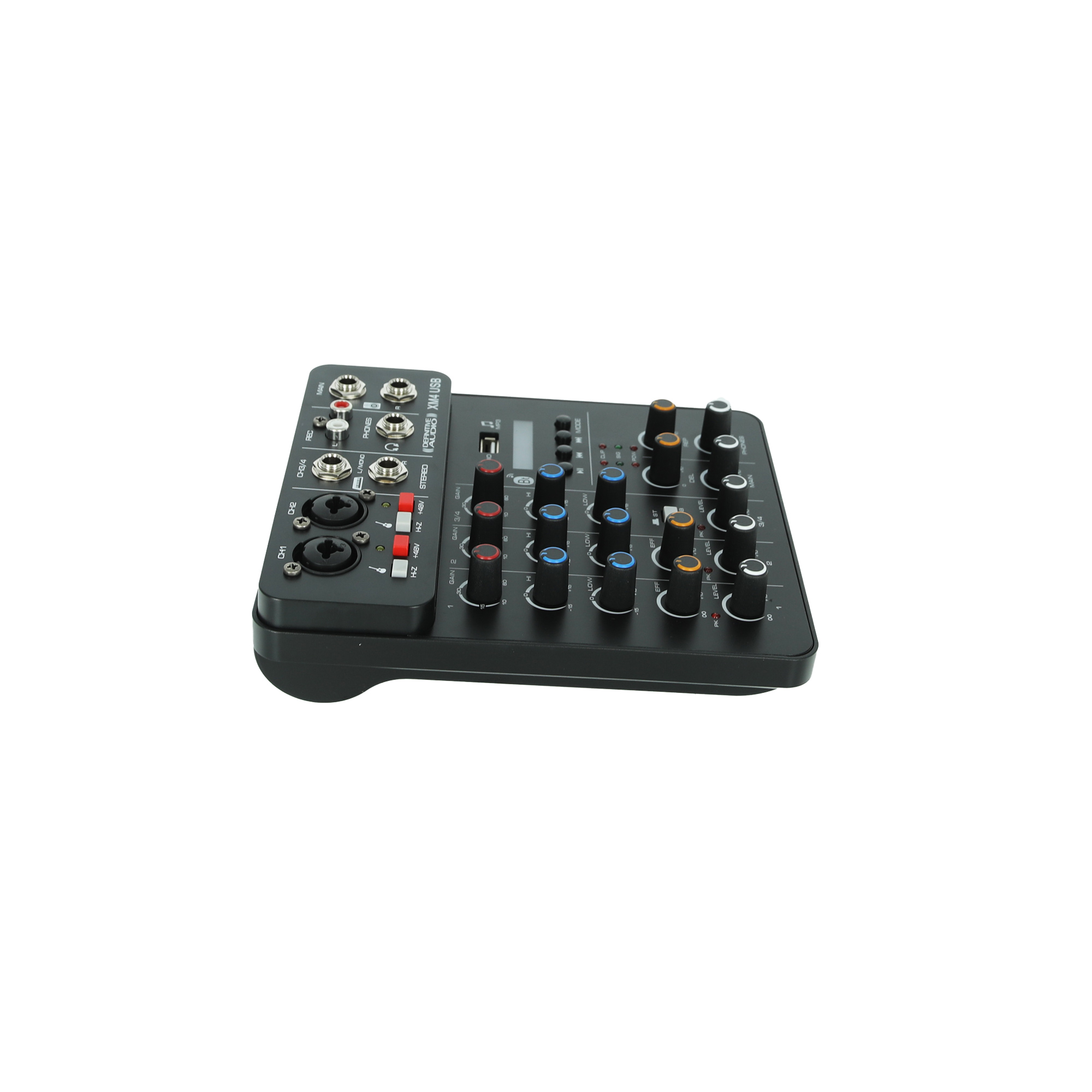

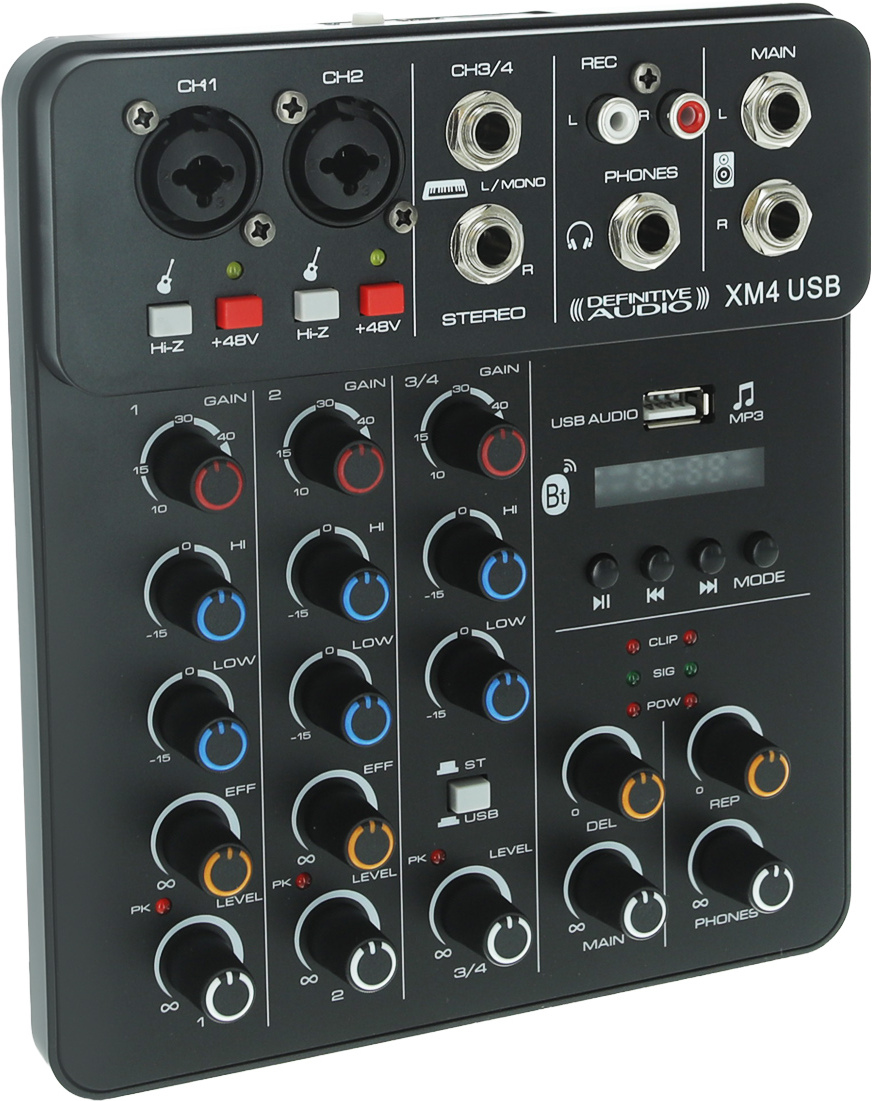

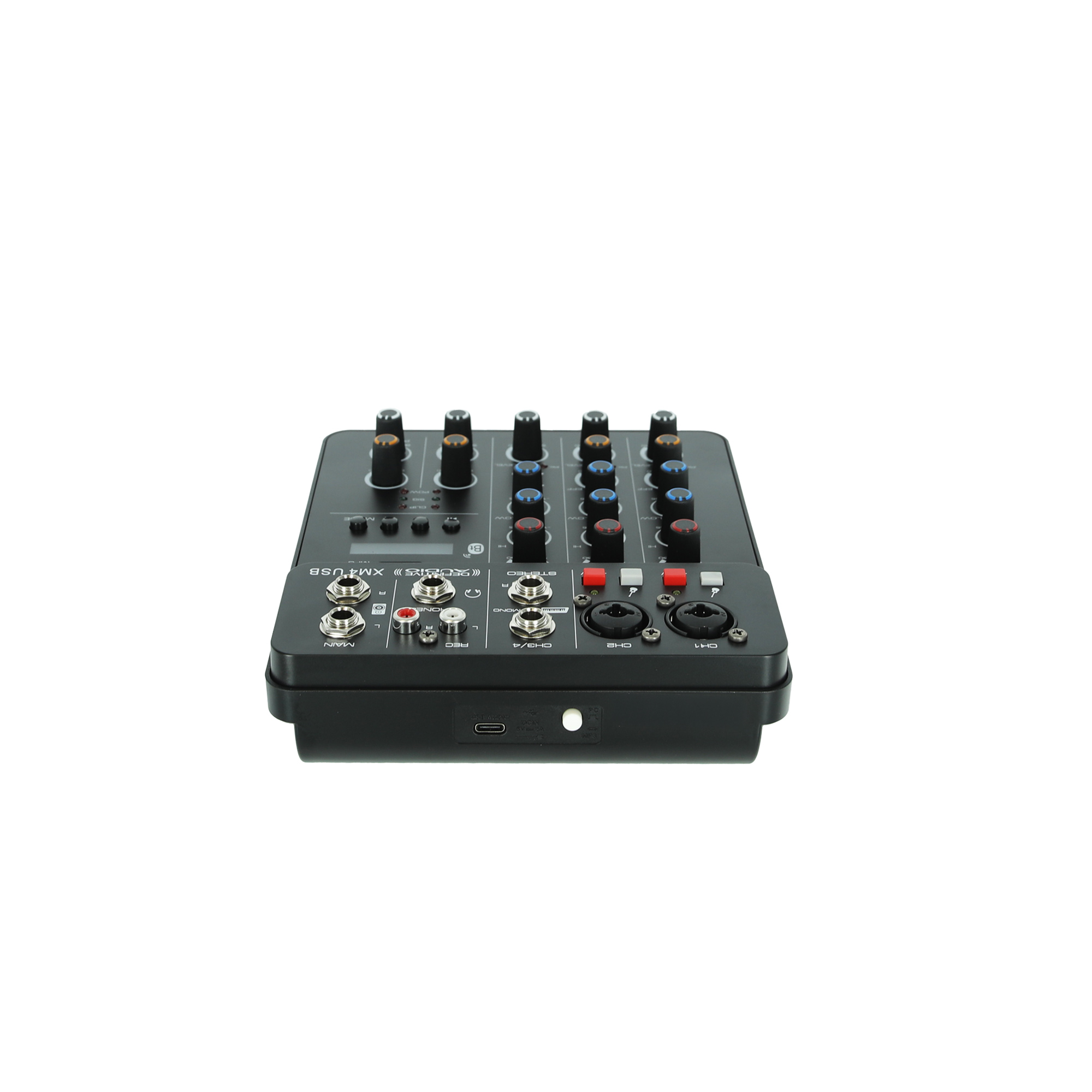

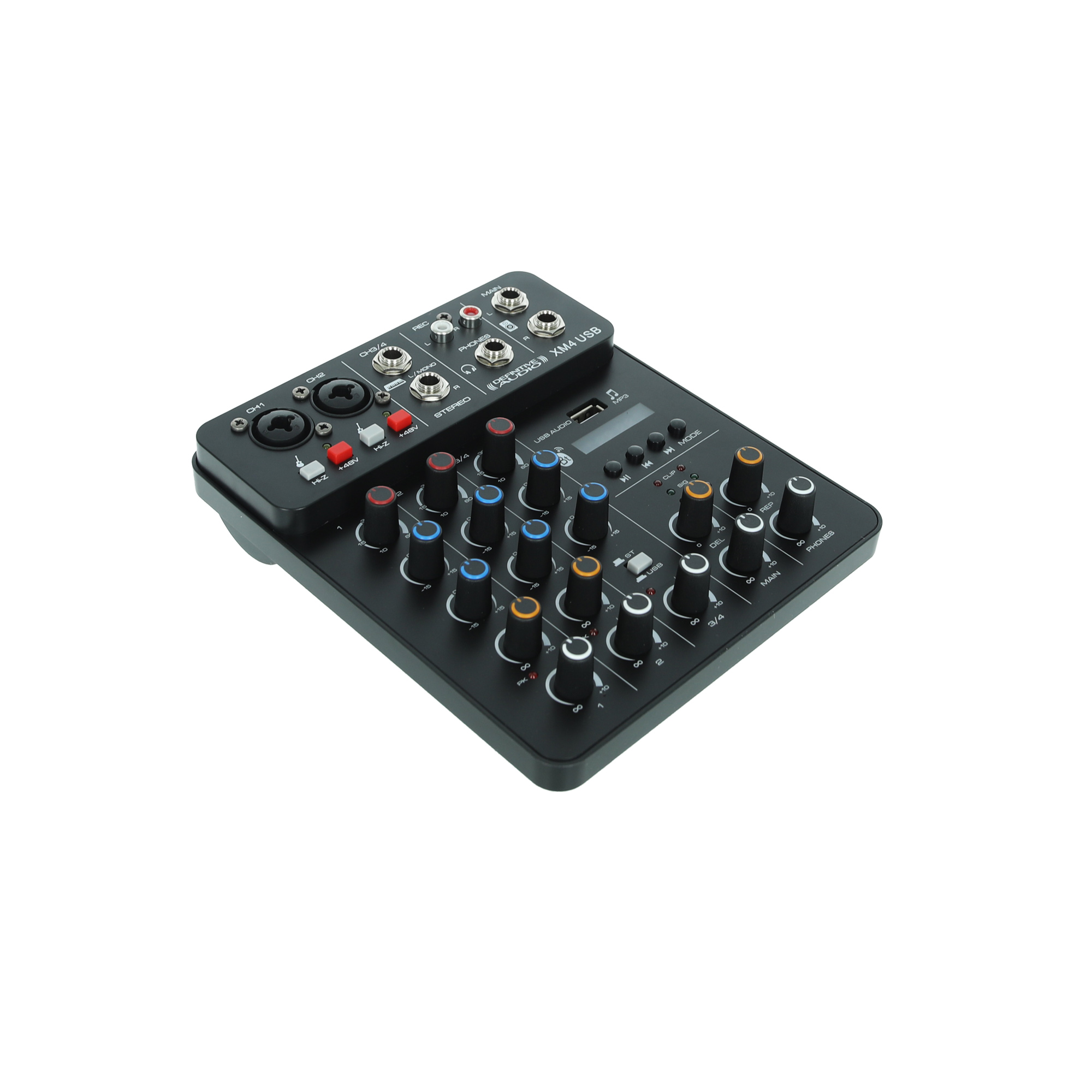

The XM4 USB is a 4-channel analog mixing console designed to adapt to a variety of settings, such as small sound systems, live performances, or simple recordings. This makes it the perfect choice for users who need flexibility in their audio setup.

Versatile Inputs for Optimal Connectivity

This mixer features 2 XLR/6.35 mm combo inputs, complete with +48V phantom power and a Hi-Z function, ideal for directly connecting instruments such as guitars. In addition, its CH3/4 stereo channel allows for easy connection of line-level sources via 6.35 mm jacks.

Modern audio playback with a built-in USB/MP3 module

The built-in USB/MP3 module allows you to play audio files directly from a USB flash drive, supporting various formats such as:

MP3
WMA
WAV
APE
FLAC

It also features a USB/PC interface for easy playback from a computer, while also allowing you to record tracks.

Precise control with essential settings

Compact and rugged, the XM4 USB offers all the settings needed for optimal sound control, including:

Adjustable gain
2-band EQ
Effects to customize the sound
Per-channel level control for precise mixing
Headphone output for effective monitoring
Stereo main output for clear playback

Technical sheet

Mixer connectivity USB
Number of channel mixing desk 4 channels and less
Number of channels 4 channels

General Specifications
- Type: 4-channel analog mixing console
Inputs
- Inputs: 2 XLR/6.35 mm jack combo jacks
- Stereo channels CH3/4 with 6.35 mm jack inputs for L/Mono and R
- RCA L/R inputs
Outputs
- MAIN L/R outputs via 6.35 mm jacks
- 6.35 mm jack headphone output with dedicated volume control
Features
- Hi-Z function on channels 1 and 2 for high-impedance instruments
- Built-in +48V phantom power for condenser microphones
- Built-in USB player compatible with MP3, WMA, WAV, APE, and FLAC
- USB/PC interface for audio playback from a computer and recording
- Built-in Bluetooth receiver
Controls and Settings
- Independent gain control on each channel
- 2-band equalizer: HI and LOW, +/- 15 dB
- EFF control per channel
- Built-in effect with LED and REP controls for delay/reverb
- Independent LEVEL control per channel
- MAIN control for overall volume
Indicators
- LED indicators: CLIP, SIG, and POW
- Peak clipping indicator per channel
Audio Performance
- MIC input frequency response: 10 Hz – 200 kHz
- MIC input gain range: +14 dB to +60 dB
- MIC input signal-to-noise ratio: 120 dB
- LINE input frequency response: 10 Hz – 130 kHz
- LINE Input Gain Range: -6 dB to +38 dB
- LINE input signal-to-noise ratio: 95 dB
- Stereo channels: frequency response 10 Hz – 70 kHz
- Headphone output: +15 dBu / 150 Ω
Power Supply
- Power supply: 230 V ~ 50 Hz
Dimensions & Weight
- Dimensions: 160 x 47 x 182 mm
- Weight: 0.45 kg
- Included USB-C cable: 1 m long
