Midi controller

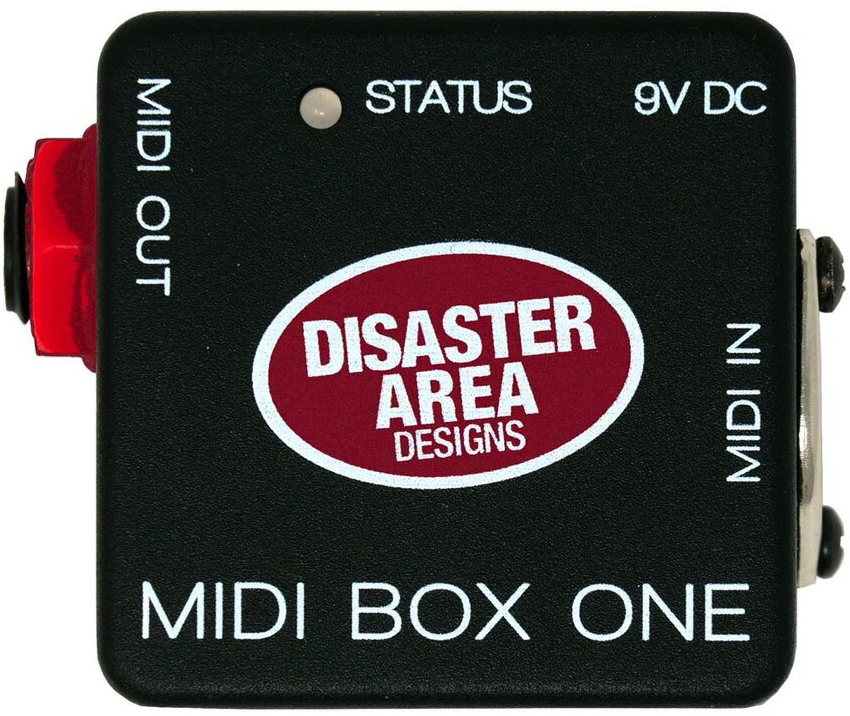

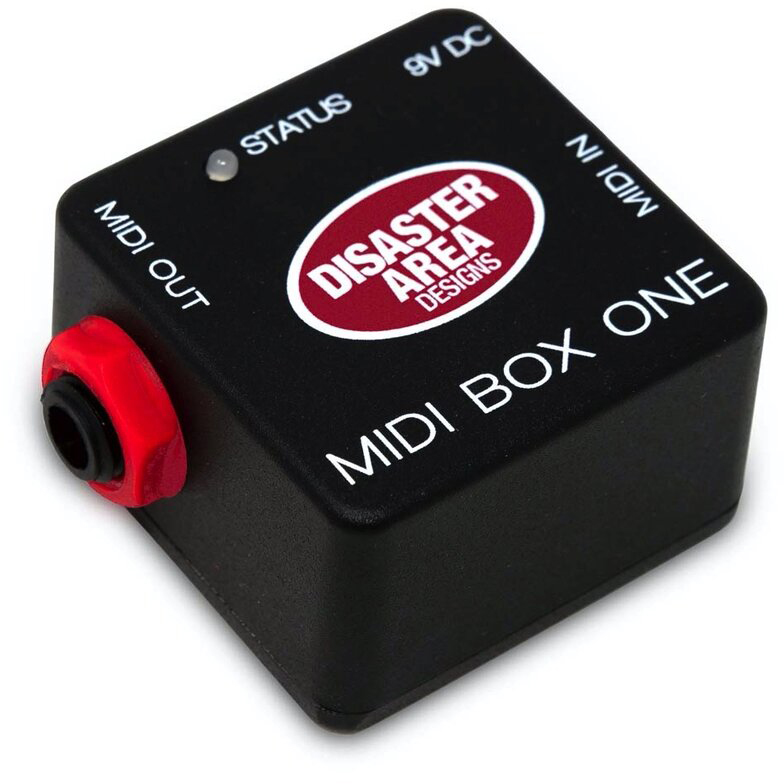

The DISASTER AREA MIDI Box One converts standard 5-pin (DIN) MIDI communications to a variety of 1/4" formats.
Featuring a single MIDI output, the MIDI Box One can output MIDI on either the tip or ring of its 1/4? jack, or send MIDI on both at the same time.
Configuration is easy, using the DIP switches on the underside of the MIDI Box One.

Technical sheet

DISASTER AREA MIDI Box One
SKU Disaster Area MIDIBOXONE
Converts standard 5-pin (DIN) MIDI communications to a variety of 1/4" formats
Configuration is easy, using the DIP switches on the underside of the MIDI Box One.
Tip Active:. Suits Alexander, Meris, Empress, Bondi, and other devices using voltage mode on the jack tip
Ring Active: Suits Chase Bliss Audio and other devices using voltage mode on the jack ring
Tip and Ring Active: Provides separate outputs on tip and ring of the control port, enabling two MIDI outputs using our TRS Insert Cable. If you’re planning to connect two Chase Bliss Audio devices, be sure to select the RP2 dual reverse polarity cable
Runs on standard 9/12V power, 40 mA
51 x 51 x 27 mm
Compatibility : https://www.disasterareadesigns.com/shop/p/midi-box-one
