Midi controller

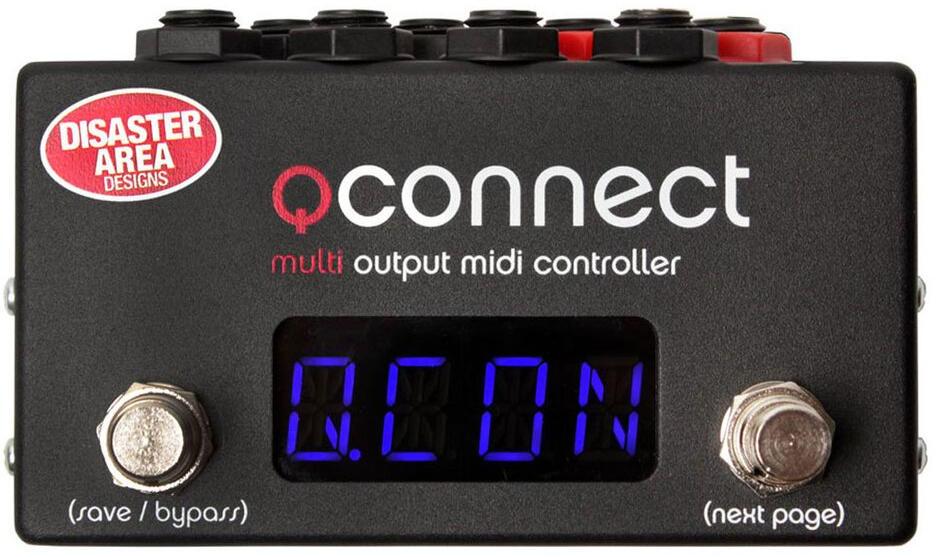

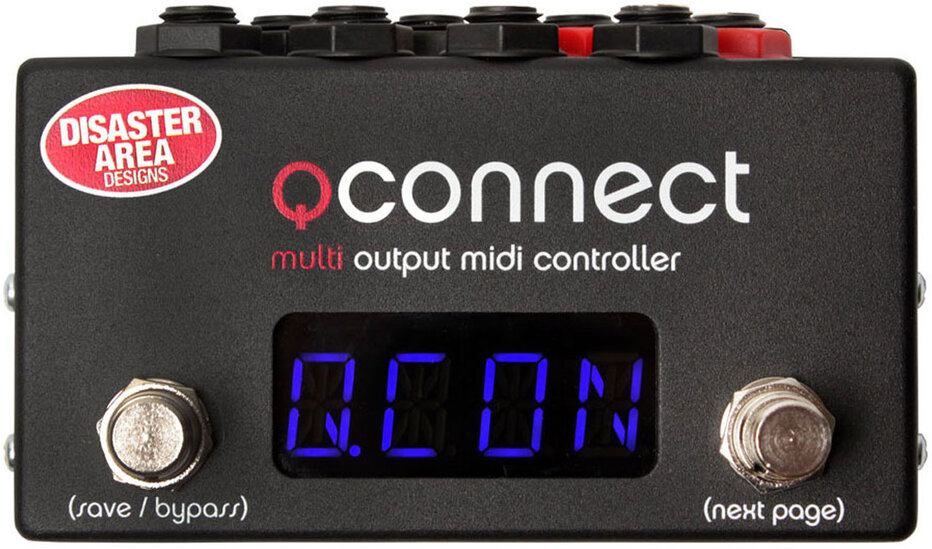

DISASTER AREA qCONNECT is a compact controller with eight 1/4" outputs, designed to control an entire pedalboard full of pedals by Chase Bliss Audio, Alexander, Empress, Meris, and Bondi.
qCONNECT also supports standard 5-pin MIDI pedals, and can control one USB MIDI device (Red Panda, Zoom, etc.) using our gHOST Adaptor Cable.

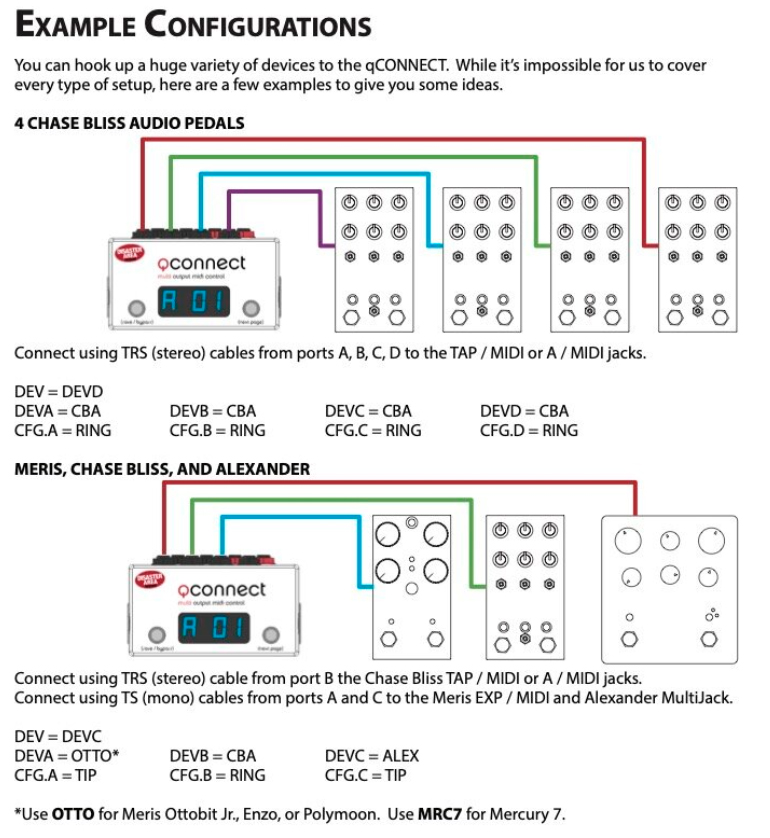

Simply connect your MIDI devices to the qCONNECT ports, then use our comprehensive setup menu to configure the port assignments and device routing. All of the qCONNECT ports may send MIDI on the ring (Chase Bliss) or on the tip (most other brands) without using jumpers or DIP switches.

Setting up your devices is easy – we offer simple step-by-step guides for all of the currently supported devices.

You can even link multiple qCONNECTs together to control very large pedal setups, or use a qCONNECT to expand the capabilities of your current controller.

Technical sheet

DISASTER AREA qCONNECT
SKU Disaster Area QCONNECT
Controls up to 9x MIDI devices
5-pin MIDI Input and Output

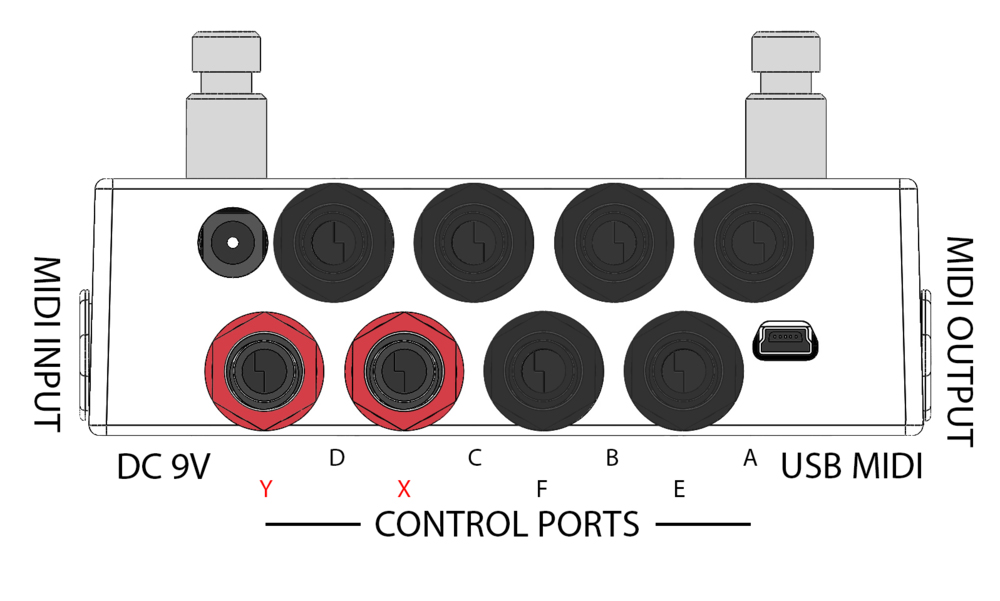

6x 1/4” MIDI outputs work on tip, ring, or both
2x MultiJack ports work as MIDI, Expression, Tap Tempo input
USB port (requires gHOST adapter for USB HOST)
Configure the port assignments and device routing
All of the qCONNECT ports may send MIDI on the ring (Chase Bliss) or on the tip (most other brands)
You can even link multiple qCONNECTs together to control very large pedal setups, or use a qCONNECT to expand the capabilities of your current controller
Step-by-step guides available for all of the currently supported devices
Runs on standard 9V power, 100mA or less
120 x 66 x 35 mm
