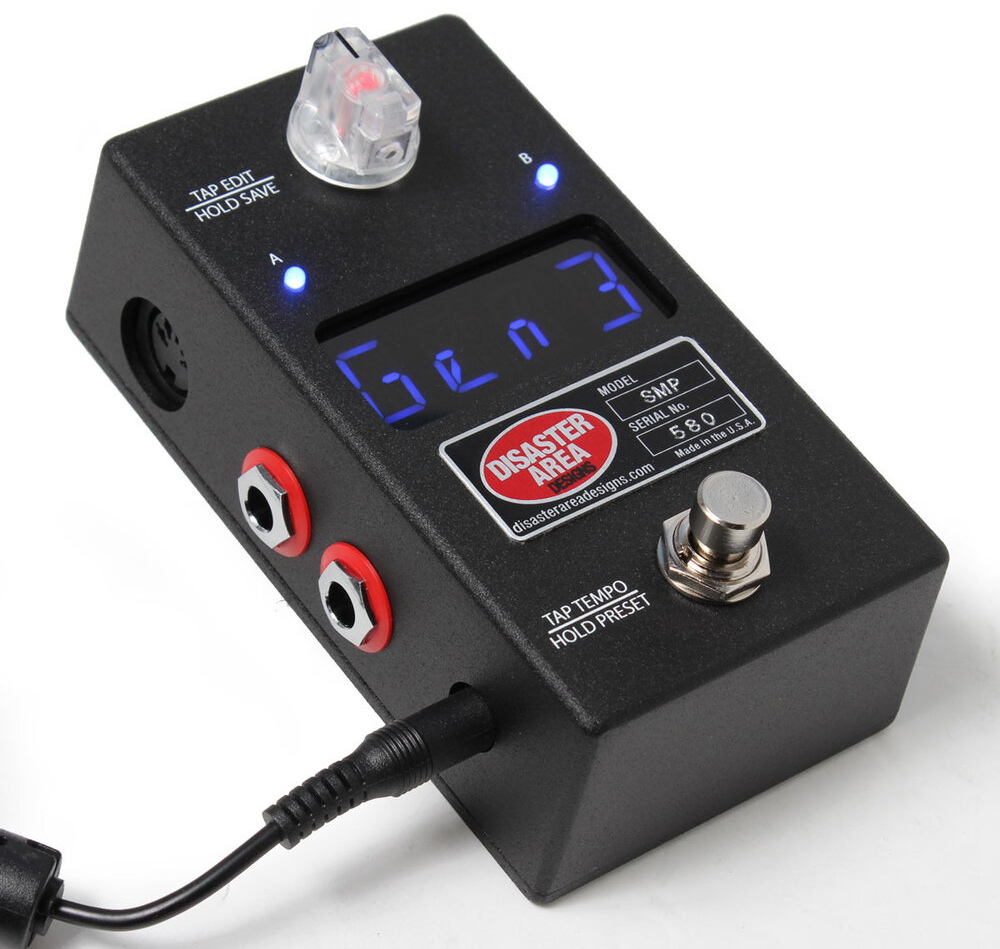

Disaster area SMARTClock Gen3

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Disaster Area Smartclock Gen3 Midi Controller - Midi controller - Main picture
  • Disaster Area Smartclock Gen3 Midi Controller - Midi controller - Variation 1
  • Disaster Area Smartclock Gen3 Midi Controller - Midi controller - Variation 2
VIDEO
VIDEO
219,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 98155
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Disaster area

Learn more about the Disaster area brand and discover the entire catalog.

MIDI controller buying guide

Everything you need to know about MIDI controllers and master keyboards before making your first purchase!

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Midi controller

Just tap the footswitch and all your gear will synchronize to its internal clock !
From 30-300 beats per minute, DISASTER AREA SMARTClock Gen3 MIDI Controller is a programmable (128 presets) tap tempo and clock generator for your rig, allowing to synchronize up to four separate tap-tempo devices plus multiple MIDI-clock capable units.

Don’t feel like tapping in the time ? Spin the illuminated knob to set the tempo in 1.0 or 0.5 BPM increments for more precise adjustments.
Tap the knob to view or change the subdivisions or output settings for each jack, then hold the knob to save the current settings to a preset.
Hold the footswitch down to advance to the next preset. You can even set the number of accessible presets so that you only use what you need.
Each tempo preset allows you to specify a tempo in BPM or milliseconds, as well as subdivisions or toggle settings for each of the 4 outputs. You can also set the SMARTClock to send a MIDI Program Change to an external MIDI device.

The MultiJack connectors can perform several different functions to simplify your setup :
- connect one or two 1/4" MIDI devices from companies such as Alexander Pedals, Chase Bliss Audio, Empress, and Meris
- connect an expression pedal to send MIDI messages to one or more of your devices.
- connect an external footswitch for tap tempo control.
- send tap tempo to an external device such as a DD-7, Panther Cub, Flint, and more.
Lire la suite

Technical sheet

  • DISASTER AREA SMARTClock Gen3 MIDI Controller
  • SKU Disaster Area SMARTCLOCK
  • Programmable tap tempo and clock generator for your pedalboard
  • Made in USA
  • Synchronize up to 4x separate tap-tempo pedals plus multiple MIDI-clock capable units
  • Sends tap signals and clock from 30-300 beats per minute
  • Receives external MIDI clock from a computer or other device, Tempo Outputs sync to incoming clock
  • Up to 128 user-accessible presets with user-definable names
  • 2x isolated optical relay powered Tempo Outputs or Function Switch Outputs
  • 2x MultiJack connectors can function as Tempo Outputs, Function Switch Outputs, Footswitch Inputs, or MIDI Outputs
  • MIDI input and output with full thru and merge functionality
  • Internal DIP switches to customize each output
  • Tap Tempo mode with selectable tap subdivisions for each output
  • Available subdivisions include Quarter, Dotted Eighth, Quarter Triplet, and Eighth Notes
  • Runs on standard 9V power, 100 mA
  • 120 x 66 x 35 mm
  • Manual : https://www.manualslib.com/manual/994170/Disaster-Area-Design-Smartclock.html
