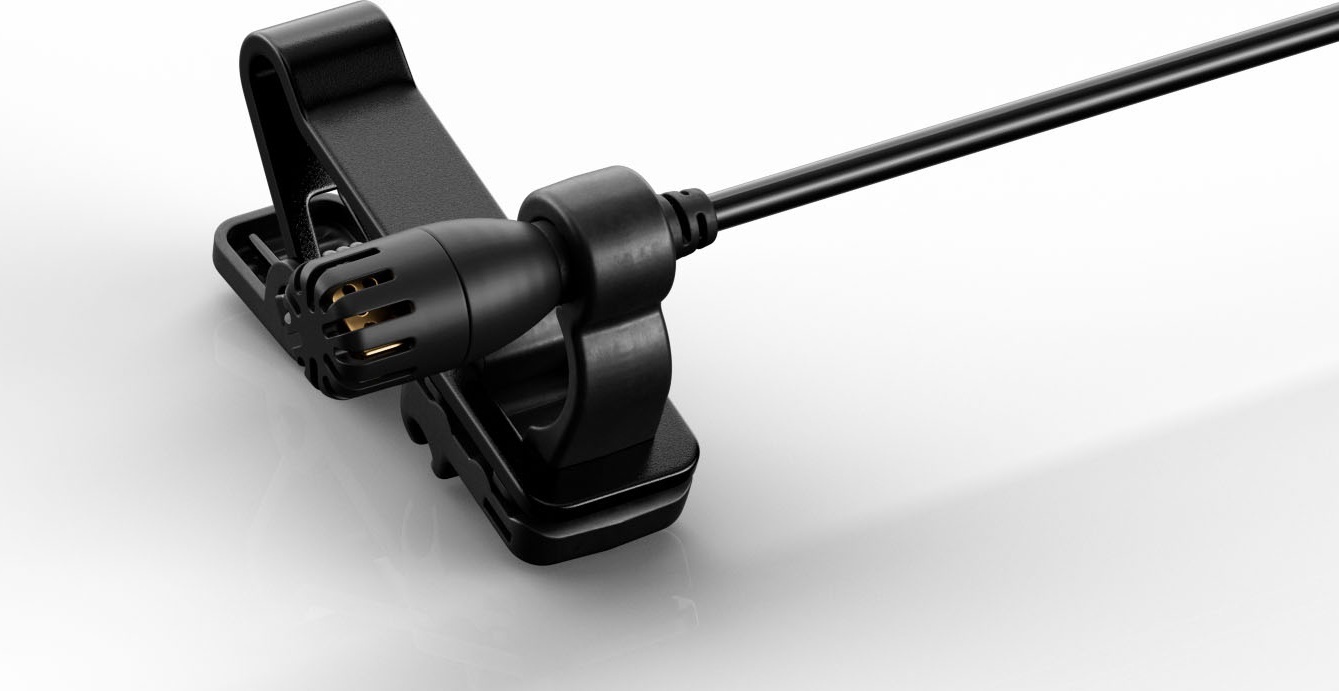

Lavalier microphone
The 2061 is a miniature omnidirectional microphone specially designed to capture the human voice with high fidelity. It reproduces natural, realistic sound, with excellent speech intelligibility and very little coloration, making it ideal for demanding professional environments.
Its compact design makes it virtually invisible when worn, while its reinforced mechanical structure ensures effective resistance to sweat and moisture. A safe choice for presentations, theater, conferences or television.
Its compact design makes it virtually invisible when worn, while its reinforced mechanical structure ensures effective resistance to sweat and moisture. A safe choice for presentations, theater, conferences or television.
Lire la suite
Technical sheet
- Microphone connector Mini jack
- Type of microphone Dynamic
- Directivity
- Omnidirectional
- Operating principle
- Pressure
- Capsule type
- Pre-polarized capacitor
- Frequency response
- 20 Hz - 20 kHz
- Effective range (±3 dB)
- 50 Hz - 16 kHz
- Soft boost of 3 dB between 8 - 16 kHz
- Sensitivity (nominal, ±3 dB at 1 kHz)
- 6 mV/Pa; -44 dB re. 1 V/Pa
- Equivalent noise level (A-weighted)
- Typ. 26 dB(A) re. 20 µPa
- Distortion (THD < 0.5%)
- 120 dB SPL RMS, 123 dB SPL peak
- Distortion (THD < 1%)
- 125 dB SPL RMS, 128 dB SPL peak
- Dynamic range
- Typ. 102 dB
- Max. SPL level (THD 10%)
- 137 dB SPL peak
- Nominal output impedance
- 112 Ω
- Minimum load impedance
- 5 kΩ
- Power supply (for full performance)
- For wireless systems: min. 5 V - max. 10 V
- Current consumption
- Typ. 0.6 mA
- Connectors
- Mini-jack
- Weight
- 10 g (0.35 oz)
- Microphone diameter
- 5.5 mm (0.22 in)
- Microphone length
- 9.7 mm (0.38 in)
- Cable length
- 1.5 m (4.9 ft) long
- Cable diameter
- 1.6 mm (0.06 in)
- Maximum output voltage (RMS)
- 1,6 V
- Polarity
- +V at output for positive acoustic pressure
- Temperature range
- -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)
- up to 90% RH
- Colors
- Black
- Polar diagram
- Omnidirectional
