Dpa 4018V-B-SL1

999,00 €

Not available at this moment

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

Variation(s) of this product.

The brand Dpa

Learn more about the Dpa brand and discover the entire catalog.

Discover

Find all the information on our superstores and our specialized boutiques.

find out more

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

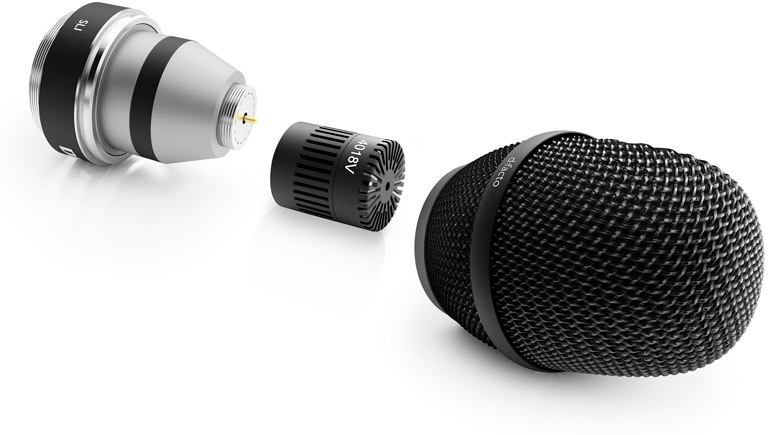

d:facto™ 4018V vocal microphone with SL1 adapter (Shure/Sony/Lectrosonics/Line6), supercardioid

Directivity
- Supercardioid
Operating principle
- Pressure gradient
Capsule type
- Pre-polarized condenser
Frequency response
- 20 Hz - 20 kHz
Effective range (±2 dB at 12 cm)
- 40 Hz - 16 kHz with soft boost of 3 dB at 12 kHz
Sensitivity (nominal, ±2 dB at 1 kHz)
- 5 mV/Pa; -46 dB re. 1 V/Pa
- 2 mV/Pa; -54 dB re. 1 V/Pa with wireless adapter
Equivalent noise level (A-weighted)
- Typ. 19 dB(A) re. 20 µPa (max. 21 dB(A))
Distortion (THD < 1%)
- 136 dB SPL RMS, 139 dB SPL peak
Dynamic range
- Typ. 120 dB
Max. SPL level (THD 10%)
- 160 dB SPL peak
Nominal output impedance
- 100 Ω
Minimum load impedance
- 1 kΩ
Cable capacity
- 100 m (328 ft)
Balanced output principle
- Impedance balancing with active control
Common-mode rejection ratio (CMRR)
- > 50 dB at 1 kHz
Power supply (for full performance)
- P48 (phantom power)
Current consumption
- max. 2.0 mA
Connector
- XLR-3M (Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase)
Weight
- 309 g (10.9 oz)
Microphone diameter
- 52 mm (2.05 in)
Capsule diameter
- 19 mm (0.75 in)
Microphone length
- 205 mm (8.1 in)
Maximum output voltage (RMS)
- 8 V
Polarity
- +V on pin 2 for positive sound pressure
Temperature range
- -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
- up to 90% RH
Color
- Matt black
Polar diagram
- Supercardioid
