Lavalier microphone

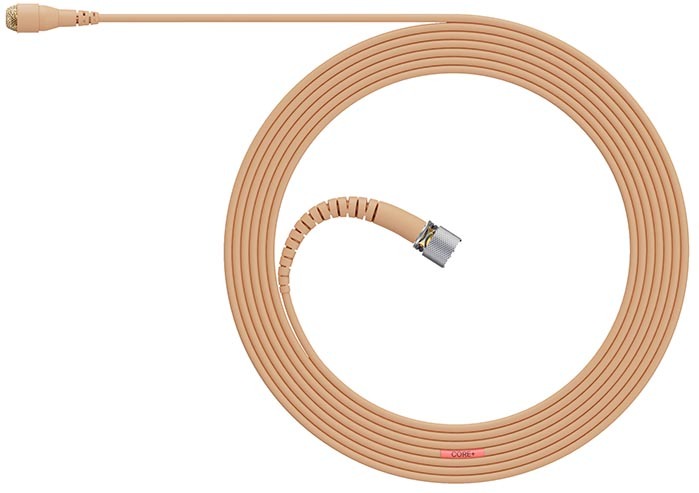

micro omni CORE+ 4061, Loud SPL, beige, MicroLock
Lire la suite
Technical sheet
- Microphone connector Other connectors
- Type of microphone Dynamic
Operating principle - Pressure
Capsule type - Pre-polarized condenser element with vertical diaphragm
Power supply - 5 V to 50 V via DPA adapter
Frequency response (±2 dB) - Soft boost grid: 20 Hz - 20 kHz, soft boost of 3 dB between 8 and 20 kHz
- High boost grid: 20 Hz - 20 kHz ±2 dB, 10 dB boost at 12 kHz
Directivity - Omnidirectional
Equivalent noise level - Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
- ITU-R BS.468-4 standard: Typ. 38 dB (max. 40 dB)
Total harmonic distortion - <1% up to 123 dB SPL (peak)
Preamplifier frequency range - 20 Hz to 50 kHz (+0 dB / -3 dB)
Output impedance - 30 to 40 ohms
Cable length capacity - Up to 300 m (984 ft)
Dimensions and weight - Microphone length: 12.7 mm
- Weight: <7.5 g (incl. cable and MicroLock connector)
- Cable length: 1.8 m (5.9 ft)
Cable color - Black
Dynamic range - Typ. 97 dB
S/N ratio - 68 dB(A) at 1 kHz and 1 Pa (94 dB SPL)
Connector - MicroLock
Sensitivity - 6 mV/Pa
- -44.5 dB re. 1 V/Pa
