Description

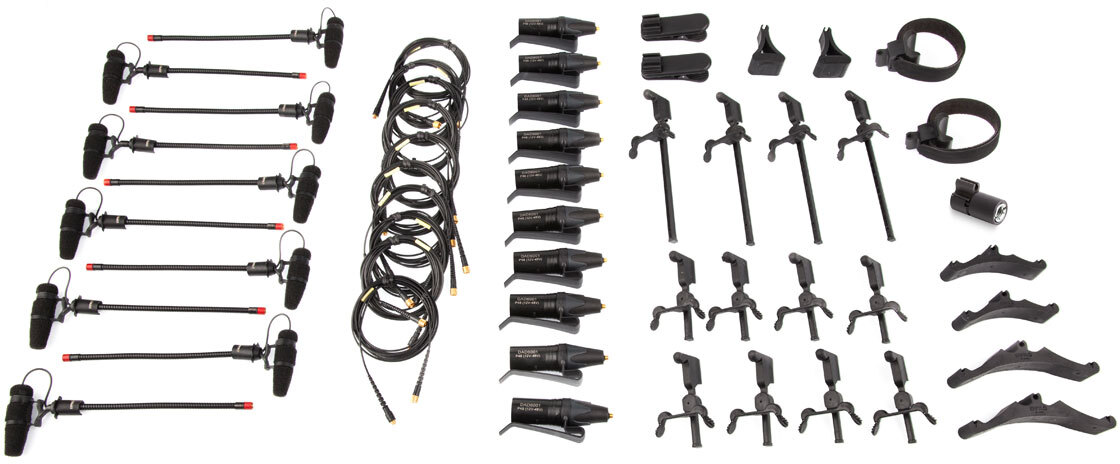

4099 CORE touring kit, 10 high-sensitivity microphones (Loud SPL) and accessories, in Peli.
The 4099 instrument microphone rejects unwanted noise and accurately captures the true voice of your instrument.to find out more, click here.
The 4099 instrument microphone rejects unwanted noise and accurately captures the true voice of your instrument.to find out more, click here.
Lire la suite
Technical sheet
- Directivity
- Supercardioid
- Operating principle
- Pressure gradient
- Capsule type
- Pre-polarized condenser
- Frequency response
- 20 Hz - 20 kHz
- Effective range ±2 dB (at 20 cm)
- 80 Hz - 15 kHz, with gentle 2 dB boost between 10 and 12 kHz
- Nominal sensitivity (±3 dB at 1 kHz)
- 6 mV/Pa
- -44 dB re. 1 V/Pa
- Equivalent noise level (A-weighted)
- Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
- Harmonic distortion (THD)
- < 1% at 128 dB SPL RMS, 131 dB SPL peak
- Dynamic range
- Typ. 108 dB
- Max. SPL level (THD 10%)
- 142 dB SPL (peak)
- Output impedance
- From MicroDot: 30 - 40 Ω
- With DAD4099-BC / DAD6001-BC: 100 Ω
- Cable length capacity
- Up to 300 m with XLR adapter
- Output balance
- Balanced signal with DAD4099-BC or DAD6001-BC
- CMRR
- > 60 dB from 50 Hz to 15 kHz (with XLR adapter DAD4099-BC / DAD6001-BC)
- Power supply
- For wireless systems: 5 - 10 V via DPA adapter
- With DAD4099-BC / DAD6001-BC: P48 (works from 12 V)
- Power consumption
- Typ. 1.5 mA (microphone only)
- 3.5 mA with XLR adapter
- Connector
- MicroDot
- Dimensions and weight
- Microphone diameter: 5.7 mm
- Microphone length: 45 mm
- Gooseneck length: 140 mm
- Microphone weight: 17 g
- Cable
- Length: 1.8 m
- Diameter: 1.6 mm / 2.2 mm
- Polarity
- +V to MicroDot pin for positive acoustic pressure (or pin 2 on DAD4099-BC / DAD6001-BC)
- Environmental conditions
- Temperature: -40°C to 45°C
- Relative humidity: up to 90%.
- Sensitivity tolerance
- ±1 dB at 1 kHz
- Compatible clips (weight)
- CM4099 (standard clip): 16 g
- AC4099 (accordion): 5 g
- BC4099 (double bass): 20 g
- CC4099 (cello): 13 g
- DC4099 (drums): 13 g
- GC4099 (guitar): 12 g
- PC4099 (piano): 19 g
- STC4099 (sax/trumpet): 7 g
- VC4099 (violin/mandolin): 10 g
- UC4099 (universal): 15 g
- MS4099 (microphone stand): 28 g
- CS4099 (flash shoe): 5 g
