Description

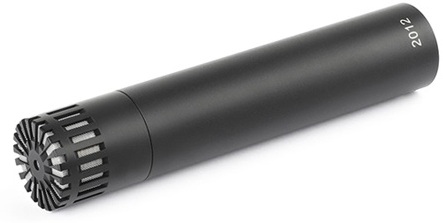

The 2012 cardioid microphone is a professional condenser microphone designed for close miking of instruments. Designed to deliver natural, accurate sound reproduction, it stands out for its great versatility: it's perfectly suited to a wide range of acoustic or amplified instruments.
With its uniform cardioid polar pattern, it picks up front-end sound with clarity while reducing unwanted noise from the sides and rear. Ideal both on stage and in the studio, this microphone has been designed to withstand the demanding conditions of live performance: its robust body withstands frequent handling and touring environments without fail.
With its uniform cardioid polar pattern, it picks up front-end sound with clarity while reducing unwanted noise from the sides and rear. Ideal both on stage and in the studio, this microphone has been designed to withstand the demanding conditions of live performance: its robust body withstands frequent handling and touring environments without fail.
Lire la suite
Technical sheet
- Directivity
- Cardioid
- Operating principle
- Pressure gradient
- Capsule type
- Pre-polarized condenser
- Frequency response
- 20 Hz - 20 kHz
- Effective range (±2 dB at 30 cm)
- 40 Hz - 20 kHz
- Sensitivity (nominal, ±2 dB at 1 kHz)
- 8 mV/Pa
- Equivalent noise level (A-weighted)
- Typ. 20 dB(A) re 20 µPa (max. 22 dB(A))
- Total harmonic distortion (THD < 1%)
- 148 dB SPL, 151 dB SPL peak
- Dynamic range
- Typ. 131 dB
- Max. SPL level (THD 10%)
- 156 dB SPL peak
- Nominal output impedance
- 60 Ω
- Minimum load impedance
- 2 kΩ
- Cable capacity
- 100 m (328 ft)
- Balanced output principle
- Impedance balancing with active control
- Common-mode rejection ratio (CMRR)
- > 60 dB
- Power supply (for full performance)
- P48 (phantom power)
- Current consumption
- 0.7 mA
- Connector
- XLR-3M (Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase)
- Weight
- 83 g (2.9 oz)
- Microphone diameter
- 19 mm (0.75 in)
- Capsule diameter
- 17 mm (0.67 in)
- Microphone length
- 94 mm (3.7 in)
- Maximum output voltage (RMS)
- 8.7 V (21 dBu)
- Polarity
- +V on pin 2 for positive acoustic pressure
- Temperature range
- -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)
- Up to 90% RH
- Color
- Black
