Description

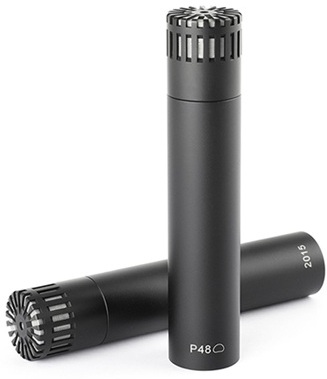

Stereo pair with 2 x 2015, clips and windscreens
Lire la suite
Technical sheet
- Directivity
- Wide cardioid
- Operating principle
- Pressure gradient
- Capsule type
- Pre-polarized condenser
- Frequency response
- 20 Hz - 20 kHz
- Effective range (±2 dB at 30 cm)
- 40 Hz - 18 kHz
- Sensitivity (nominal, ±2 dB at 1 kHz)
- 12 mV/Pa
- Equivalent noise level (A-weighted)
- Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
- Distortion (THD < 1%)
- 147 dB SPL, 150 dB SPL peak
- Dynamic range
- Typ. 132 dB
- Max. SPL level (THD 10%)
- 153 dB SPL peak
- Nominal output impedance
- 60 Ω
- Minimum load impedance
- 2 kΩ
- Cable capacity
- 100 m (328 ft)
- Balanced output principle
- Impedance balancing with active control
- Common-mode rejection ratio (CMRR)
- > 60 dB
- Power supply (for full performance)
- P48 (phantom power)
- Current consumption
- 0.7 mA
- Connector
- XLR-3M (Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase)
- Weight
- 83 g (2.9 oz)
- Microphone diameter
- 19 mm (0.75 in)
- Capsule diameter
- 17 mm (0.67 in)
- Microphone length
- 94 mm (3.7 in)
- Maximum output voltage (RMS)
- 8.7 V (21 dBu)
- Polarity
- +V on pin 2 for positive sound pressure
- Temperature range
- -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)
- up to 90% RH
- Color
- Black
- Polar diagram
- Wide cardioid
