Wired microphones set

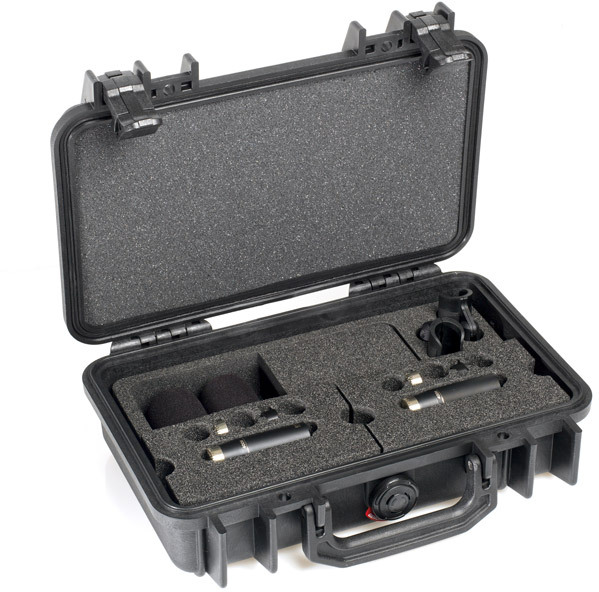

Stereo pair with 2 x 4006A, clamps and windscreens in Peli Case
Lire la suite
Technical sheet
- Hand Microphone No
- Directivity
- Omnidirectional
- Operating principle
- Pressure
- Capsule type
- Pre-polarized capacitor
- Frequency response
- 10 Hz - 20 kHz
- Effective range (±2 dB)
- 10 Hz - 20 kHz
- Sensitivity (nominal, ±2 dB at 250 Hz)
- 36 mV/Pa; -28.9 dB re. 1 V/Pa
- Equivalent noise level (A-weighted)
- Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
- Equivalent noise level (ITU-R BS.468-4)
- Typ. 27 dB (max. 29 dB)
- Distortion (THD < 1%)
- 133 dB SPL RMS, 136 dB SPL peak
- Dynamic range
- Typ. 121 dB
- Max. SPL level (THD 10%)
- 146 dB SPL peak
- Switchable attenuator / filters
- 0 dB / -20 dB
- Nominal output impedance
- 200 Ω
- Minimum load impedance
- 2 kΩ
- Cable capacity
- 100 m (328 ft)
- Balanced output principle
- Impedance balancing with active control
- Common-mode rejection ratio (CMRR)
- > 60 dB
- Power supply (for full performance)
- P48 (phantom power)
- Current consumption
- 2.8 mA
- Connector
- XLR-3M (Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase)
- Weight
- 163 g (5.7 oz)
- Microphone diameter
- 16 - 19 mm (0.6 - 0.75 in)
- Capsule diameter
- 16 mm (0.6 in)
- Microphone length
- 170 mm (6.7 in)
- Maximum output voltage (RMS)
- 8,0 V
- Polarity
- +V on pin 2 for positive acoustic pressure
- Temperature range
- -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)
- Up to 90% RH
- Matching tolerance (frequency response and sensitivity)
- ±0.5 dB
- Phase deviation (stereo kit)
- < 5°
- Color
- Matt black
- Polar diagram
- Omnidirectional
