Dpa ST4006C

3999,00 €

Not available at this moment

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

The brand Dpa

Learn more about the Dpa brand and discover the entire catalog.

Discover

What microphone should you buy to record voice, guitar or drums? Everything is explained through this buying guide!

To consult

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

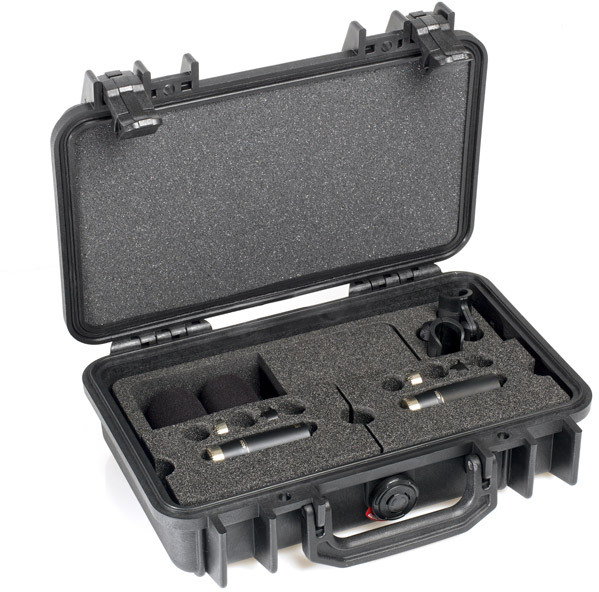

Stereo pair with 2 x 4006C, clamps and windscreens in Peli Case

Directivity
- Omnidirectional
Operating principle
- Pressure
Capsule type
- Pre-polarized capacitor
Frequency response
- 10 Hz - 20 kHz
Effective range (±2 dB)
- 20 Hz - 20 kHz
Sensitivity (nominal, ±2 dB at 250 Hz)
- 36 mV/Pa; -28.9 dB re. 1 V/Pa
Equivalent noise level (A-weighted)
- Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level (ITU-R BS.468-4)
- Typ. 27 dB (max. 29 dB)
Distortion (THD < 1%)
- 128 dB SPL RMS, 131 dB SPL peak
Dynamic range
- Typ. 116 dB
Max. SPL level (THD 10%)
- 139 dB SPL peak
Nominal output impedance
- 100 Ω
Minimum load impedance
- 2 kΩ
Cable capacity
- 100 m (328 ft)
Balanced output principle
- Impedance balancing with active control
Common-mode rejection ratio (CMRR)
- > 50 dB
Power supply (for full performance)
- P48 (phantom power)
Current consumption
- 2.8 mA
Connector
- XLR-3M (Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase)
Weight
- 63 g (2.2 oz)
Microphone diameter
- 16 - 19 mm (0.6 - 0.75 in)
Capsule diameter
- 16 mm (0.6 in)
Microphone length
- 64 mm (2.5 in)
Maximum output voltage (RMS)
- 4,5 V
Polarity
- +V on pin 2 for positive acoustic pressure
Temperature range
- -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
- Up to 90% RH
Matching tolerance (frequency response and sensitivity)
- ±0.5 dB
Phase deviation (stereo kit)
- < 5°
Polar diagram
- Omnidirectional
