Reverb, delay & echo effect pedal

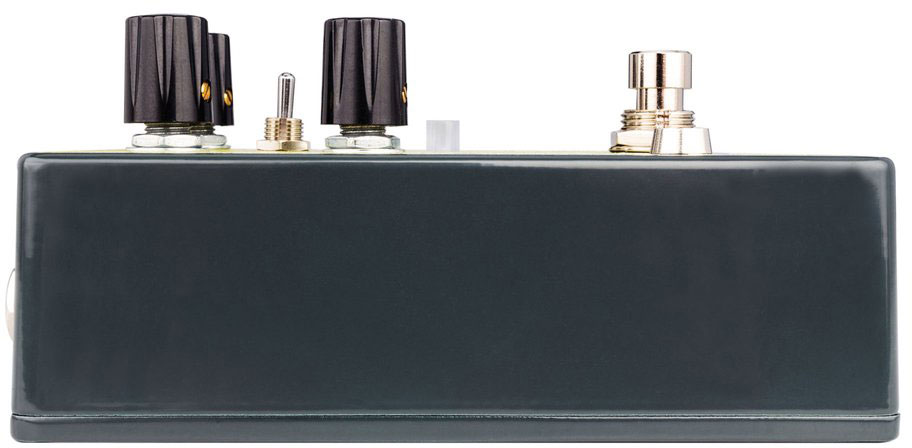

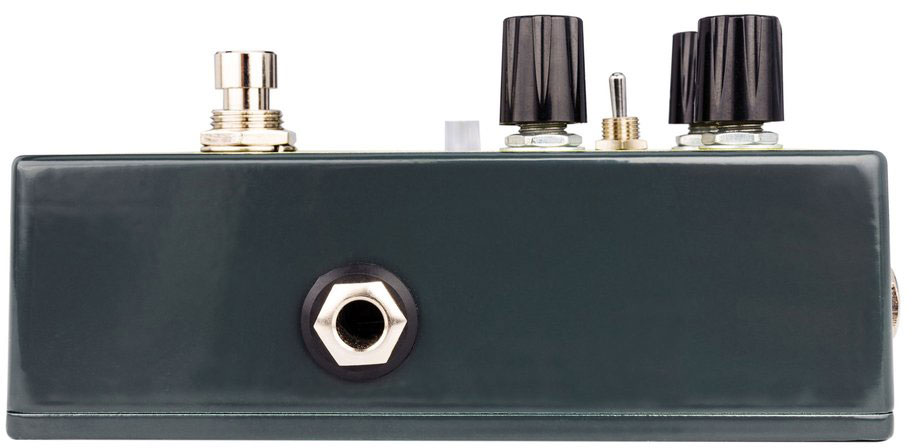

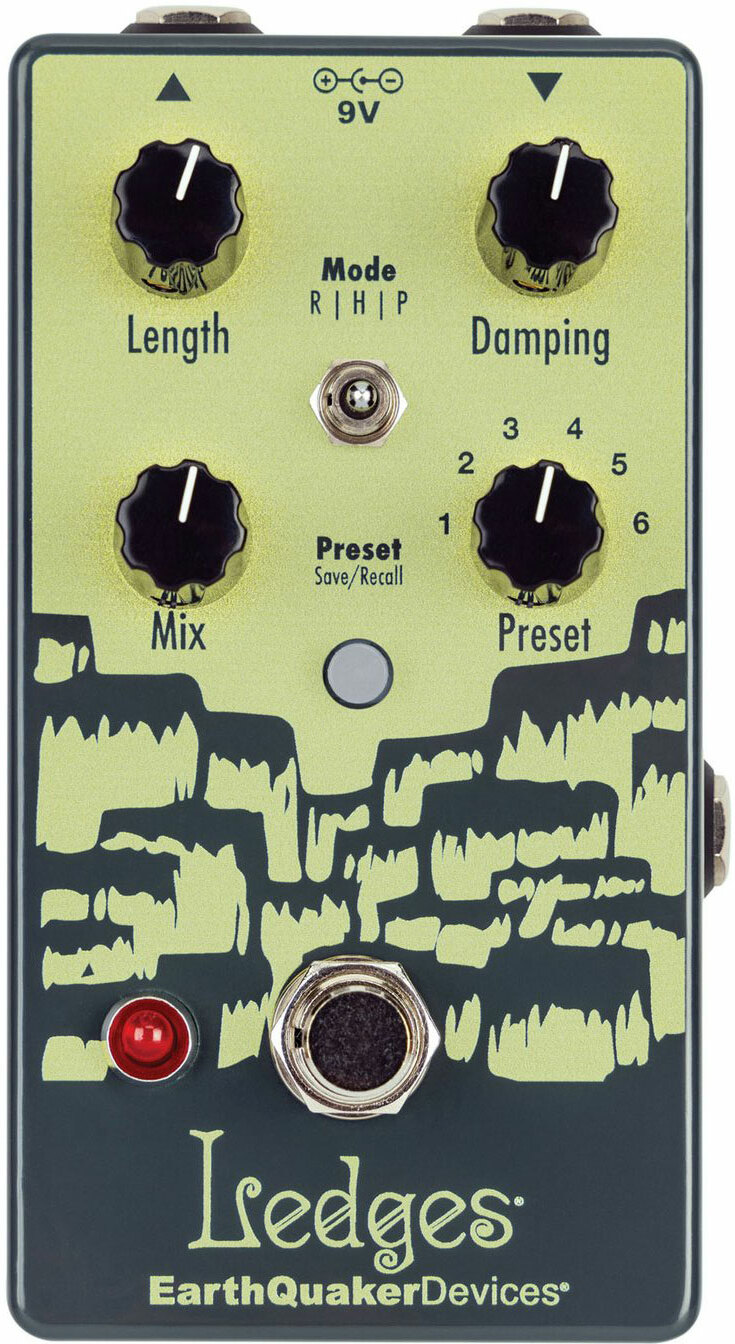

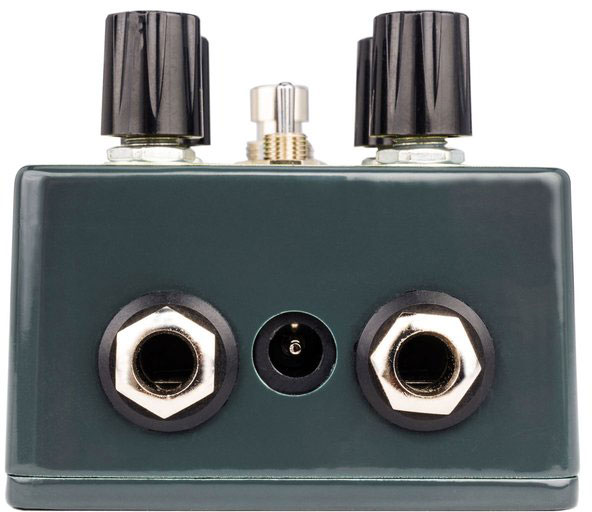

Compatible with guitar, bass and synth, the EARTHQUAKER DEVICES Ledges Tri-Dimensional Reverberation Machine is a reverb pedal featuring three algorithms (Room, Hall, Plate) and six memorable presets for storing and recalling your favorite settings. In "Live Mode" you use the pedal in the traditional way, adjusting parameters on the fly to suit your needs. In "Preset Mode" you can recall pre-recorded presets, or control Length, Damping or Mix parameters via the TRS expression pedal (assignments can be different for each preset).
The Ledges is equipped with Flexi-Switch technology for momentary and latching switching. For standard latching mode, press the pedal once to activate the effect, then press it again to bypass it. For momentary mode, hold down the footswitch for as long as you wish to use the effect. As soon as you release the switch, the effect is bypassed.
The Ledges is equipped with Flexi-Switch technology for momentary and latching switching. For standard latching mode, press the pedal once to activate the effect, then press it again to bypass it. For momentary mode, hold down the footswitch for as long as you wish to use the effect. As soon as you release the switch, the effect is bypassed.
Lire la suite
Technical sheet
- for electric guitar Yes
- Reverb Yes
- EARTHQUAKER DEVICES Ledges Tri-Dimensional Reverberation Machine
- SKU Earthquaker Devices EQDLEDGV1EU
- Programmable reverb
- For electric guitar/bass, synths
- Handcrafted in the USA
- 2023
- 3x modes: Room, Plate, Hall
- 6x memorable presets to store and recall your favorite settings
- 2x operating modes (Live Mode/Preset Mode)
- TRS assignable expression pedal input to control Length, Damping or Mix parameters (assignments can be different on each preset)
- True bypass
- Soft, silent Flex-Switch relay switch. Can act in on/off or stealth mode
- Metal chassis
- Power supply via optional 9-volt DC adapter (2.1mm barrel plug, negative center, 80 ma)
- No battery operation
- 121 x 63.5 x 58 mm - 4.75 x 2.50 x 2.25 inches
- English manual: https://rb.gy/jcqdb
