Overdrive, distortion, fuzz effect pedal for bass
Developed in collaboration with Japanese bassist Kentaro Nakao, the EARTHQUAKER DEVICES Scrolls Bass Odyssey pedal is a powerful professional-grade tool combining tube-amp-style saturation and active EQ circuits.
Equipped with intelligent connectors (three separate outputs) for flexible signal routing, and analog filtering on the balanced output to faithfully simulate the grain of a cabinet, you can use the Scrolls in any situation: live, in the studio, as a complement to your rig or directly on a console.

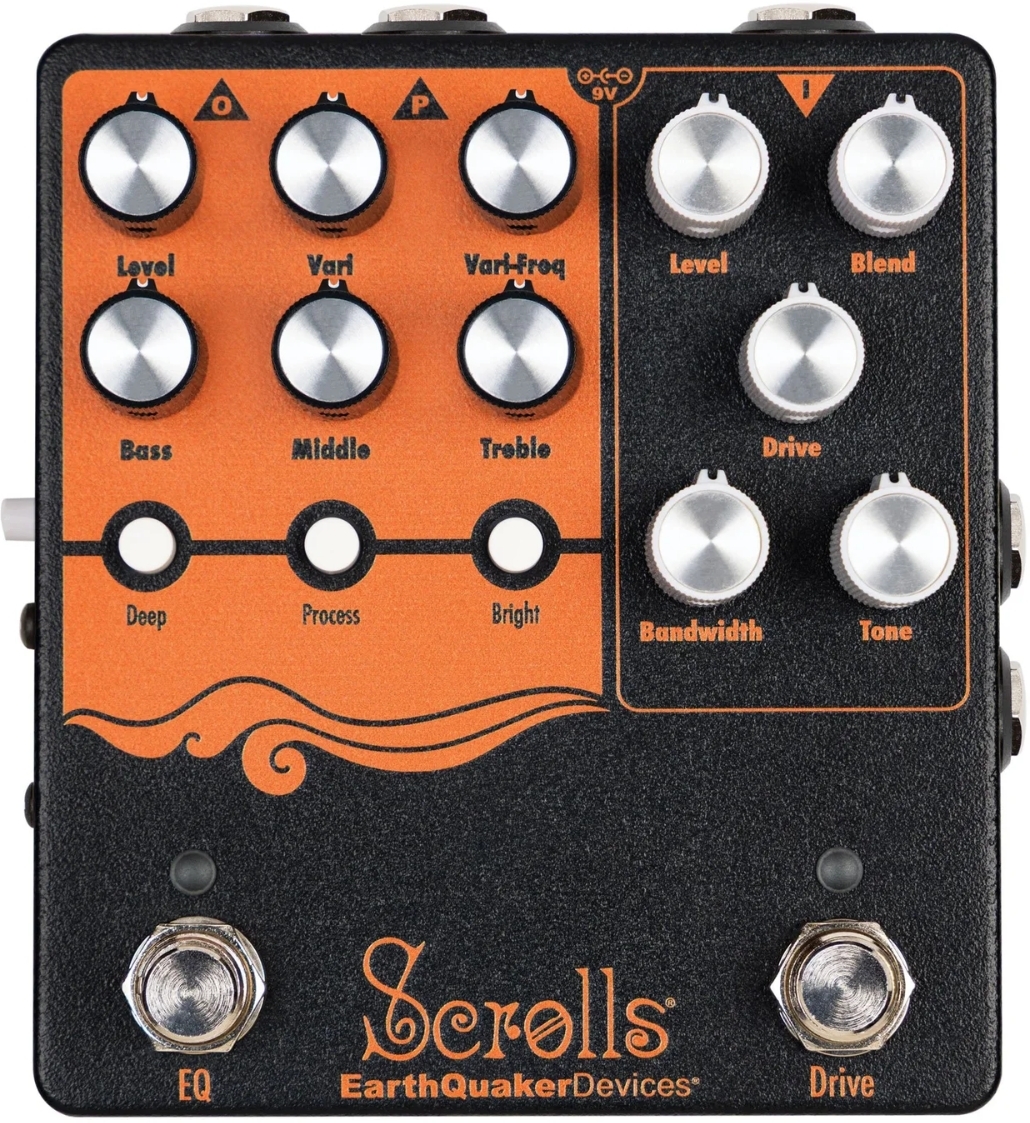

The left-hand section of the pedal features audiophile-grade three-band EQ. The Scrolls' secret weapon is the "Variable Frequency" control, which adjusts each frequency from 20 Hz to 10 kHz.
Three push-buttons add filtering capabilities for optimum flexibility.
The right-hand side of the effect is reserved for saturation. Settings are both comprehensive and intuitive. As with all quality bass processors, a "Blend" potentiometer lets you adjust the level of the direct signal present in the saturated signal, for maximum definition and bass presence in all circumstances.
The "Bandwidth" potentiometer lets you determine in which zone of the frequency band clipping will be prevalent (bass on the left, treble on the right).
All three outputs can be operated simultaneously.
- the buffered parallel output redirects the direct signal to an amp, tuner, DI or other effect

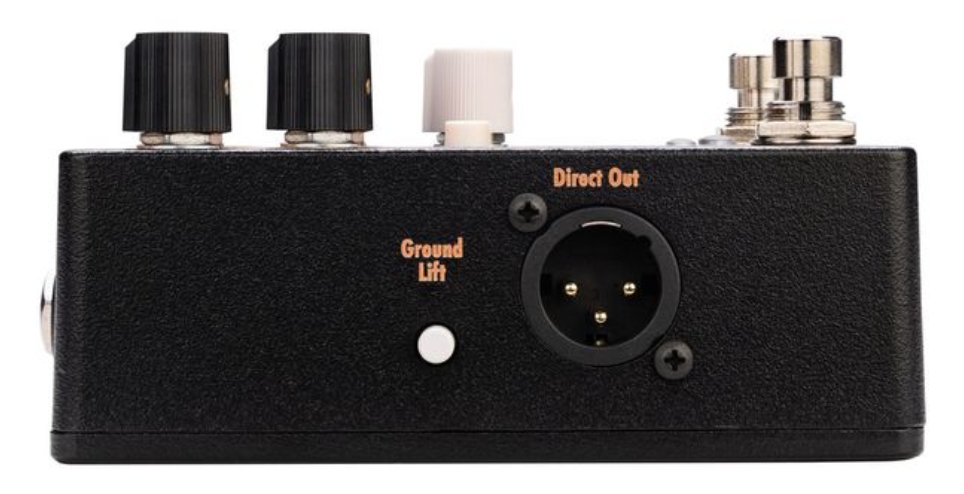

- the balanced XLR output can be used to drive a PA system or recording console

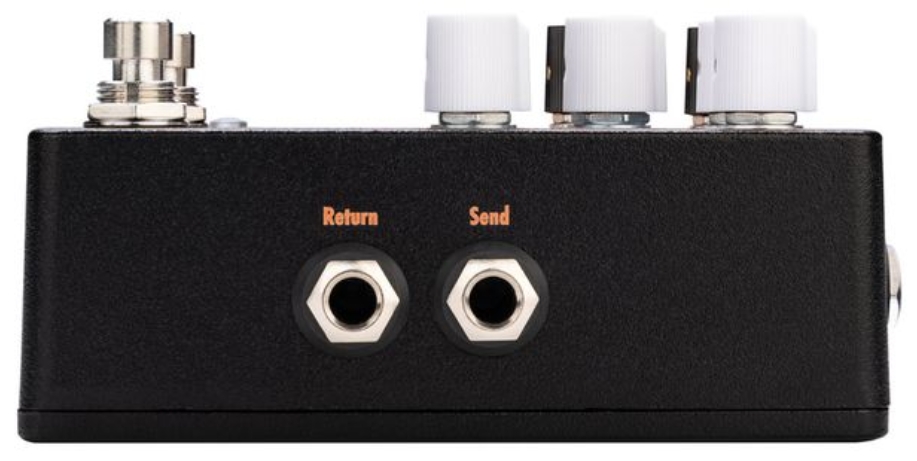

- an effects loop installed between the EQ and drive sections lets you insert modulation, temporal or other effects
Efficient controls allow you to sculpt your sound in any musical register, from Motown to modern metal, blues, garage rock or funk.
Equipped with intelligent connectors (three separate outputs) for flexible signal routing, and analog filtering on the balanced output to faithfully simulate the grain of a cabinet, you can use the Scrolls in any situation: live, in the studio, as a complement to your rig or directly on a console.
The left-hand section of the pedal features audiophile-grade three-band EQ. The Scrolls' secret weapon is the "Variable Frequency" control, which adjusts each frequency from 20 Hz to 10 kHz.
Three push-buttons add filtering capabilities for optimum flexibility.
The right-hand side of the effect is reserved for saturation. Settings are both comprehensive and intuitive. As with all quality bass processors, a "Blend" potentiometer lets you adjust the level of the direct signal present in the saturated signal, for maximum definition and bass presence in all circumstances.
The "Bandwidth" potentiometer lets you determine in which zone of the frequency band clipping will be prevalent (bass on the left, treble on the right).
All three outputs can be operated simultaneously.
- the buffered parallel output redirects the direct signal to an amp, tuner, DI or other effect
- the balanced XLR output can be used to drive a PA system or recording console
- an effects loop installed between the EQ and drive sections lets you insert modulation, temporal or other effects
Efficient controls allow you to sculpt your sound in any musical register, from Motown to modern metal, blues, garage rock or funk.
Lire la suite
Technical sheet
- Booster Yes
- Distortion Yes
- for bass Yes
- Overdrive Yes
- EARTHQUAKER DEVICES Scrolls Bass Odyssey
- SKU Earthquaker Devices
- Tube amp-style saturation + active equalizer
- For electric bass
- Hand-built in the USA
- Independent saturation circuit
- Independent 3-band active equalizer circuit
- Parallel buffered output for direct signal (Parallel Out)
- Balanced XLR output with subtle analog filtering (Direct Out)
- Effects loop between Drive and EQ stages
- Controls and connectors (see images)
- True bypass relay switch
- Operates with optional 9-volt DC adapter
- Current consumption 70 mA
- 121 × 114 × 57 mm (with knobs)
- English manual (https://tinyurl.com/yssbn2p5)
