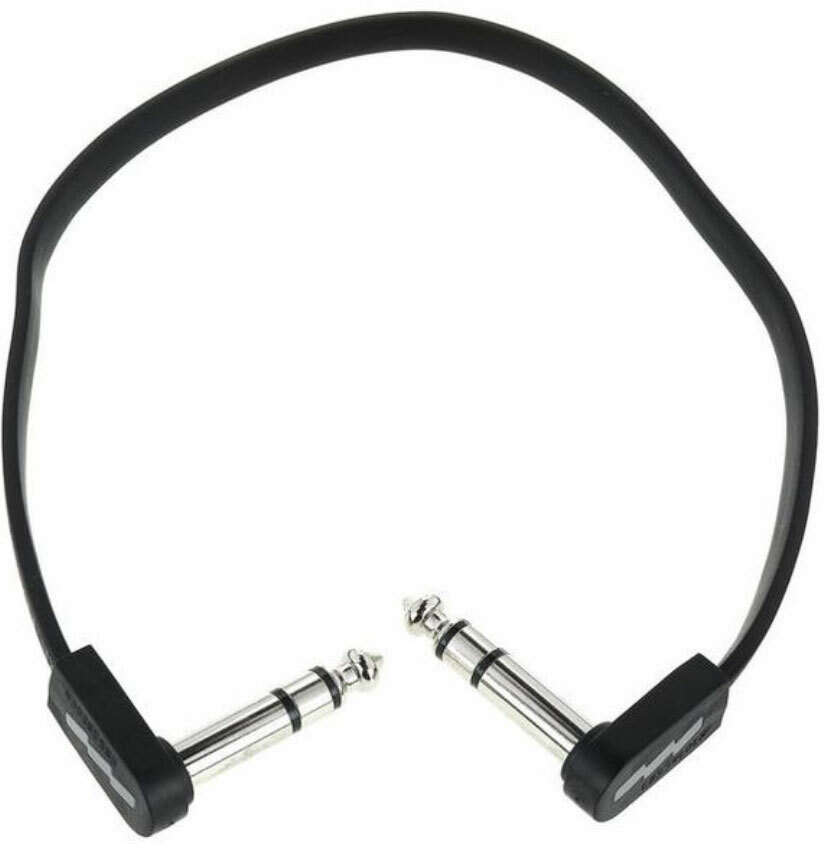

Ebs PCF Deluxe Stereo TRS Flat Patch Cable DLS-28
- Read reviews (0)
- Similar products
The brand Ebs
Learn more about the Ebs brand and discover the entire catalog.
The largest network of stores in France
Find all the information on our superstores and our specialized boutiques.
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Patch
If you have ever struggled with limited space on your pedalboard, the super compact and affordable EBS PCF Deluxe Stereo TRS Flat Patch Cable DLS-28 will help end the frustration.
It performs excellently on sound and flexibility while reducing the required space between pedals to a minimum by its unique design.
It performs excellently on sound and flexibility while reducing the required space between pedals to a minimum by its unique design.
Technical sheet
- EBS PCF Deluxe Stereo TRS Flat Patch Cable DLS-28
- SKU EBS MEB PCF-DLS28
- 28 cm
- Extremely Well Double Shielded
- Low Resistance
- Flexible copper conductor low voltage -audio signal system
- Operating Temperature: -15ºC to +70°C
- Outer Insulation: PVC (Polyvinyl Chloride)
- Signal Copper Cores: 20 x 0,12mm
- Signal Insulation: PE (polyethylene)
- Copper Twisted Shield: 38 x 0,12mm
- Capacitance Cond./Shield: < 10 pF/decimeters
- Conductor Resistance: < 10 mOhm/decimeters
- Super Compact Angled Contacts
- 6 x 3 mm (rectangular cable)
- 30,0 x 13,0 x 6,0 mm (contact house)

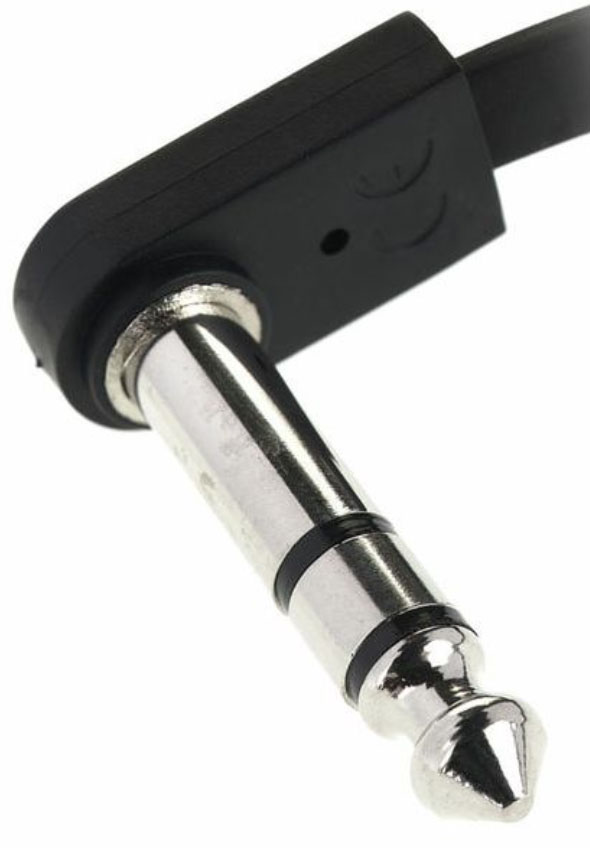

- Connectors : ¼” 90 degrees angled audio plug
