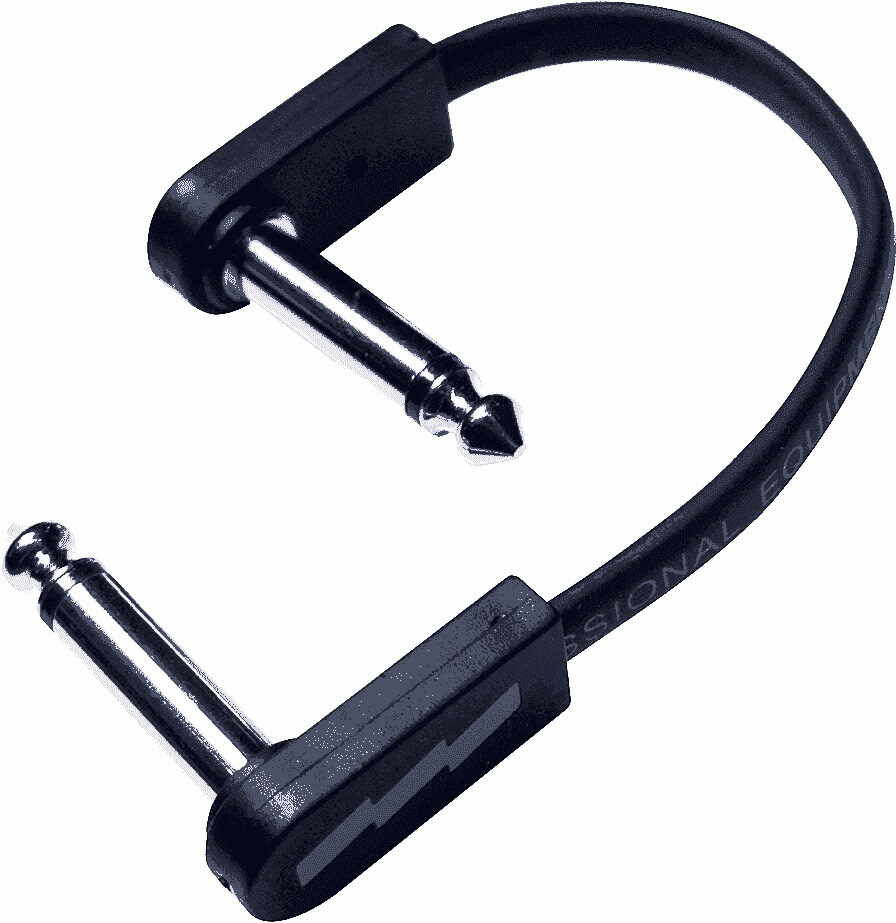

Ebs PCF-DL10 Deluxe Flat Patch Cable

  • Read reviews (1)
  • Similar products
  • Ebs Pcf-dl10 Deluxe Flat 10cm Coude - Patch - Main picture
  • Ebs Pcf-dl10 Deluxe Flat 10cm Coude - Patch - Variation 1
  • Ref : 64424
7,35 €
  • Low prices guaranteed
  • Warranty solely against manufacturing defects
In stock
deliverable in 24 hours
Stock in store
See availability. Store
La Pédale by Star's Music
Star's Music Bordeaux
Star's Music Bruxelles
Star's Music Lille
Star's Music Lyon
Star's Music Toulouse
Variation(s) of this product.

The brand Ebs

Learn more about the Ebs brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Patch

THE EBS PCF-DL10 Deluxe Flat Patch Cable (10 cm) IS AN ORIGINAL DESIGN BY EBS. DUE TO THE CLEVER SPACE SAVING DESIGN, THE CABLES HAVE BECOME THE PATCH CABLE-TO-GO FOR MUSICIANS ALL OVER THE WORLD. THE NEW 'DELUXE' CABLE (PCF-DL) IS IMPROVED ON SEVERAL POINTS AND IS REPLACING THE 'PCF' MODEL FROM NOW.

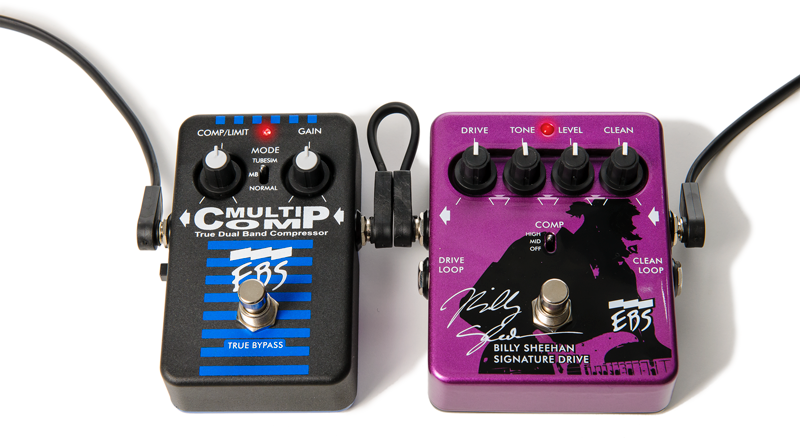

The original flat patch cables from EBS are tailored to make possible to reduce space on your pedalboard, while maintaining the flexibility of using cables. The flat design also reduce the risk of cable jams, and keep your setup neat and clean. The latest update include a reinforced cable housing and added copper cords that improve durability and performance.
Lire la suite

Technical sheet

  • Flat Patch Cable
  • 10 cm
  • Copper Conductors
  • Super Compact Angled Contacts
  • Extremely Well Double Shielded
  • Low Resistance
  • Conductor: Flexible copper conductor low voltage -audio signal system
  • Operating Temperature: -15ºC to +70°C
  • Outer Insulation: PVC (Polyvinyl Chloride)
  • Signal Copper Cores: 20 x 0,12mm
  • Signal Insulation: PE (polyethylene)
  • Copper Twisted Shield: 38 x 0,12mm
  • Capacitance Cond./Shield: < 10 pF/decimeters
  • Conductor Resistance: < 10 mOhm/decimeters
  • Dimensions: 6 x 3 mm (rectangular cable)
  • 30,0 x 13,0 x 6,0 mm (contact house)
  • Connectors : ¼” 90 degrees angled audio plug
More specifications
Fewer specifications

User reviews : 1 notice

posted 2020/06/22 09:26:51 OLIVIER M.
Peu encombrant, câble bien souple, résistant, il convient parfaitement pour les petits espaces entre pédales ou mini-pédales.
