Amp footswitch

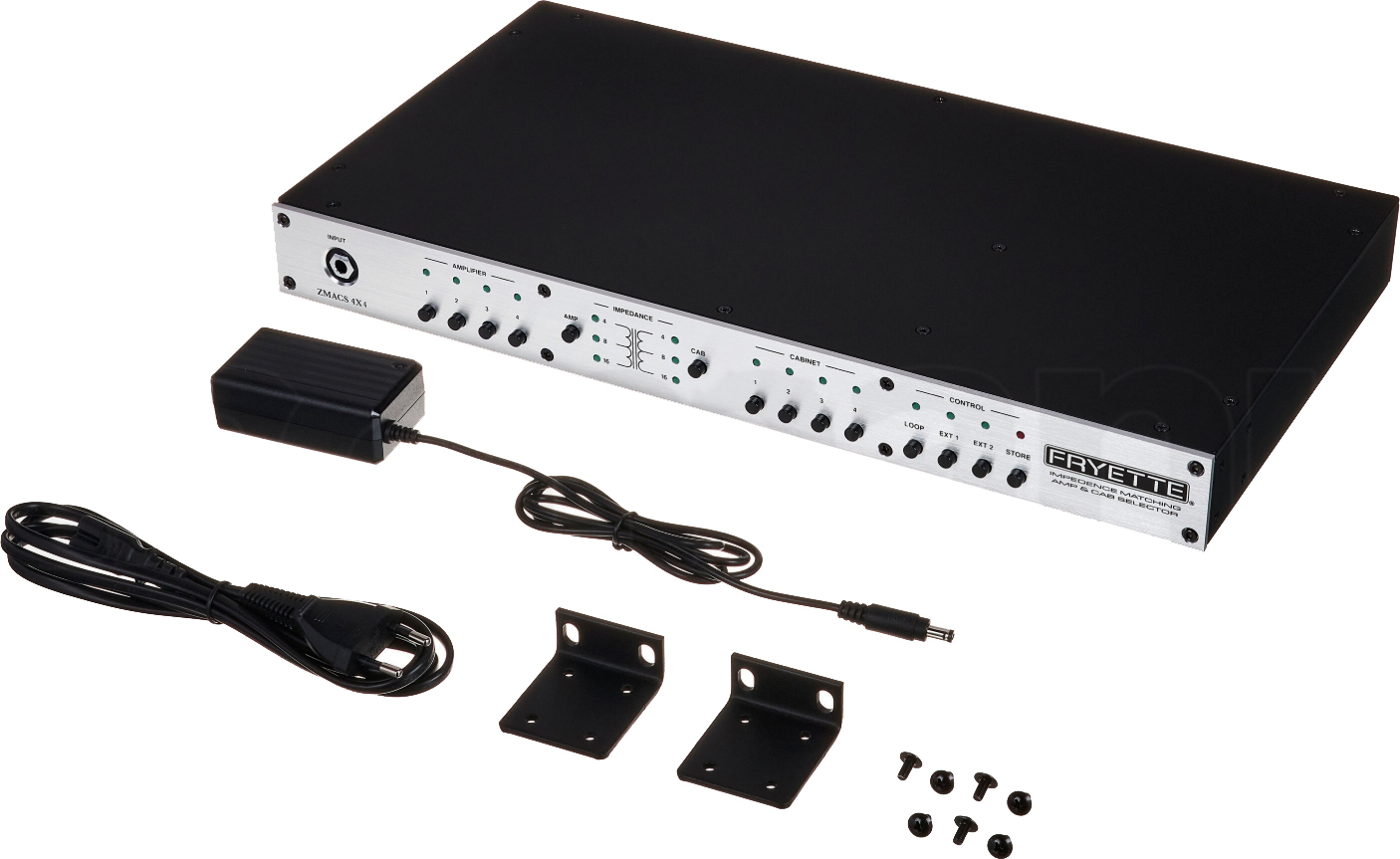

With a built-in studio grade impedance matching transformer, simple to operate and flexible solution, the FRYETTE ZMACS 4X4 Impedance Matching Amp and Cabinet Selector allows switching between any of four amplifiers, four cabs and two attenuators (two cabs simultaneously).
ZMACS safely handles 100 watts of continuous amplifier power, with selectable and programmable amp and cabinet impedance (2/4, 8 and 16 Ohms). There is an internal load for each unused amplifier output.
ZMACS safely handles 100 watts of continuous amplifier power, with selectable and programmable amp and cabinet impedance (2/4, 8 and 16 Ohms). There is an internal load for each unused amplifier output.
Lire la suite
Technical sheet
- FRYETTE Impedance Matching Amp and Cabinet Selector
- SKU Fryette ZMACS
- Allows switching between any of 4 amplifiers, 4 cabs and 2 attenuators
- Crafted in USA
- 100% analog signal path
- Allows selection of 2 cabs simultaneously
- Safely handles 100 watts of continuous amplifier power
- Built-in high-fidelity audio grade impedance matching transformer
- Selectable Amp impedance - 2/4, 8 and 16 Ohms (programmable)
- Selectable Cabinet impedance - 2/4, 8 and 16 Ohms (programmable)
- Safety internal load for each unused amplifier output
- Switched and unswitched attenuator loops
- Front and rear panel instrument inputs
- Passive and active (buffered) instrument inputs
- Link Out for ganging multiple switching units
- Fully MIDI programmable and simple to operate
- Last used preset memory
- Long cable load transfer
- Silent switching in all modes with no dropouts, pops or clicks
- Transformer isolated amplifier input sends eliminate annoying ground loop issues
- Remote switching control port controls Power Station PS-100 channel and loop select functions
- QuickSwitch mode allows simple preset selection when MIDI is not required
- Manual : https://tinyurl.com/nfztfret
