Gainlab audio Bishop

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Gainlab Audio Bishop - Equalizer / channel strip - Main picture
  • Gainlab Audio Bishop - Equalizer / channel strip - Variation 1
  • Ref : 116683
2733,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
shipped under 0/0 days
Stock in store
Not available in store

The brand Gainlab audio

Learn more about the Gainlab audio brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Equalizer / channel strip

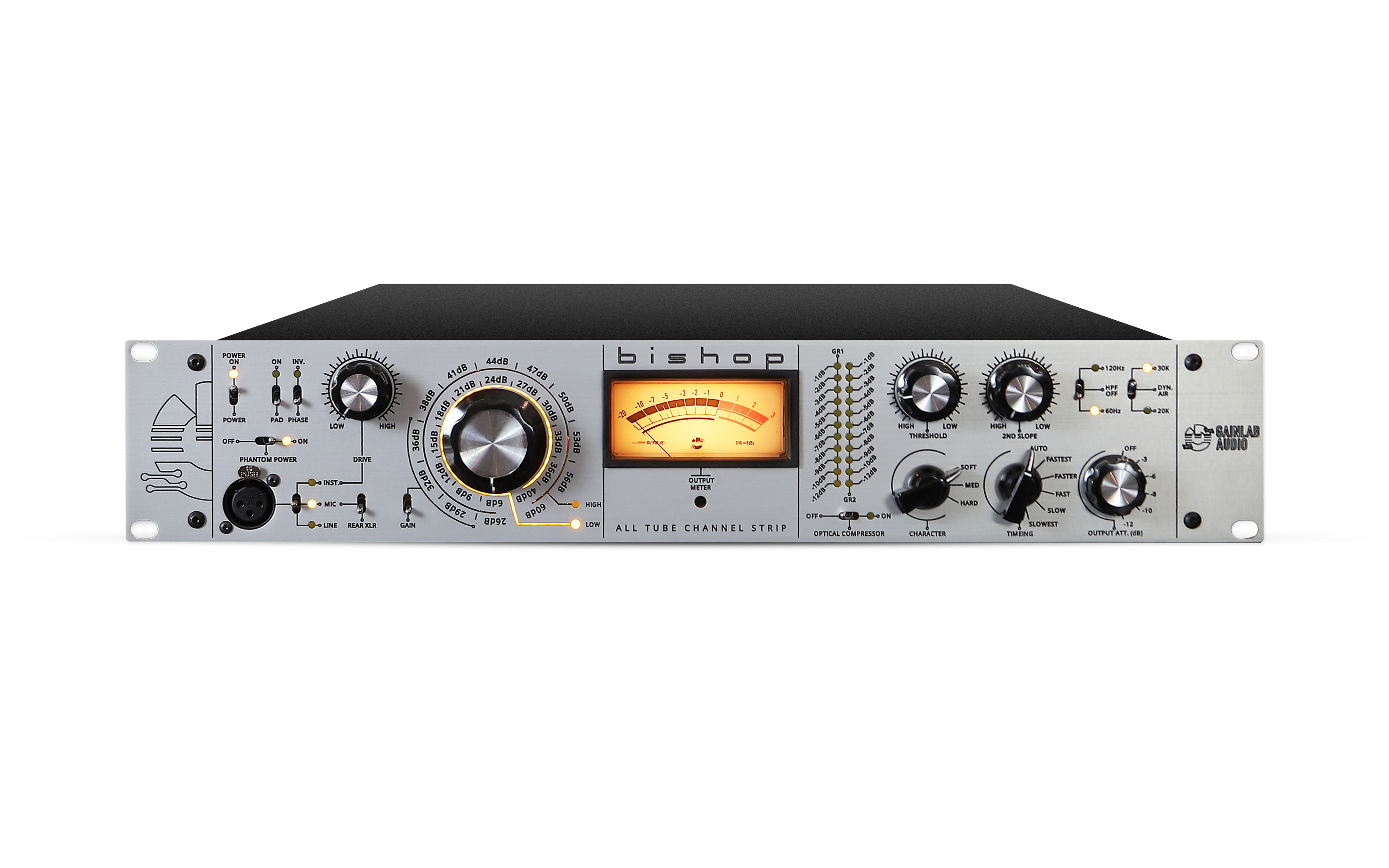

The Audio BISHOP is an all-in-one chanel-strip for audio processing, integrating tube preamp, optical compressor and advanced sound coloring features.

Highlights of the BISHOP Channel Strip

  • All-tube mic preamp with three vacuum tubes for authentic sonic warmth.
  • Mic, instrument and line inputs accessible from front panel and rear panel.
  • Dual-slope optical compressor inspired by the legendary LA-2A with advanced settings.
  • Integrated Dynamic Air Band to enrich high frequencies according to the compression applied.
  • Robust construction with high-end components and engraved front panel for optimum durability.

The Key Features of the BISHOP Channel Strip

All-tube preamp

At the heart of the BISHOP, an all-tube mic preamp delivers organic warmth and rich dynamics, thanks to its three vacuum tubes. Dual-scale gain control allows fine adjustments up to +60dB.

Versatile inputs

Enjoy multiple connections with mic, line and instrument inputs, available on both the front and rear panels. Phase, polarity and phantom power management are easily accessible.

Dual-slope optical compressor

Inspired by the classic LA-2A, this unique Gainlab Audio compressor features a second dynamic slope with adjustable character, threshold and timing for precise control of sound dynamics.

Dynamic Air Band

Add controlled brilliance to your recordings with Dynamic Air Band, which modulates high frequencies according to the level of compression applied, delivering an airy, controlled soundstage.

Robust, premium design

Made from Gainlab Audio's own solid materials, the BISHOP combines aesthetics, longevity and performance, thanks to its etched panel and professional-quality internal circuitry.

Expert advice

  • A complete, highly musical tube channel for demanding sound engineers.
  • The dual-slope compressor and Air Band add an incomparable analog touch.
Lire la suite

Technical sheet

  • Type of equalizer Parametric
  • Input impedance
    • Microphone: 2KOhm
    • Line: 18KOhm
    • Instrument: 500KOhm
  • Output impedance
    • < 150 Ohm
  • Max. output level
    • +30dBu
  • Noise ceiling
    • < -70 dBu unweighted
  • Signal-to-noise ratio (SNR)
    • 98 dB @ 10Hz-22kHz @ < 1% THD
  • Distortion
    • < 0.03% at 0dB output, 1kHz
    • < 0.6% @+26dBu output 1kHz
  • Dimensions
    • 483 x 280 x 89 mm
  • Weight
    • 4.2 kg
  • Power supply
    • 230V AC (EU)
    • 110V AC (US)
