Effects processor

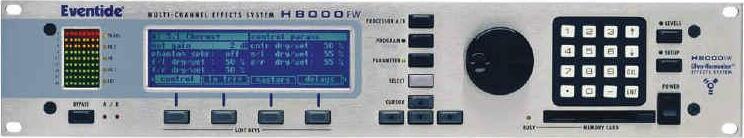

Processor effect for studio & pa EVENTIDE H8000fw.

Technical sheet

Digital inputs/outputs
4 AES 2 S/PDIF at 44.1-96 kHz, all with sample rate conversion/sync. Relay bypass of AES connections when powering up. 8 ADAT channels at 44.1/48 kHz.
Analog inputs (balanced XLR inputs)
Impedance > 20 kOhms, unbalanced compatible
Full scale input level 26 dBu
Dynamic range > 110 dB
Signal-to-noise ratio > 110 dB, A-weighted measurement
THD+Noise < 0.002% at 1 kHz, -3 dBFS
Crosstalk < -100 dB from 20 Hz to 20 kHz, -1 dBFS
Analog outputs
Impedance < 50 Ohms
Full scale output level 26 dBu
Dynamic range > 110 dB
Signal-to-noise ratio > 110 dB, A-weighted measurement
THD+Noise < 0.002% at 1 kHz, -3 dBFS
Crosstalk < -100 dB, 20 Hz to 20 kHz, -1 dBFS
Remote control inputs
Maximum of 2 pedals (or 0-5V logic inputs), or 6 footswitches, or any combination of both.
Remote control outputs
2 contacts per relay, 1 A, 30 VDC.
MIDI Connections
DIN 5 Pin Output and Thru
7-pin DIN input with output possibilities
Memory card
68-pin PCMCIA 2.0/JEIDA 4.0 format for data backup. Compatibility:
PCMCIA SRAM type 1 cards
PCMCIA ATA cards
Compact Flash cards with adapter.
Factory presets (at 48 kHz)
Pitch Shifter: maximum of 16 channels
Compressor/limiter: maximum of 16 channels
Equalization: Maximum of 128 parametric bands on a single input, 16 bands per channel with 8 channels
Sampling with time compression: maximum of 174 seconds in mono
Digital Delay: Maximum of 87 seconds in mono plus sampler
Food
100 Watts, 100-125 Vac, 220-240 Vac, 50/60 Hz
Dimensions
8.9cm (h) x 48.3cm (w) x 31.7cm (d)
Weight
Net: 5.5 kg
Shipping: 8 kg
