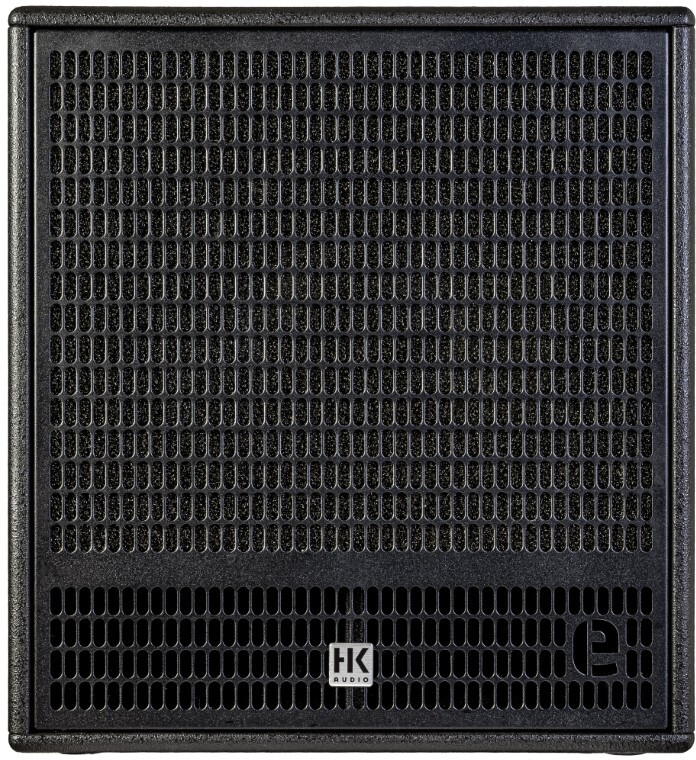

Hk audio ELEMENTS MK2 115 Sub A

The HK Audio ELEMENTS MK2 115 Sub A is an active subwoofer designed for ELEMENTS MK2 setups that require higher output levels and extended low-frequency response. With its 15-inch driver, 1,500 W RMS amplification, and a specified frequency response down to 38 Hz at -6 dB, it is particularly well-suited for concerts, DJ sets, and professional performances where the bass must remain present at a sustained level. It also serves as an active base for powering and controlling compatible column modules.

Key Features

• 15-inch woofer with a 3.5-inch voice coil to significantly boost the bass of an ELEMENTS MK2 system.
• Rated maximum peak SPL of 128 dB and frequency response down to 38 Hz at -6 dB for demanding musical applications.
• 1,500 W RMS Class D amplification with a rated peak power of 3,000 W.
• Integrated DSP with Flat, Contour, Voice, and Remote presets for quickly adjusting the system’s behavior.
• Ethernet connection with remote control and Milan AVB audio transmission within a compatible infrastructure.
• Independent DSP output with equalization, filtering, delay, and polarity control for integrating an additional active speaker or a monitor line.

When should you choose the 115 Sub A?

The 115 Sub A really comes into its own when an ELEMENTS MK2 setup needs to handle amplified music with more low-end power. Its 15-inch driver and claimed low-frequency extension down to 38 Hz are better suited for DJ sets, concerts, and musical events than a subwoofer primarily designed for speech or light sound reinforcement.

The actual available sound level always depends on the number of subwoofers, the number of column modules, the size of the venue, and the expected sound level. Therefore, a single subwoofer should not be selected based solely on its power rating.

What role does it play in the ELEMENTS MK2 system?

The 115 Sub A does more than just reproduce low frequencies. Its amplifier and DSP also contribute to the operation of the ELEMENTS MK2 column elements connected to the system.

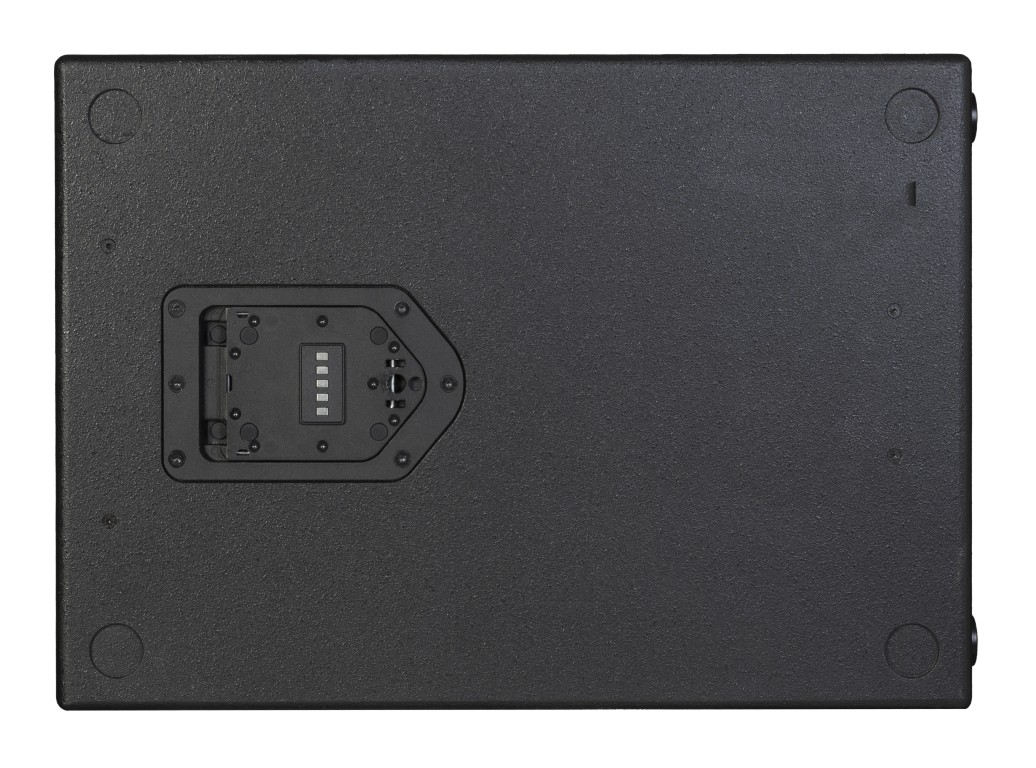

The SnapLock system ensures tool-free mechanical assembly, and the built-in contacts transmit the signal between compatible components. Once the column is assembled, no visible speaker cables are needed between the subwoofer and the upper modules.

How can the system be adapted to the type of event?

The Flat, Contour, and Voice presets offer different starting points depending on the program being played. Remote mode is designed for configuration controlled via the HK Audio DSP CONTROL platform.

These presets speed up setup, but they do not replace the need to adjust the system based on the venue, speaker placement, and the desired sound level.

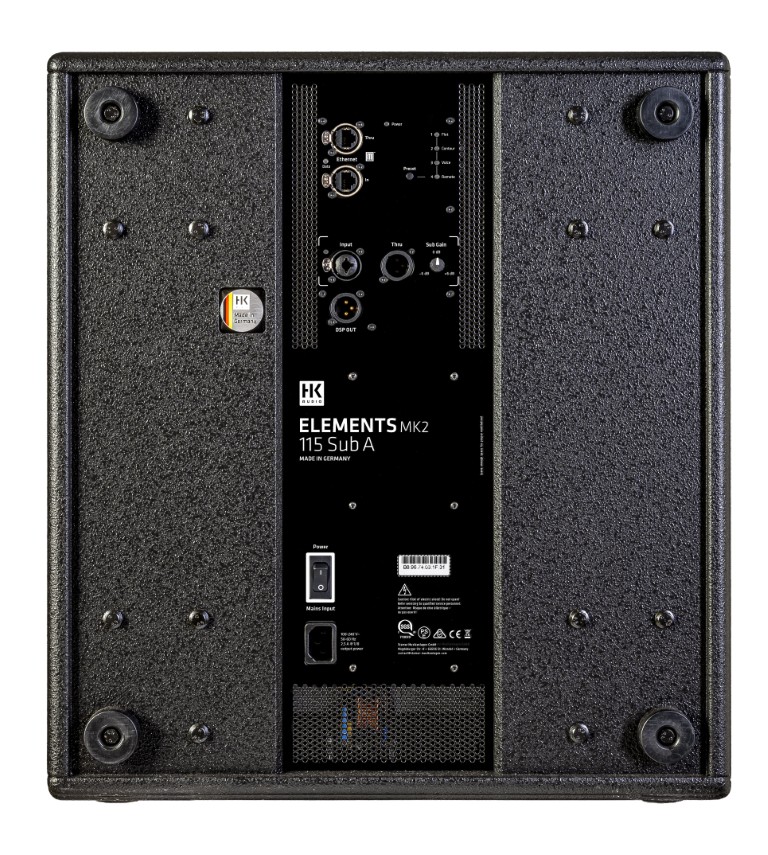

What does the network connection enable?

The Ethernet port is used to control the system and can also carry digital audio via Milan AVB. This allows multiple compatible devices to be integrated into a networked audio infrastructure and configured centrally.

Using Milan AVB requires a compatible network environment. A standard Ethernet connection is not sufficient to automatically ensure audio transmission between all devices.

What is the independent DSP output used for?

The DSP output allows you to send a processed signal to another active device, such as a monitor speaker, a nearfield speaker, or an additional bass system. It can therefore be used to expand a system without necessarily adding an external processor for each output.

Its processing features include a 10-band parametric equalizer, high-pass and low-pass filters, polarity reversal, a limiter, and a mute function. A delay of up to 50 ms also allows for the temporal alignment of a remote monitor speaker.

Can it be used for a delay line?

The combination of the DSP output and the delay, adjustable up to 50 ms, allows you to power an additional active speaker placed further back in the room. The delay can then be adjusted to better synchronize this speaker with the main system.

The delay setting must be adjusted based on the actual distance between the various sound sources. An incorrect value can, on the contrary, degrade the consistency of the sound coverage.

Is it suitable for heavy-duty live performance use?

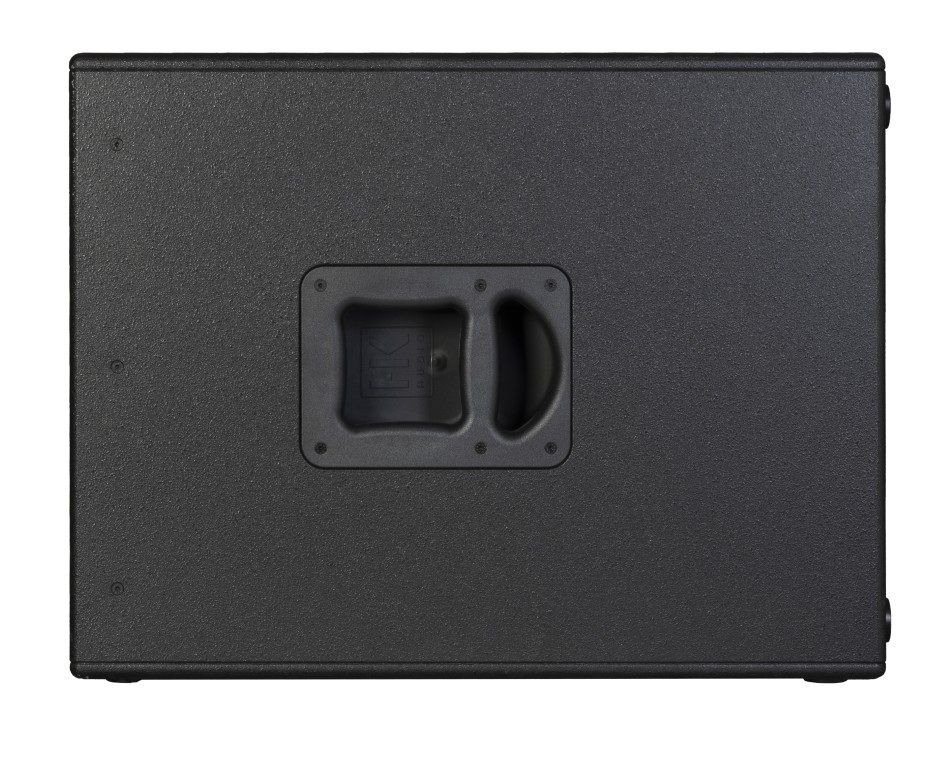

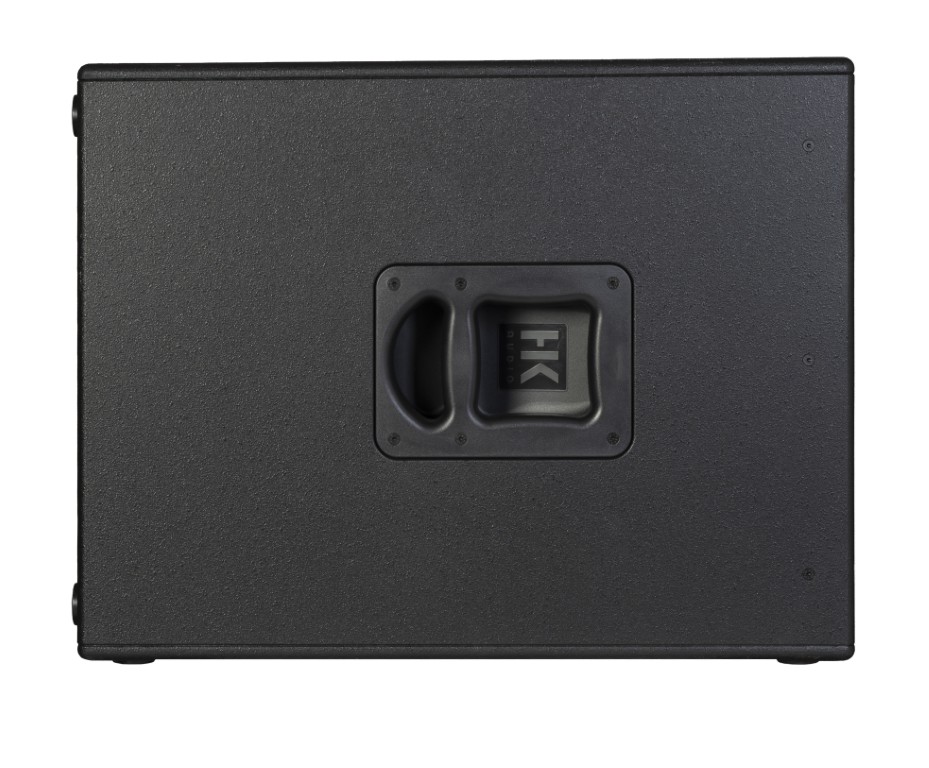

The hybrid enclosure, the steel grille with anti-corrosion treatment, and the acoustic foam are designed to withstand the rigors of regular professional use. Two MultiGrip handles facilitate handling during loading, unloading, and setup.

However, the 15-inch size, built-in amplification, and reinforced construction mean it takes up more space and weighs more than a small, compact subwoofer. It is therefore best suited for situations where bass response and volume take priority over ease of transport.
