Midi controller

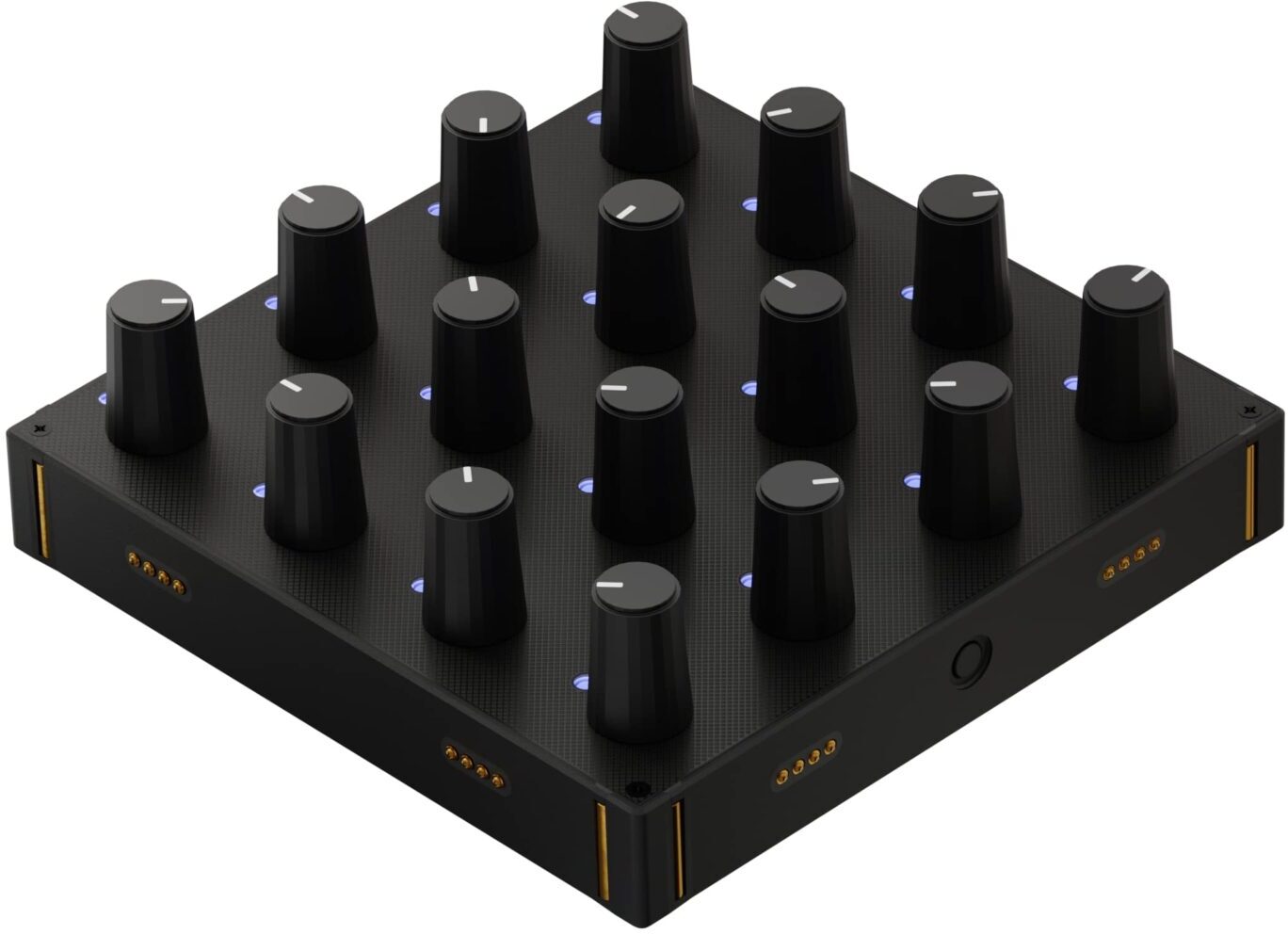

The Intech Studio Grid Series 3 – PO16 Linear is the ideal compact USB MIDI controller for musicians looking to optimize their workflow with direct access to a wide range of parameters.

Overview

The Intech Studio Grid Series 3 – PO16 Linear is a modular USB MIDI controller that stands out for its 16 precision rotary knobs. Perfect for controlling equalizers, filters, synthesizers, effects, and virtual instruments, it offers an intuitive interface suitable for all types of music production.

Precision knobs for total control

The 16 single-rotation knobs feature sturdy metal shafts, ensuring precise and durable operation. Their “one knob per function” configuration allows each knob to be assigned to a specific parameter, enabling fast and efficient control.

Multicolored LED lighting for enhanced visibility

Each knob features a customizable RGB LED indicator, allowing users to adjust color and brightness to their preferences. Programmable light animations add a dynamic touch and make it easier to identify controls, even in low-light conditions.

Advanced Customization with Grid Editor

The Grid Editor software offers unmatched flexibility for customizing control behavior. Advanced users can also take advantage of Lua programming support to create custom functions and workflows.

Modular Magnetic Connectivity for Maximum Flexibility

The modular magnetic connection system allows multiple controllers to be assembled in various configurations. A single USB-C cable handles both power and data transmission, simplifying the setup of a versatile solution, whether in the studio or on stage.

Key Features

Compact, modular USB MIDI controller
16 high-quality linear rotary knobs
Sturdy metal shafts for enhanced durability
“One knob per function” design for intuitive operation
Customizable RGB LED indicators for each knob
Function button for quick navigation between control pages
Custom programming via Lua scripts
Magnetic system for modular connections
Compatible with macOS, Windows, Linux, and mobile platforms

Technical sheet

Type
- Type: Modular USB MIDI controller
- Series: Grid Series 3
Potentiometers
- Potentiometers: 16
- Type: single-turn linear rotary potentiometers
- Axles: metal
Indicators
- Indicators: 16 customizable RGB LEDs
- Additional button: side function button for page navigation
Programming
- Programming: Grid Editor / Lua scripts
- MIDI: USB MIDI class-compliant
- HID: USB HID compatible
Connection
- Connection: USB-C
- USB Interface: USB 2.0 High-Speed
- Power: USB
- Power consumption: approximately 250 mA
- Maximum number of modules on a single USB connection: up to 8
- Modular connection: multidirectional magnetic system
- Connectors: spring-loaded gold-plated pins
- Magnets: N52 neodymium
Construction
- Construction: injection-molded base and sturdy front panel
- Dimensions (W x D x H): 107 x 107 x 38 mm
- Weight: 220 g
Compatibility
- Compatibility: macOS Intel and Apple Silicon, Windows, Linux, and compatible mobile platforms
- EAN: 5999862713140
- Sonic Sales Part Number: 95-90009
- Manufacturer Part Number: GRID3-PO16-L
Applications
- Music production and DAW control
- Equalizer control
- Filter adjustment
- Control of hardware and software synthesizers
- Controlling plug-ins and virtual instruments
- Adjusting effects and audio parameters
- Live MIDI control
- Creating custom control surfaces
- Audiovisual and creative workflows
- Compact and portable setups
