Drum machine

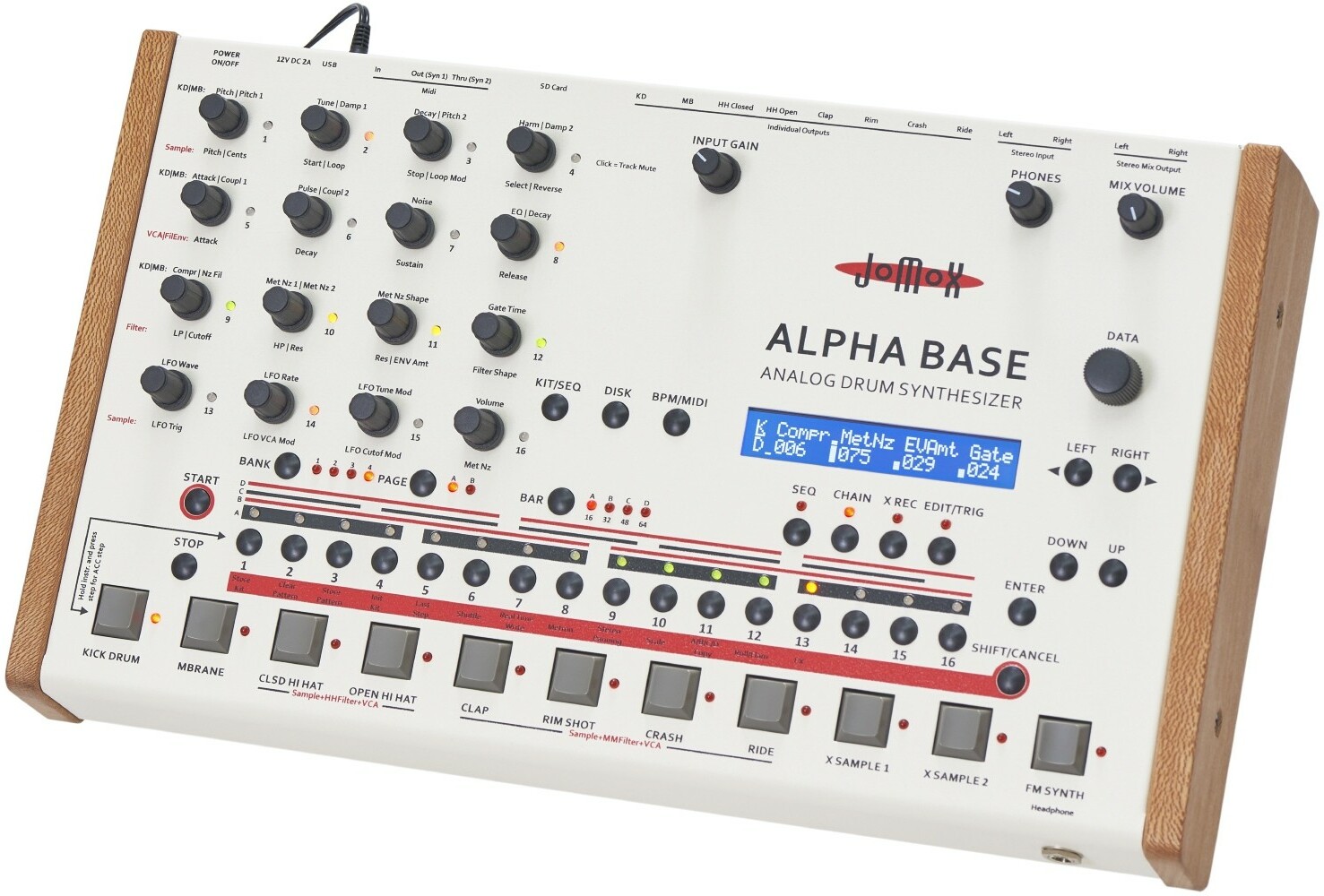

The Jomox Alpha Base is a It's true analogue. Eleven instruments, sequencer, Midi/USB/SD-Card. Sampling inputs, balanced individual outputs.
Although it may appear similar to the classics XBASE 09, 999 and 888, the ALPHA BASE has an entirely new design under the hood. We have put in the concentrated know-how of the Jomox drum machines and of our synths of the past 20 years. We have simplified some things, but also added new components or have combined them new. The outcome is the best sounding and most versatile drum machine that Jomox has ever built.

Technical sheet

11 Instruments: Kick Drum, MBrane, CI HiHat, Op HiHat, Clap, Rim Shot, Crash, Ride, X Sample 1, X Sample 2, FM Synth
Analog Jomox kick
Analog Jomox MBrane voice with 2 connectable F-OSC for complex analog snare, percussion and tom sounds from 16 to 20,000 Hz
2 sample-based instruments with analog VCA envelope and / or HH filter, plus metal noise as a signal source
The HH filter is 2-pin, HP / LP / Res each individual parameters, peak-capable but not oscillating
4 sample-based instruments with analogue VCA envelope and / or multimode (LP, HP, BP) with ADSR envelope, plus metal noise as signal source
The multimode filter can also be used as a signal generator to generate analog toms or sticks
2 sample-based instruments with external sampling input and pure digital playback
1 FM synth with 4 operators and max. 6 voices for percussive sounds
Effects Delay, Reverb with Send po Instrument, also loopable in analogue signal path at CH, OH, Clp, Rim, Ride
LFOs: For each instrument an LFO (MBrane 2 LFOs) with 64 Waveforms, each assignable to Pitch, VCA, Fil Cut
250 samples 16 bit / 48 kHz in internal flash
SD card slot for loading samples
USB (Midi Device)
Midi In, Midi Out, Midi Thru
DIN Sync 2x in jacks Midi Out or Midi Thru
Inputs: Stereo In for sampling, FX, sidechain
Both inputs are Hi-Z suitable for guitar / bass and work up to line level +20 dB
Outputs: 8 single outputs balanced, stereo mix balanced, headphone
Output level: max. about +14 dBu unbalanced, +20 dBu balanced on all outputs
18 encoders
Input Volume, Phones Volume and Mix Volume are analog potentiometers
LCD display 2x 24 characters
External 12V 2A DC power supply
Stable sheet steel housing
Wood side panels
Rubber feet
Dimensions: 410 x 240 x 80 (rear)
Weight: approx. 3.3 kg
