Home studio set

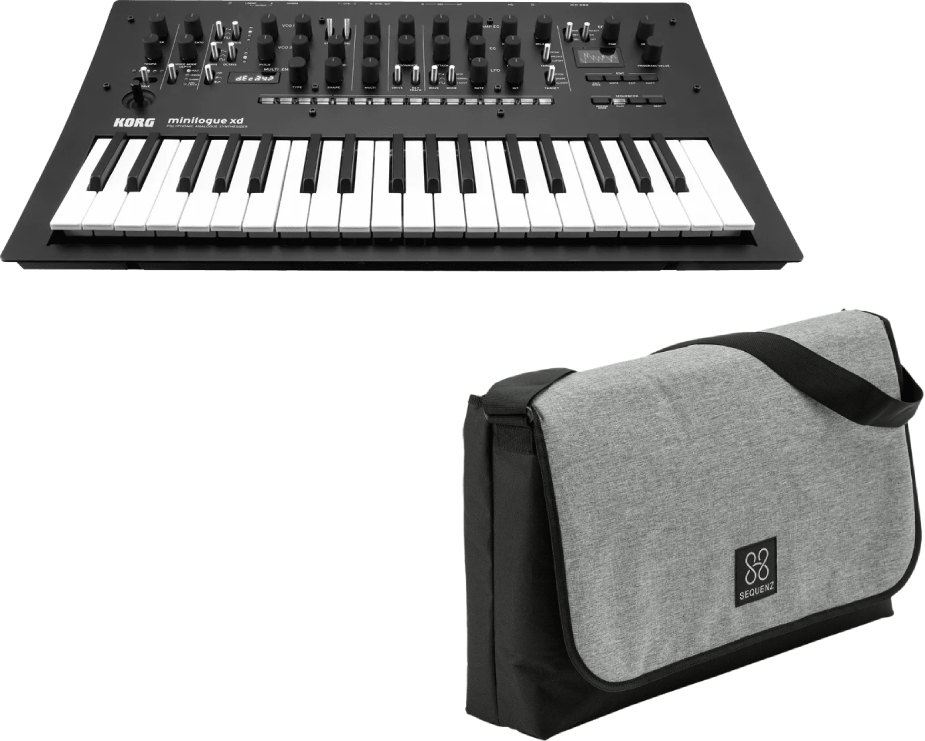

This bundle includes the Korg Minilogue XD and its Korg carrying case.
Lire la suite
Technical sheet
- Keyboard
- 37 velocity-sensitive keys
- VCO (Voltage-Controlled Oscillator)
- 2 VCO with sawtooth, triangle, square waveforms, octave, pitch, and shape functions
- Ring modulation, Cross Mod Depth, and synchronization
- VCO Mixing Section
- Mixing section for all three VCOs
- VCF (Voltage-Controlled Filter)
- VCF with cutoff, resonance, overdrive, and keyboard tracking
- Envelope Generator
- ADSR amplitude envelope generator
- Envelope generator with attack, decay, Int, target (2 pitches and cutoff)
- LFO (Low Frequency Oscillator)
- LFO with sawtooth, triangle, and square waveforms; BPM, normal, and one-shot mode; speed, int, and target (pitch, shape, cutoff)
- Programs
- 500 programs (200 preloaded sounds and 300 user programs) with Favorite function
- Modes
- 4 modes: polyphonic (four voices), unison, chord, arpeggiator/latch with Voice Mode - Depth function offering different parameters for each mode
- Effects
- 8 chorus types, 3 ensemble types, 8 phaser types, 8 flanger types, 12 delay types, and 10 reverb types, plus 24 user effects, with time and depth settings
- Sequencer
- 16-step polyphonic sequencer with the ability to sequence movements of up to 4 parameters
- Controls
- Joystick assigned to different parameters for each program
- Portamento potentiometer
- Screens
- OLED screen with real-time oscilloscope
- 7-segment LED screen and 6 characters for Multi Engine section
- Connections
- Headphone output on jack
- Left/mono and right outputs on asymmetrical mono jacks
- 2 CV/Gate inputs on 3.5 mm mini-jacks
- Sync input on 3.5 mm mini-jack
- MIDI input and output
- Type B USB port
- Footswitch input
- Dimensions and Weight
- Dimensions: 500 x 300 x 85 mm
- Weight: 2.8 kg
