Synthesizer
The Minilogue XD is a 4-voice polyphonic analog synthesizer.
Key Features of the Minilogue XD

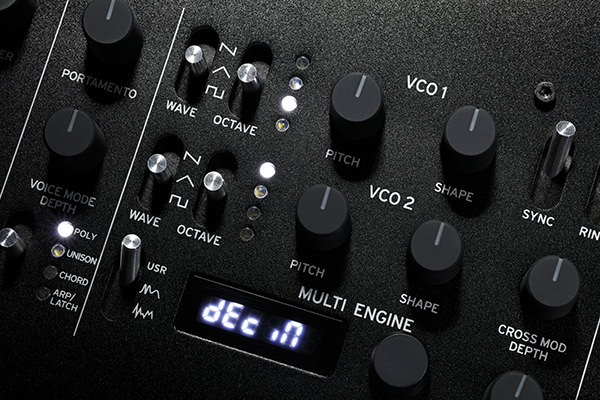

- The Multi-Engine acts as a third oscillator in addition to the two analog VCOs, expanding the possibilities of the Minilogue XD.
- High-quality digital effects provide high-performance rendering of sound effects, with three types of effects that can be used simultaneously.
- The Minilogue XD sequencer offers 16 steps, supporting both real-time and step recording.
Key Functions of the Minilogue XD
![Korg Minilogue Xd - Synthesizer - Variation 8](/medias/korg/minilogue-xd-hd-11-154748.webp)
New Joystick
Control over pitch bend, modulation depth, and other features assignable to joystick vertical movements.
![Korg Minilogue Xd - Synthesizer - Variation 5](/medias/korg/minilogue-xd-hd-8-154748.webp)
Micro Tuning
Allows individual adjustment of the pitch of each key, with 23 built-in preset scales and the ability to create and store six user scales and six user octaves.
![Korg Minilogue Xd - Synthesizer - Variation 6](/medias/korg/minilogue-xd-hd-9-154748.webp)
Oscilloscope and Motion Display
The larger screen provides oscilloscope functionality to visualize sound as waveform of the electrical signal.
![Korg Minilogue Xd - Synthesizer - Variation 9](/medias/korg/minilogue-xd-hd-12-154748.webp)
Stereo Output
A stereo effect unit is provided at the final stage, and the output jacks are now stereo for a more immersive sound experience.
Expert Reviews
- A versatile synthesizer offering a unique combination of analog sound and advanced digital capabilities.
- An intuitive user interface and innovative features that inspire musical creativity.
Lire la suite
Technical sheet
- Number of keys Less than 49 keys
- Touch Light touch
- Type of synthesizer Analog
- Keyboard
- 37 velocity-sensitive keys
- VCO (Voltage-Controlled Oscillator)
- 2 VCO with sawtooth, triangle, square waveforms, octave, pitch, and shape functions
- Ring modulation, Cross Mod Depth, and synchronization
- VCO Mixing Section
- Mixing section for all three VCOs
- VCF (Voltage-Controlled Filter)
- VCF with cutoff, resonance, overdrive, and keyboard tracking
- Envelope Generator
- ADSR amplitude envelope generator
- Envelope generator with attack, decay, Int, target (2 pitches and cutoff)
- LFO (Low Frequency Oscillator)
- LFO with sawtooth, triangle, and square waveforms; BPM, normal, and one-shot mode; speed, int, and target (pitch, shape, cutoff)
- Programs
- 500 programs (200 preloaded sounds and 300 user programs) with Favorite function
- Modes
- 4 modes: polyphonic (four voices), unison, chord, arpeggiator/latch with Voice Mode - Depth function offering different parameters for each mode
- Effects
- 8 chorus types, 3 ensemble types, 8 phaser types, 8 flanger types, 12 delay types, and 10 reverb types, plus 24 user effects, with time and depth settings
- Sequencer
- 16-step polyphonic sequencer with the ability to sequence movements of up to 4 parameters
- Controls
- Joystick assigned to different parameters for each program
- Portamento potentiometer
- Screens
- OLED screen with real-time oscilloscope
- 7-segment LED screen and 6 characters for Multi Engine section
- Connections
- Headphone output on jack
- Left/mono and right outputs on asymmetrical mono jacks
- 2 CV/Gate inputs on 3.5 mm mini-jacks
- Sync input on 3.5 mm mini-jack
- MIDI input and output
- Type B USB port
- Footswitch input
- Dimensions and Weight
- Dimensions: 500 x 300 x 85 mm
- Weight: 2.8 kg
