Complete pa system

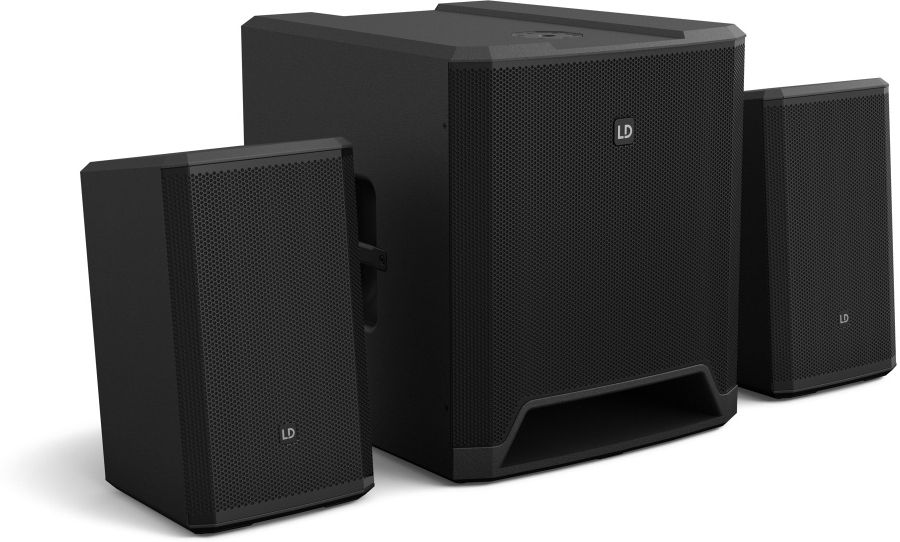

The LD Systems Dave 15 GX4 is a compact powered 2.1 sound system.
Amplified 2.1 sound system with a 15" subwoofer and two satellites with 8" speakers
Total power: 2060 W

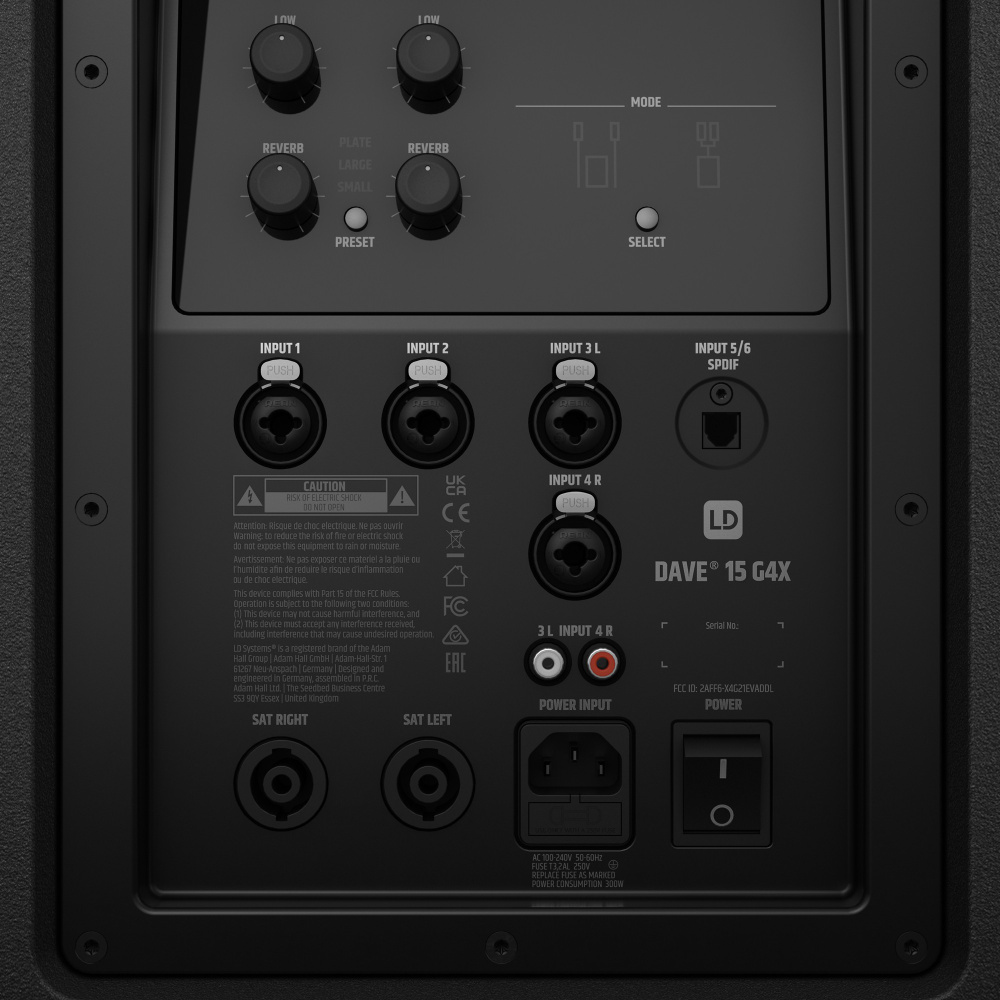

Integrated 6-channel mixer with EQ and reverb
Switchable level inputs for mic, Hi-Z or line sources.
SPDIF digital stereo input on TOSLINK connector
Wireless audio streaming via Bluetooth
Uniform dispersion through newly designed waveguides.
DynX® DSP for distortion-free sound reproduction
Selectable presets provide greater flexibility in configuring the subwoofer/satellite system
Durable polyurea coating on the subwoofer and satellites.
Amplified 2.1 sound system with a 15" subwoofer and two satellites with 8" speakers
Total power: 2060 W
Integrated 6-channel mixer with EQ and reverb
Switchable level inputs for mic, Hi-Z or line sources.
SPDIF digital stereo input on TOSLINK connector
Wireless audio streaming via Bluetooth
Uniform dispersion through newly designed waveguides.
DynX® DSP for distortion-free sound reproduction
Selectable presets provide greater flexibility in configuring the subwoofer/satellite system
Durable polyurea coating on the subwoofer and satellites.
Lire la suite
Technical sheet
- PA power speaker Above 2001 watts RMS
- Type of PA speaker Stage & FOH monitor
- Complete sound systems
- Type:Active
- Colour:Black
- System power (rms) :1030 W
- System power (peak):2060 W
- Max. SPL (off) :124 dB
- Max. SPL (peak) 130 dB
- Frequency response (-10dB)
- 33 - 20000 Hz
- Frequency response
- 105 Hz
- Angle of dispersion (H x V)
- 90° x 30 °
- Weight
- 53.9 kg.
- Subwoofers
- Woofer/midrange diameter: 15
- Boomer diameter: 381 mm
- Ferrite boomer magnet
- Boomer brand Custom made
- Boomer coil 3 "
- Boomer coil (mm) 75 mm
- Bass Reflex cabinet finish
- Cabinet material 15 mm Multiplex, 18 mm Multiplex
- Cabinet surface Polyurea
- Width of subwoofer 515 mm
- Height of subwoofer 575 mm
- Subwoofer depth
- 585 mm (2.5 in)
- Weight of subwoofer
- 34.5 kg (34 lb)
- Subwoofer features
- 3 Reverb Presets, 6 chana mixer, Bluetooth, M20, Mono / Stereo Preset, SPDIF
- 2 Carrying handles
