Ld systems MIX 10 G3
- Read reviews (0)
- Related accessories
- Similar products
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
- Ref : 80410
In stock
shipped under 8/10 days
Stock in store
Not available in store
The brand Ld systems
Learn more about the Ld systems brand and discover the entire catalog.
How to choose your PR System Buying guide
Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Passive fullrangespeaker

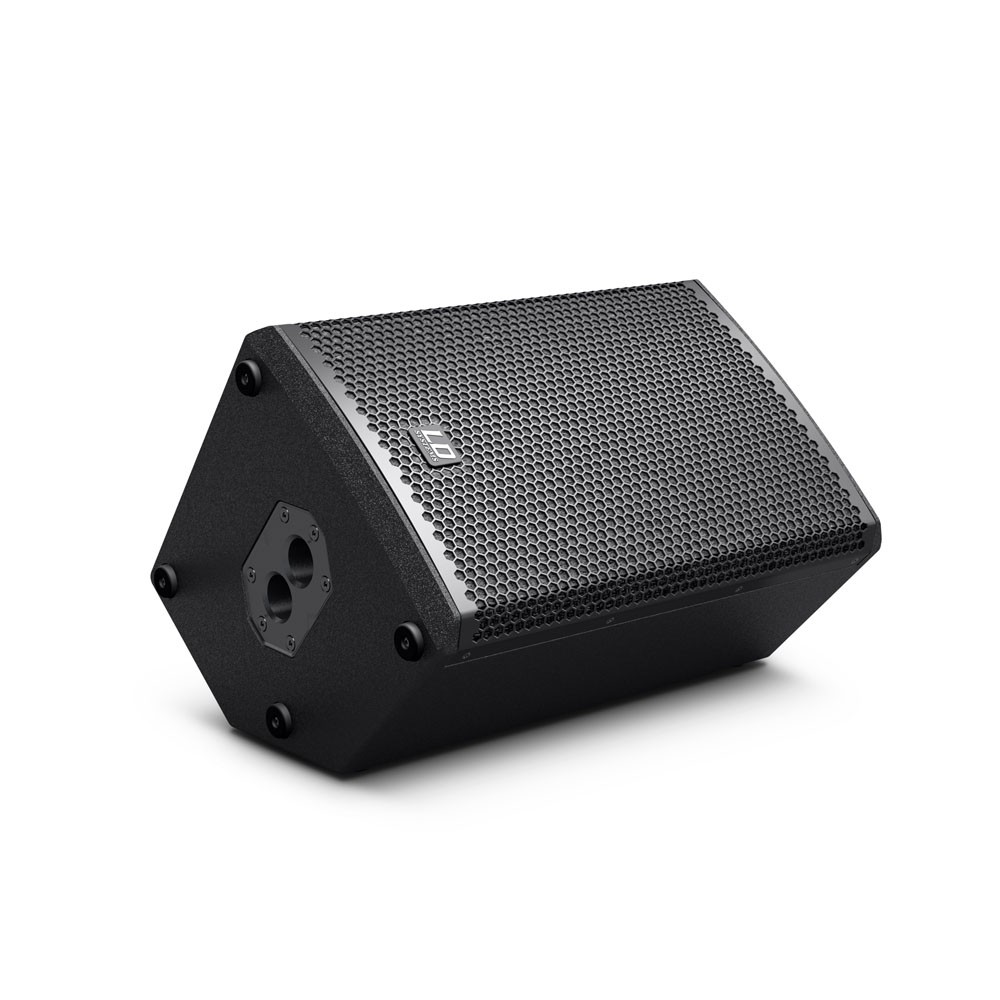

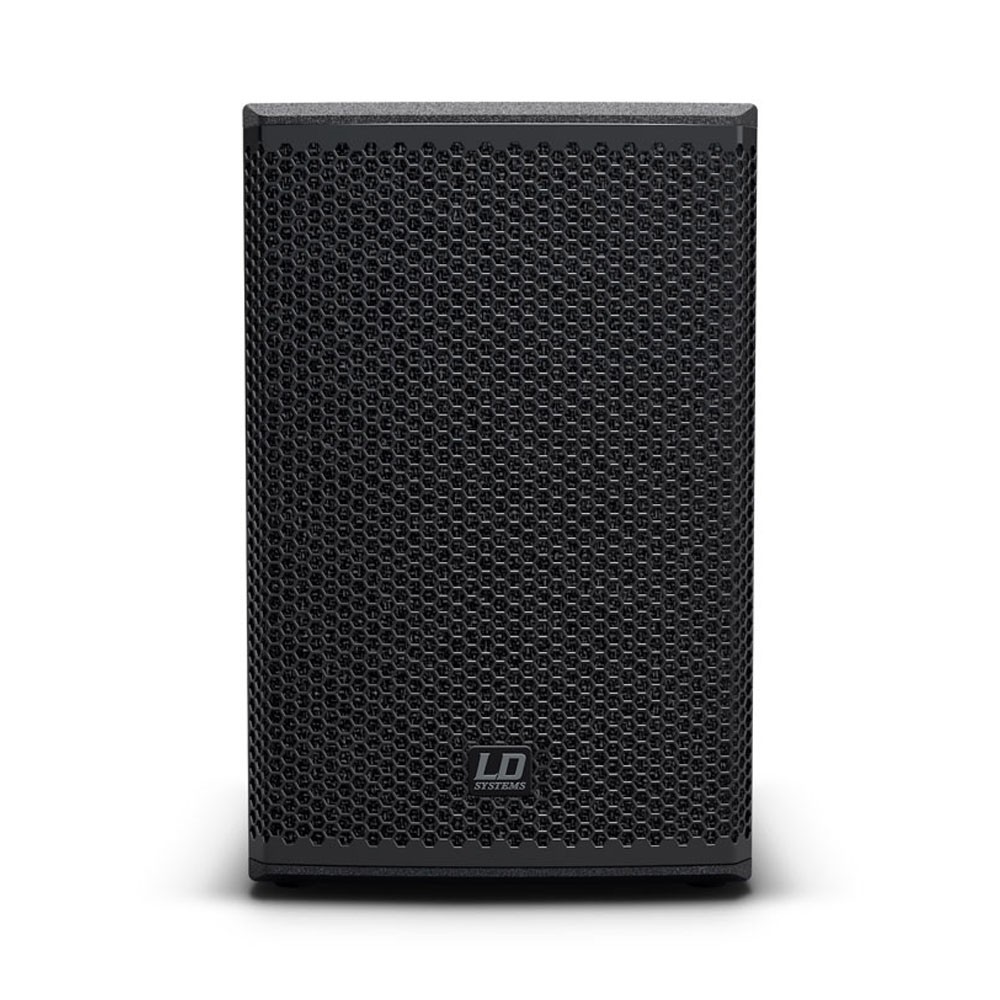

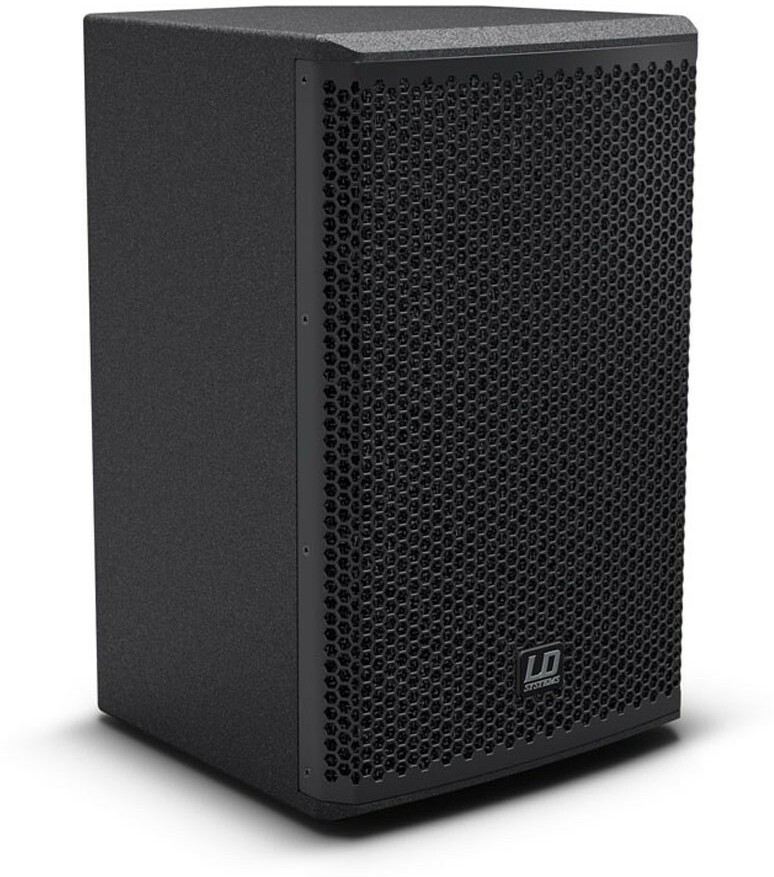

LD Systems Mix 10 G3 is a 2-way passive speaker.
This passive 2-way loudspeaker is designed for small sound reinforcement and stage return applications.
It is also equipped with a 10 "subwoofer and a 1" Celestion tweeter with a frequency response of 65 to 20,000 Hz and a dispersion angle of 80 ° x 70 ° for a crystal clear and powerful sound. the highest detail.

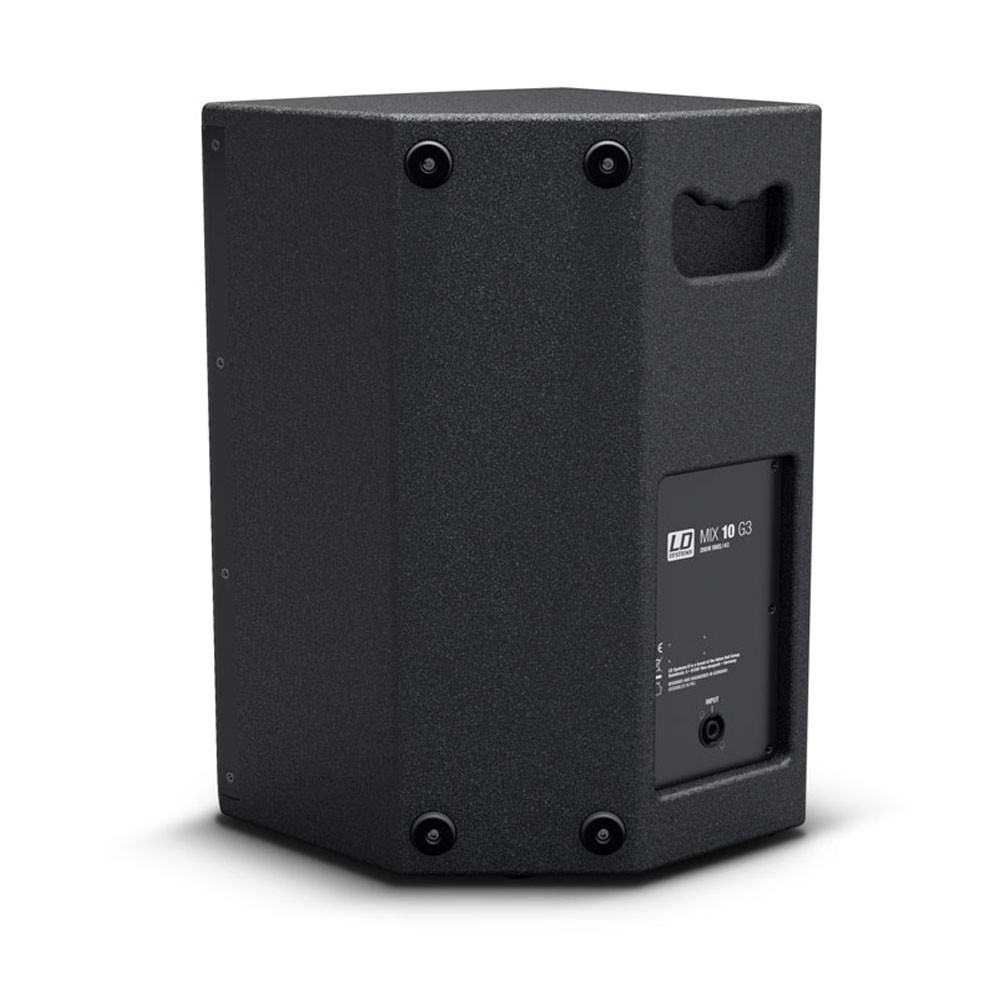

The compact bass-reflex housing of the MIX 10 G3 is built in rugged multiplex and is equipped with a speakON-compatible input with a 50 ° monitor angle and a dual-tilt dual-tilt tripod flange for straight or inclined at 5 °. As a stereo handset with the active variant, the MIX 10 G3 offers consistently convincing performances for a low weight that facilitates transport.
This passive 2-way loudspeaker is designed for small sound reinforcement and stage return applications.
It is also equipped with a 10 "subwoofer and a 1" Celestion tweeter with a frequency response of 65 to 20,000 Hz and a dispersion angle of 80 ° x 70 ° for a crystal clear and powerful sound. the highest detail.
The compact bass-reflex housing of the MIX 10 G3 is built in rugged multiplex and is equipped with a speakON-compatible input with a 50 ° monitor angle and a dual-tilt dual-tilt tripod flange for straight or inclined at 5 °. As a stereo handset with the active variant, the MIX 10 G3 offers consistently convincing performances for a low weight that facilitates transport.
Lire la suite
Technical sheet
- PA power speaker 151 to 300 watts RMS
- Type of PA speaker FOH speaker
- Product Type PA Speaker
- Passive Type
- Boomer diameter / medium 10 "
- Boomer diameter 254 mm
- Ferrite Boom Magnet
- Custom made boomer brand
- 2 "woofer coil
- Boomer coil (mm) 50,8 mm
- Constant directivity pavilion (CD)
- Diameter tweeter 1 "
- Tweeter diameter 25.4 mm
- Ferrite tweeter magnet
- Brand tweeter Celestion
- 1 "tweeter coil
- 25.4mm Tweeter Mobile Reel Diameter
- Dispersion angle (H x V) 80 x 70 °
- Power (effective) 200 W
- Power (peak) 400 W
- Frequency response 65 - 20,000 Hz
- Sound pressure level (for 1 W to 1 m) 95 dB
- Maximum sound pressure level 121 dB
- Impedance 4 Ohm (s)
- Tweeter protection circuits
- Speaker Inputs 1
- Speakon Compatible Speaker Input Connectors
- Material box 16 mm Plywood
- Surface of the box Structured paint
- Bass Reflex cabinet finish
- Angle monitor 50 °
- Width 315 mm
- Height (mm) 489 mm
- Depth 307 mm
- Features Ergonomic handle, Footwell
- with tilting device (0 ° / 5 °)
- Weight 10.8 kg
