Ld systems Mix 6 A G3

Portable pa system
297.00 € 222.00 €
+
-
LAST ONE! - shipped under 2/5 days
  • Need help +33 1 81 930 900

  • Fast delivery

  • Guarantee : 3-years warranty

    days refund guarantee : within 30 days

Share

Description

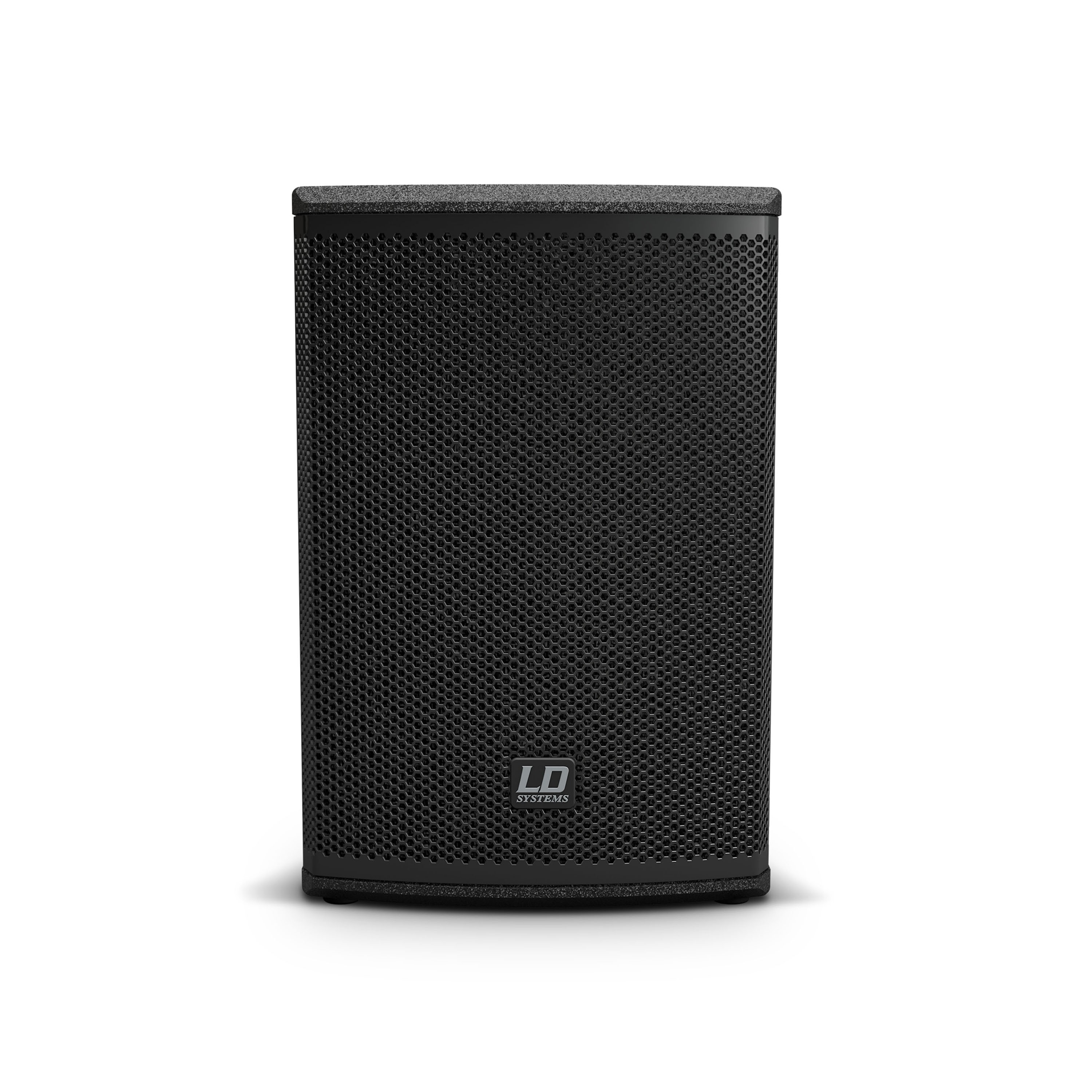

the Ld Systems MIX 6 A G3 is a 2-way active loudspeaker with built-in 4-channel mixer.

With the built-in 4-channel mixer and class D output stage with 2 x 280 watts of peak power, the LD MIX 6 A G3 is the ideal active speaker for small PA applications and monitor applications . The compact Bass-Reflex design features a 6.5-inch subwoofer and a 1-inch high-twitch drive motor with a frequency response of 80 to 20,000 Hz and a dispersion angle of 80 ° x 70 ° for a crystal clear and powerful sound and a higher level of detail.
With 3 microphone channels, a stereo line channel, a switchable high impedance input and a 15 V phantom power supply, the built-in mixer offers flexible connection possibilities, for example for electric instruments, smartphones, tablets, readers MP3 and CD. Each input channel is equipped with a 2-band sound control. The output section features a 3-band sound adjustment for general sound adjustment, a 4-level LED display for sound level as well as an adjustable monitor output and RCA sockets for connecting a sound device. 'recording. For this, the LD MIX 6 A G3 has a DSP with 16 effects presets, a limiter and protection against overcurrent, overloads, short circuits and overheating. A 4-ohm slave output is available to control the optional LD ??MIX 62 G3 Passive Speaker.
The LD MIX 6 A G3 Heavy Duty MDF Bass-Reflex speaker has two 16mm mounts for horizontal or vertical mounting. Used alone or in combination with the passive LD MIX 102 G3, the versatile Active Speaker offers convincing performance at any time for a low weight for easy transport.

Characteristics

Ref : 83431
Product Type PA Speaker
Active type
6.5 "boomer diameter
Boomer diameter 165.1 mm
Brand Boomer Custom
Diameter tweeter 1 "
Tweeter diameter (mm) 25.4 mm
Brand tweeter Custom
Angle of dispersion (H x V) 80 x 70 °
Frequency response 80 - 20,000 Hz
Class D amplifier
Power amplifier (eff.) 2x70 W
Power amplifier (peak) 2x280 W
Maximum sound pressure level 122 dB
Protection Circuits Short circuit, ICL (Intelligent Clip Limiting), Overload, Overheating, Overvoltage
Mix table
Channels 4
Micro inputs 3
1/4 "XLR Mic Jack Inputs
Micro Input DFX Send controls, EQ Hi, EQ Low, Level, Hi-Z selector (channel 1 only)
Input Impedance Micro Input Channels 14 kohms
70 mV Micro Input Sensitivity
Line 1 Inputs
Line Input Connectors 2 x Cinch (RCA)
DFX Send Line Inputs, EQ Hi, EQ Low, Level
Input Impedance Line Input Channel 4.4 kohms
Line Input Sensitivity - 5 dBu
High impedance input (Hi-Z) 1
High impedance input connector (Hi-Z) 6.35 mm jack
High Impedance Input Impedance (Hi-Z) 100 kohms
Monitor Output, Line Level 1
Line Monitor Output Connector 2 x Cinch (RCA)
Line Monitor Volume Potentiometer Controls
Maximum Level of Monitor Output 28 dBu
Number of Record 1 Outputs
Connectors Type Output Record 2 x Cinch (RCA)
Main Output Power (Amplifier), 4 Ohm 70 W
Built-in DSP multi-effect
Number of DSP Programs 16
DFX Return DSP Multi-Effect Controls, Mute Button
Indicators Multieffet DSP LED Peak
General section:
Master Section Controls Phantom Power, Hi EQ, EQ Low, Mid EQ, Voltage Selector, Master Volume
Indicators section Master Level indicator 4 segments, LED Power
15 volt phantom power
AC power connector IEC power outlet
Transformer mains voltage
Switchable mains voltage 110-120 V ~ 50/60 Hz or 220-240 V ~ 50/60 Hz
Power consumption 180 W
Box
Bass reflex cabinet finish
MDF cabinet material (medium density particle board)
Surface of the box Painted structured paint
Color black box
Width 214 mm
Height (mm) 323 mm
Depth 221 mm
Weight 7 kg
Other properties 2 wells for tripod 16 mm, rubber feet
