Active full-range speaker

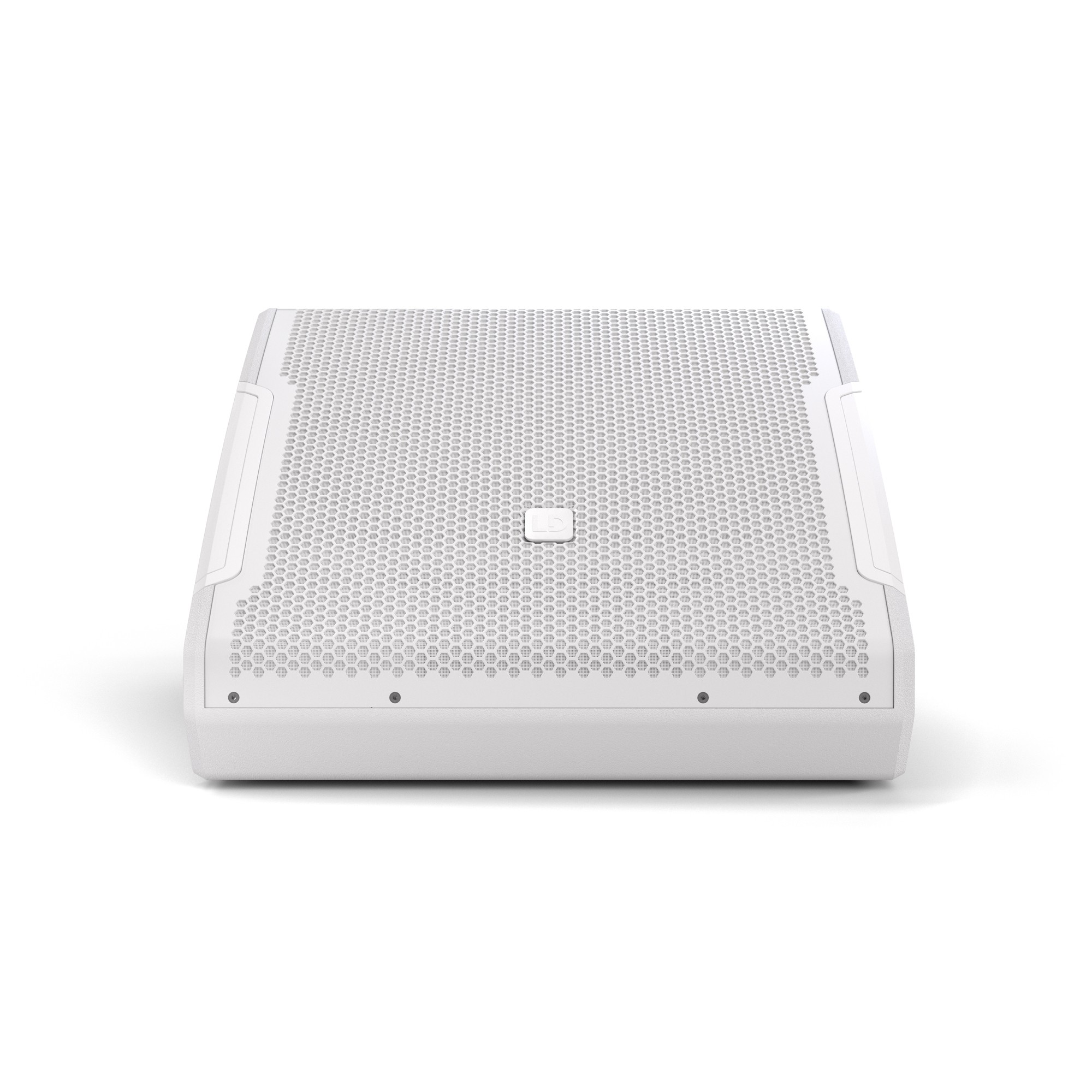

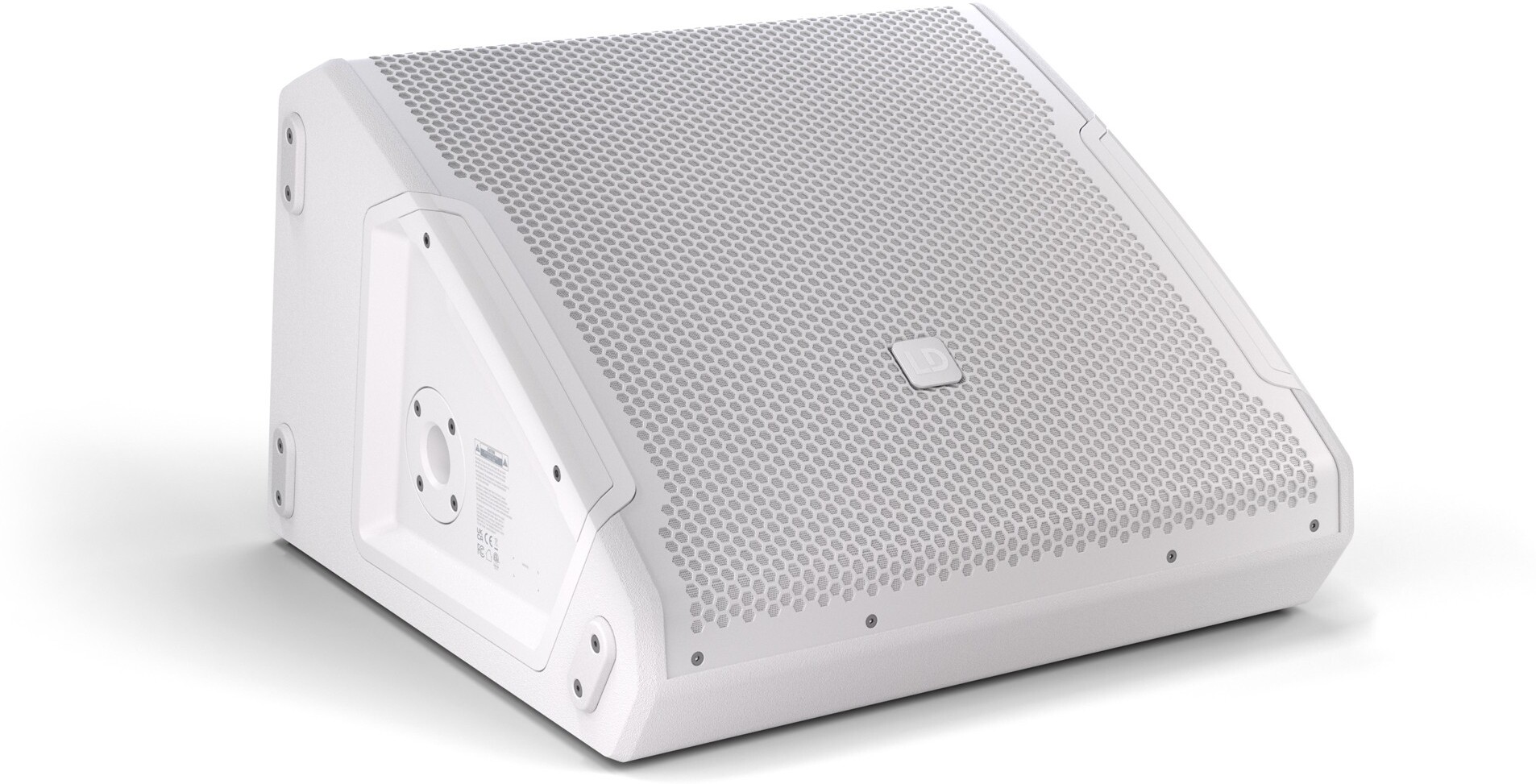

The MON 15 A G3 W is part of a completely new family of high-performance powered stage monitors.

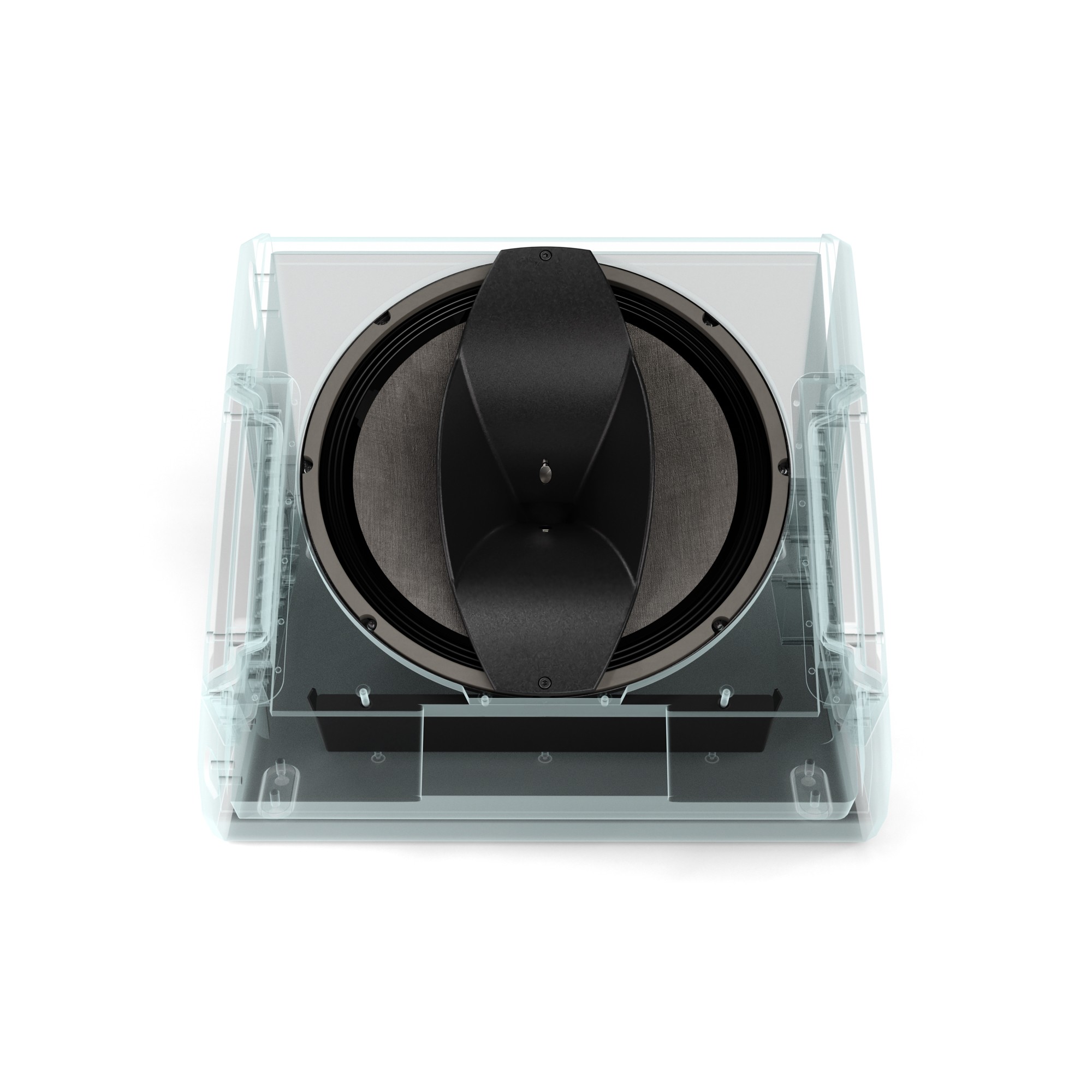

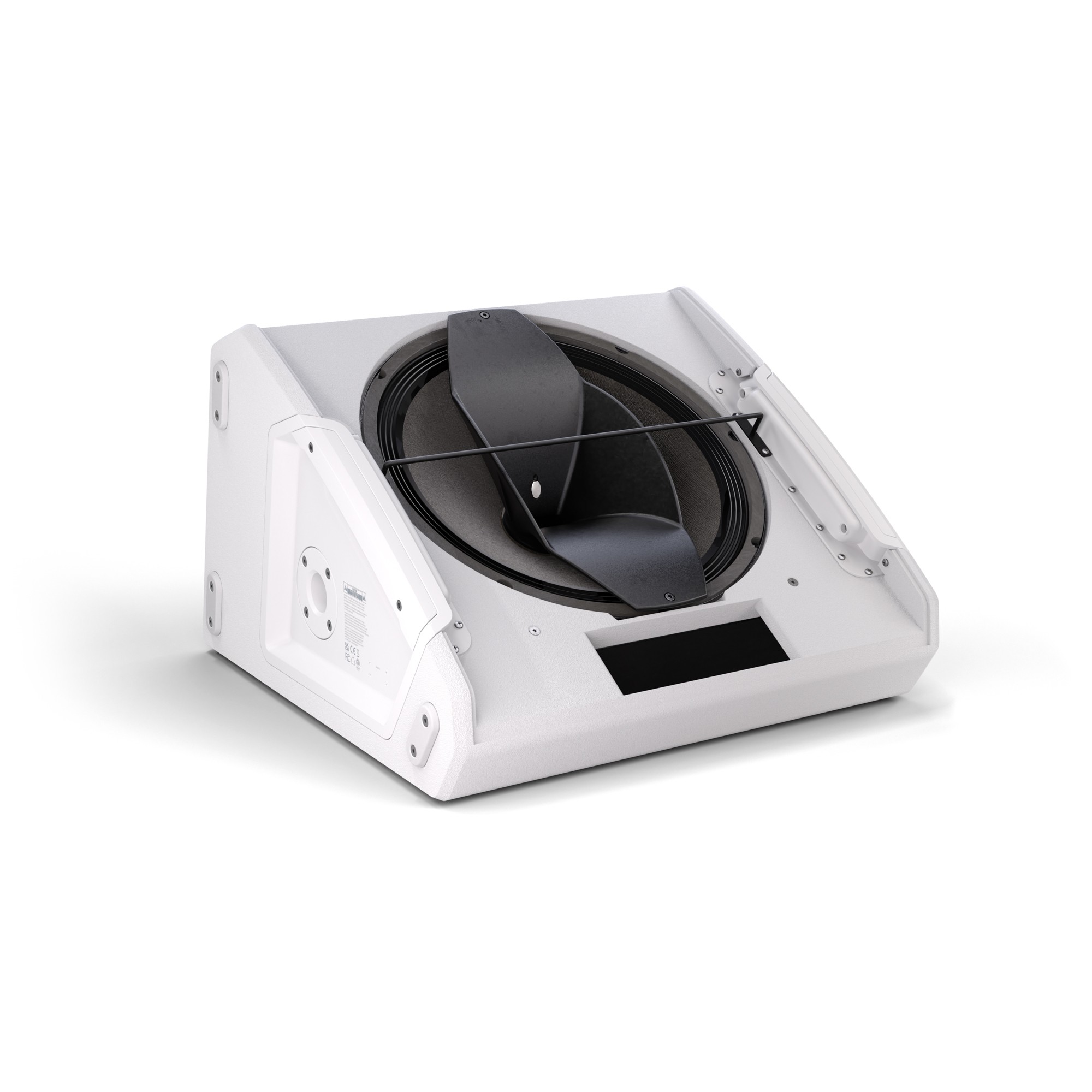

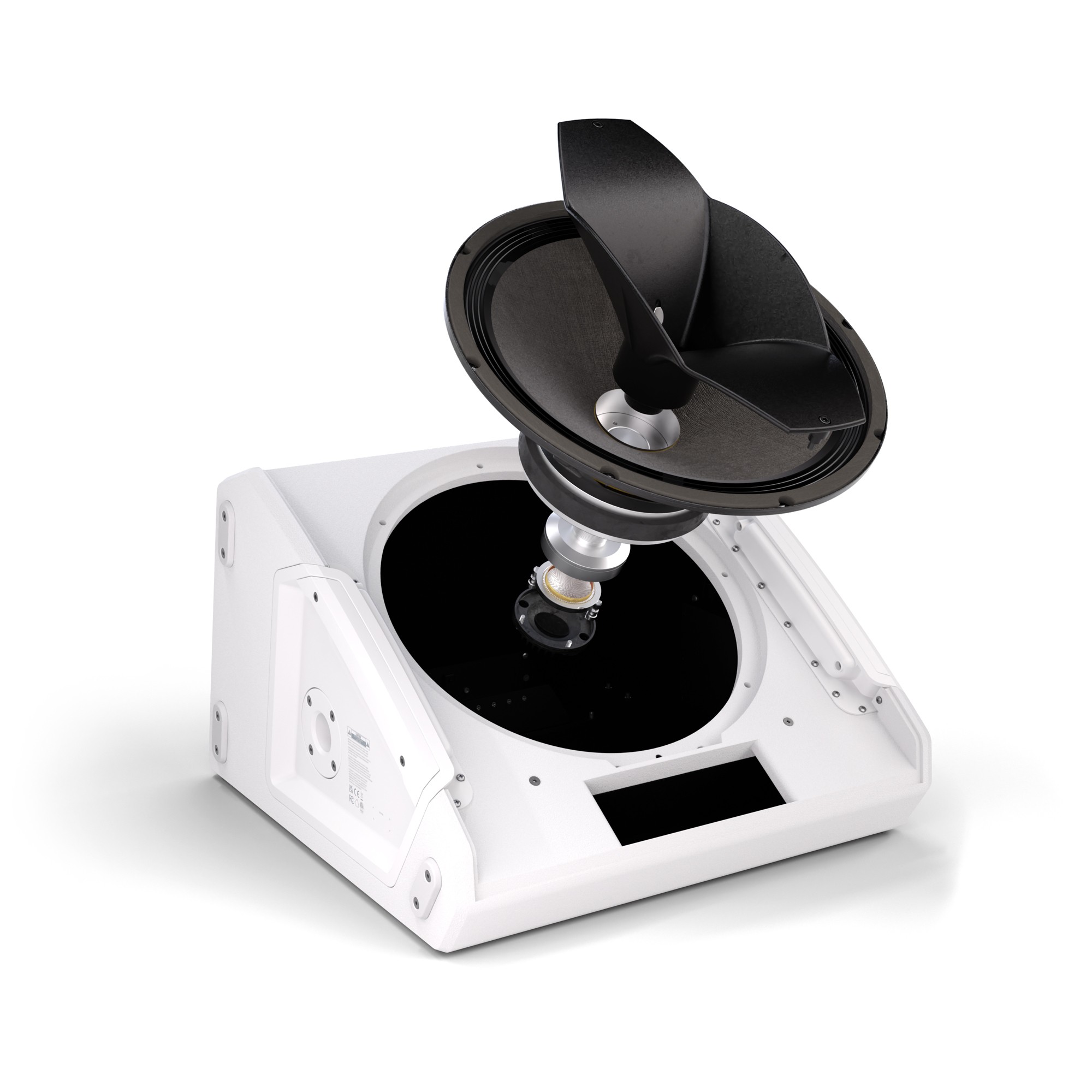

The MON G3 series integrates the cutting-edge technology and uncompromising materials used in high-end monitors typically used in professional rentals and makes this quality available to everyone. For example, the advanced coaxial drivers with a 50° x 90° constant directivity horn are a true point source, an acoustically ideal solution that guarantees exceptional audio performance even in close-range listening. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.

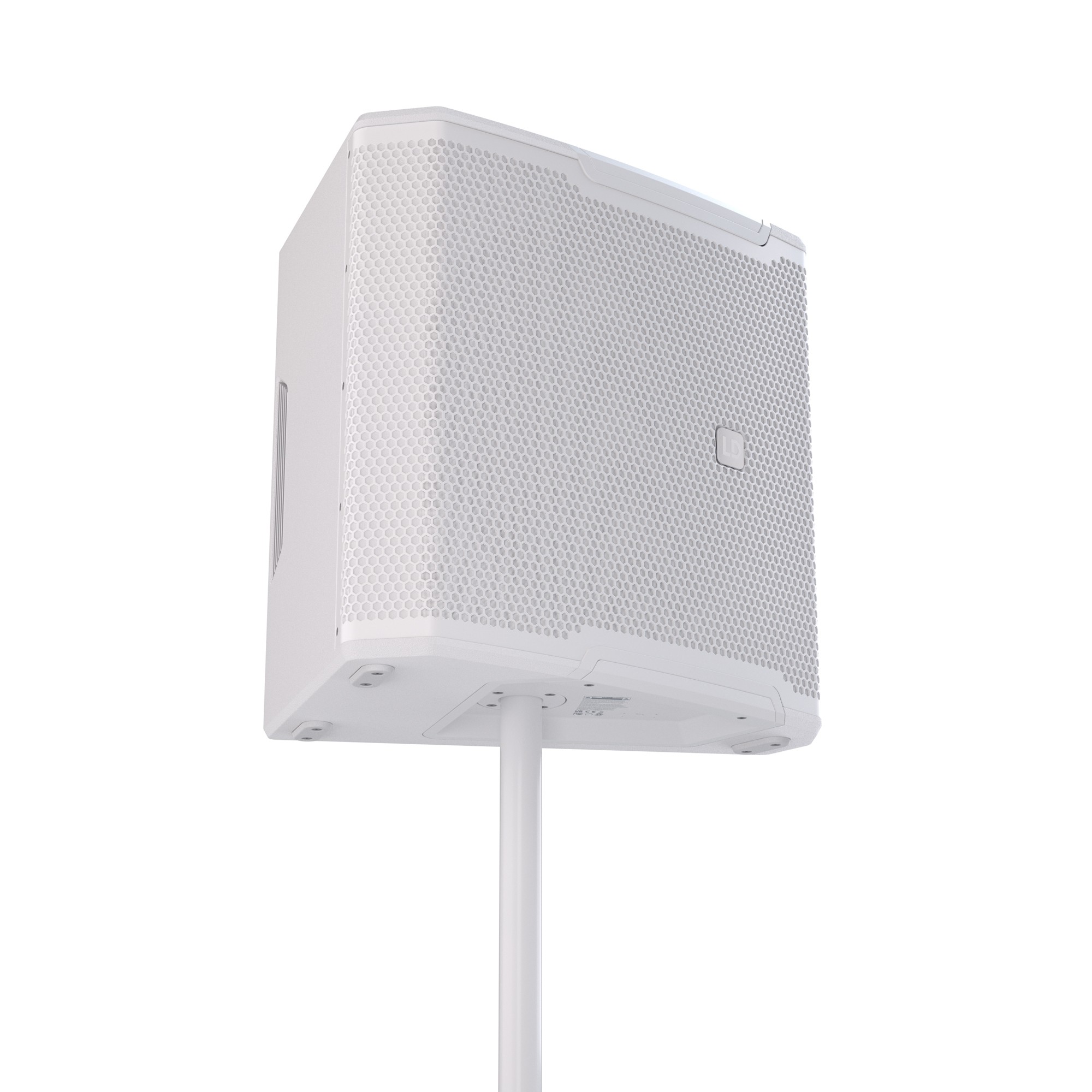

A maximum sound pressure level of 129 dB SPL and excellent bass reproduction make the MON 15 A G3 W the best choice for loud bands, drum fills or for stand-alone use as a compact front-of-house PA system without an additional subwoofer. For a 15-inch woofer stage monitor, it is exceptionally compact and elegant, and remains visually discreet while delivering impressive performance.

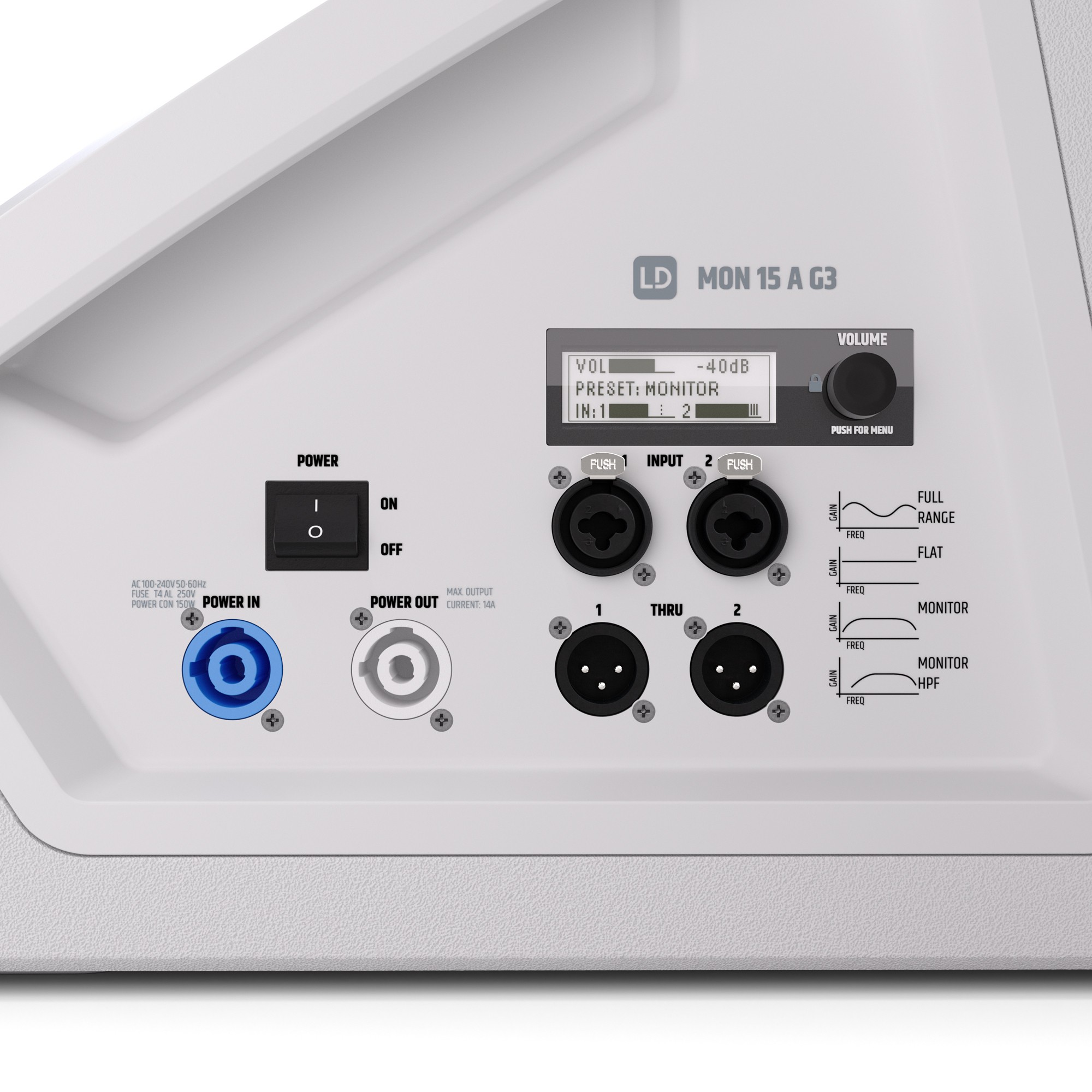

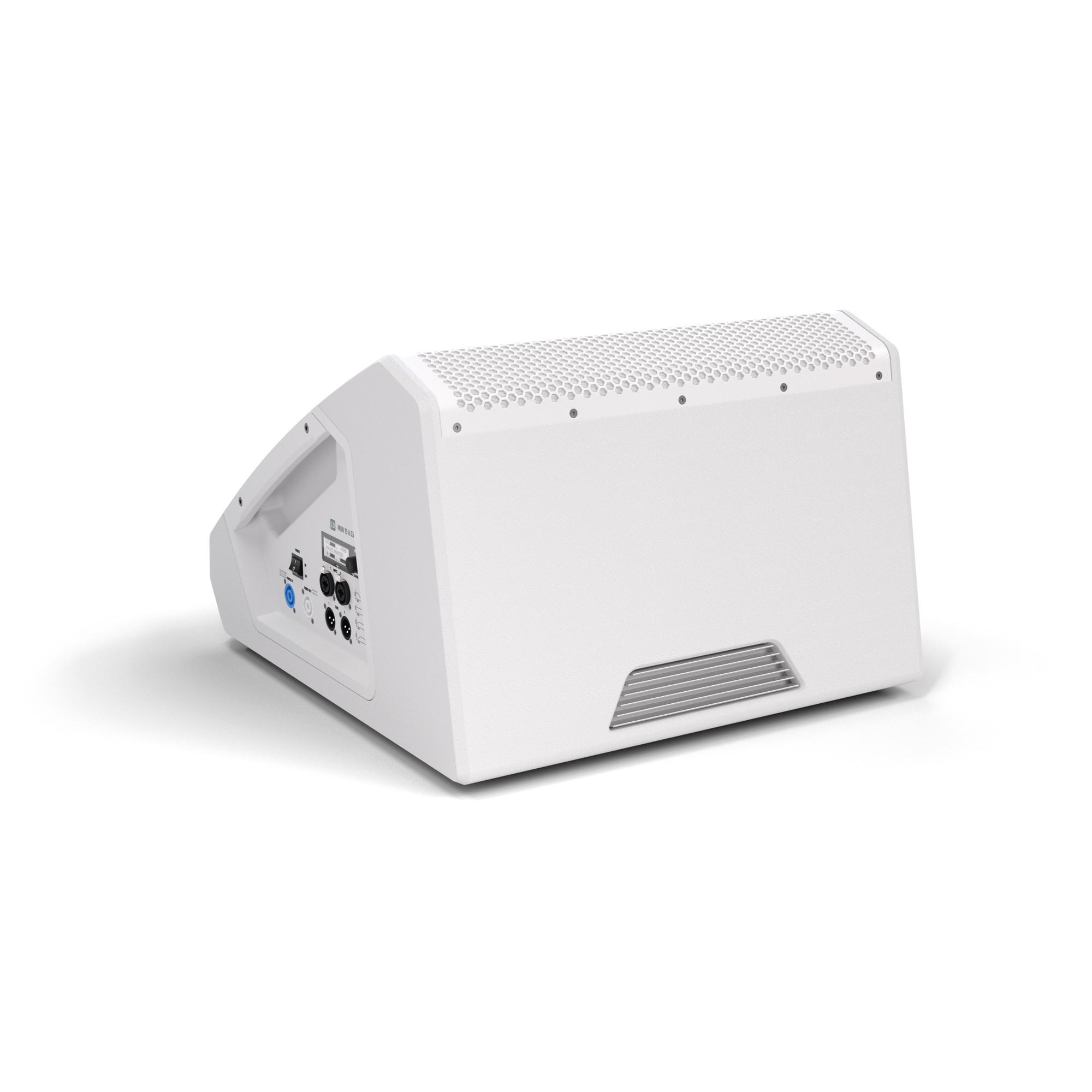

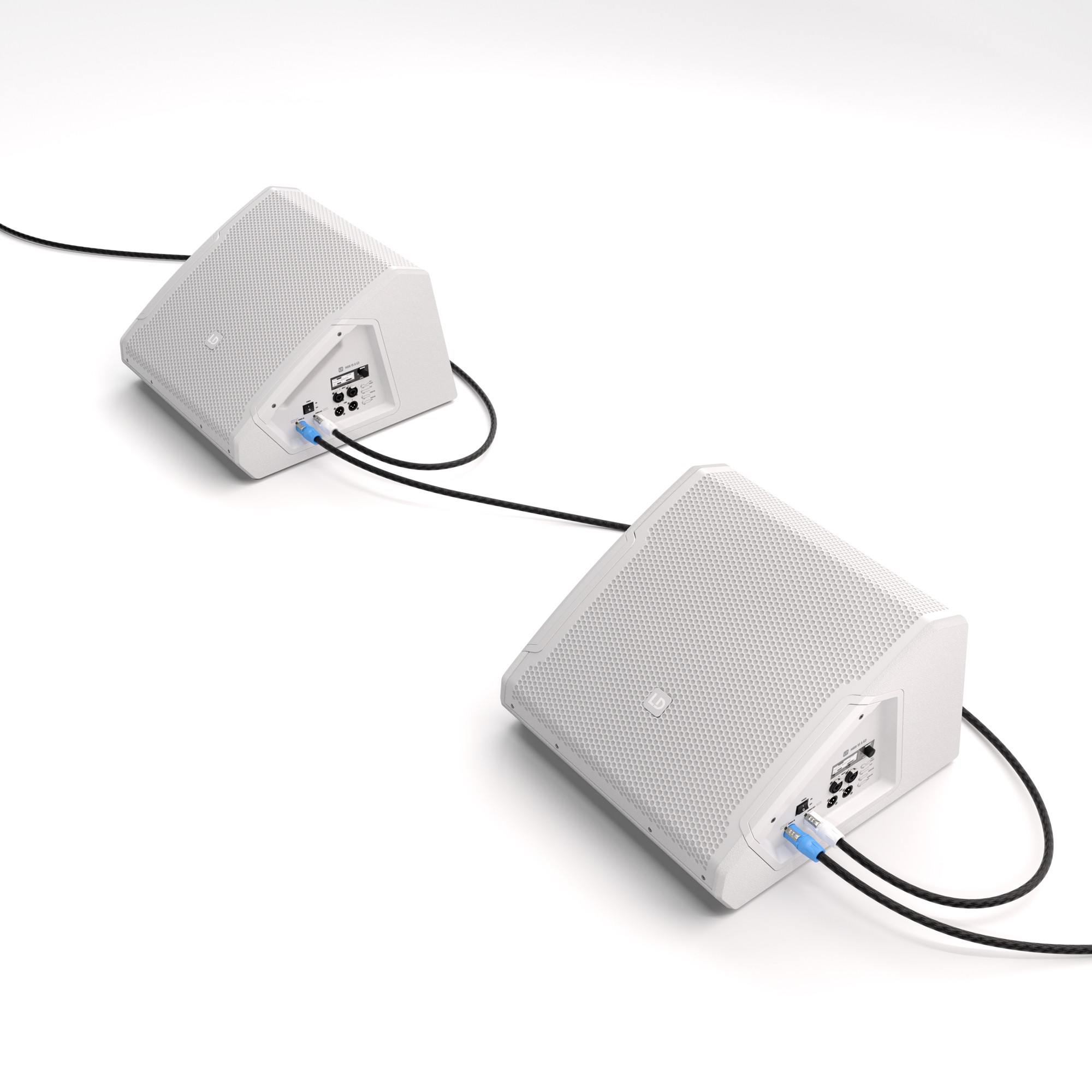

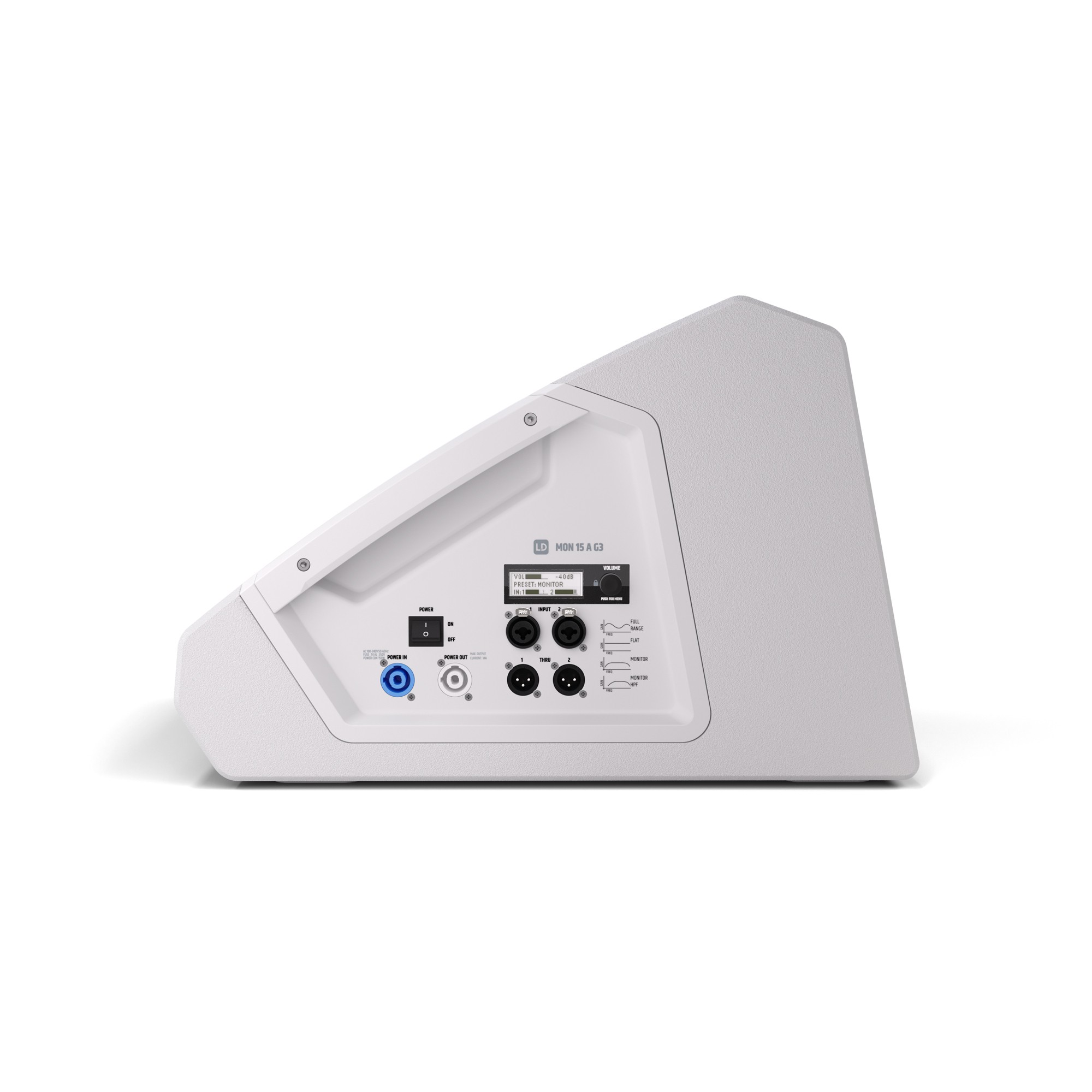

Return connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and clean wiring in multi-monitor or sound distribution installations.
The MON G3 series integrates the cutting-edge technology and uncompromising materials used in high-end monitors typically used in professional rentals and makes this quality available to everyone. For example, the advanced coaxial drivers with a 50° x 90° constant directivity horn are a true point source, an acoustically ideal solution that guarantees exceptional audio performance even in close-range listening. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.
A maximum sound pressure level of 129 dB SPL and excellent bass reproduction make the MON 15 A G3 W the best choice for loud bands, drum fills or for stand-alone use as a compact front-of-house PA system without an additional subwoofer. For a 15-inch woofer stage monitor, it is exceptionally compact and elegant, and remains visually discreet while delivering impressive performance.
Return connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and clean wiring in multi-monitor or sound distribution installations.
Lire la suite
Technical sheet
- PA power speaker 1001 to 1500 watts RMS
- Type of PA speaker Stage monitor
- General
- Product type : Active stage monitor
- Color: White
- Power and performance
- System power (rms): 300 W
- System power (peak) : 1200 W
- Max. Average SPL (Sine burst): 122 dB (100 Hz - 12 kHz, free space @1m, 10% THD)
- Max. Peak SPL (Sine burst): 129 dB (free space @1m, 10% THD)
- Frequency response (-3 dB): 58 - 18,000 Hz
- Frequency response (-10 dB): 48 - 20,000 Hz
- Crossover frequency: 1,300 Hz
- Design and dispersion
- Monitor angle: 33
- Dispersion angle (H x V): 50° x 90°.
- Dimensions and weight
- Dimensions (W x D x H): 505 x 517 x 340 mm
- Weight: 23.15 kg
- Built-in features
- Presets: 4 application presets
- Controls: 3-band equalizer (High, Mid, Low), Notch filter
- Other features: Delay Line
- Speakers
- Woofer
- Diameter: 15" (381 mm)
- Type: Coaxial speaker
- Coil: 3" (75 mm)
- Magnet : Ferrite
- Brand: Custom
- Tweeter
- Diameter: 1" (25.4 mm)
- Coil: 1.75" (44.45 mm)
- Magnet : Ferrite
- Brand: Custom
- Horn: Constant directivity (CD)
- Case
- Type : Bass Reflex
- Materials: 18 mm birch plywood, 15 mm MDF
- Amplification and power supply
- Amplifier type: Class D
- Protection circuits: Multiband limiter, overload, overtemperature, overvoltage
- Operating temperature: 0 to 40°C
- Permissible humidity: < 80% (non-condensing)
- Power supply: SMPS, 100 - 240 V, 50 - 60 Hz
- Power consumption: 150 W
- Mains connector : PowerCON compatible
- Connection
- Line inputs: 2 (6.35 mm jack, XLR - Combo)
- Line feed-through: 2 (XLR)
