Installation speakers
The LD Systems loudspeaker SAT62G2 is a very compact two-channel loudspeaker.
Compatible with many fixed installation applications, thanks to its visual discretion ensuring discreet integration in virtually any decor:
Catering, in point of sale, and also at home.
it houses a 6.5 "(165mm) diameter boomer and a waveguide-loaded flexible dome tweeter.
The SAT62G2 delivers powerful and powerful sound with a frequency response ranging from 55 Hz to 20 kHz and a maximum sound pressure level of 108 dB SPL.
It can be used in full range or satellite mode, complemented by a subwoofer from the LD Systems installation series.
Nominal power of 80 W, nominal impedance of 16 Ohms makes it possible to supply eight SAT62G2 in parallel, thus representing a resulting load of 2 Ohms.

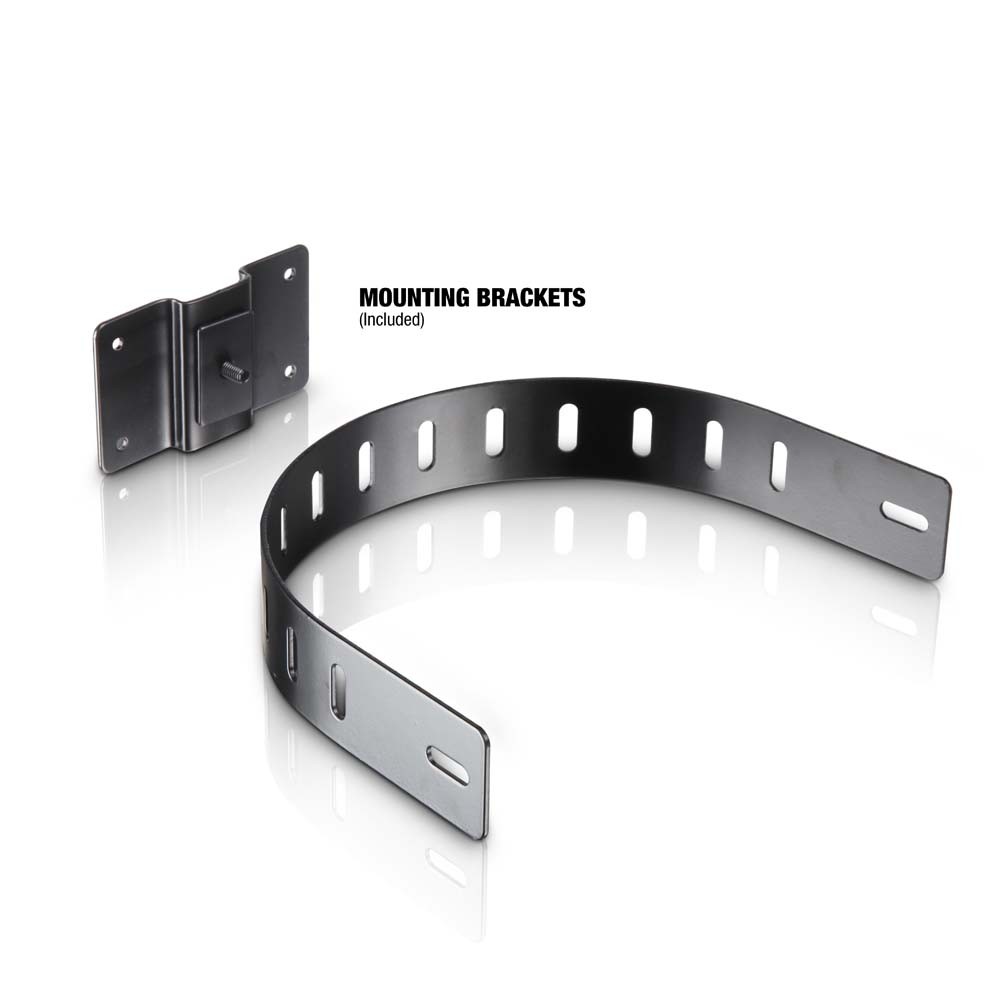

The included mounting bracket and M6 attachment points offer many mounting options, and a universal ball joint mount is available as an option. The connection to the amplifier is made by spring terminal.
Compatible with many fixed installation applications, thanks to its visual discretion ensuring discreet integration in virtually any decor:
Catering, in point of sale, and also at home.
it houses a 6.5 "(165mm) diameter boomer and a waveguide-loaded flexible dome tweeter.
The SAT62G2 delivers powerful and powerful sound with a frequency response ranging from 55 Hz to 20 kHz and a maximum sound pressure level of 108 dB SPL.
It can be used in full range or satellite mode, complemented by a subwoofer from the LD Systems installation series.
Nominal power of 80 W, nominal impedance of 16 Ohms makes it possible to supply eight SAT62G2 in parallel, thus representing a resulting load of 2 Ohms.
The included mounting bracket and M6 attachment points offer many mounting options, and a universal ball joint mount is available as an option. The connection to the amplifier is made by spring terminal.
Lire la suite
Technical sheet
- Inside / outside Internal use only
- Type of installation Wall installation
- -Type of product Fixed installation loudspeakers
- -Type Wall speakers
- -Diameter boomer / midrange 6.5 "
- -Diameter Boomer 165 mm
- Ferrite Boomer Magnet
- -Bander brand Custom
- -Diameter tweeter 1 "
- -Diameter Tweeter 25mm
- Ferrite tweeter magnet
- -Marque tweeter Customized
- -Angle of dispersion (H x V) 60 x 60 °
- -Power (effective) 80 W
- Frequency response 55 - 20000 Hz
- -Level of sound pressure (for 1 W to 1 m) 89 dB
- -Level of maximum sound pressure 108 dB
- -Impedance 16 Ohm (s)
- Tweeter protection circuits
- -Entertainment speaker 1
- Pregnant input connectors Clamping
- -Material box MDF board 12 mm
- -Surface of the box Painted structured paint
- -Color black box
- -Finition box set Bass Reflex
- -Width 200 mm
- -Height (mm) 320 mm
- -Depth 200 mm
- -Weight 8.2 kg-
