Ld systems Stinger 8 G3
- Read reviews (0)
- Related accessories
- Similar products
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
- Ref : 83430
In stock
shipped under 8/10 days
Stock in store
Not available in store
The brand Ld systems
Learn more about the Ld systems brand and discover the entire catalog.
How to choose your PR System Buying guide
Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Passive fullrangespeaker

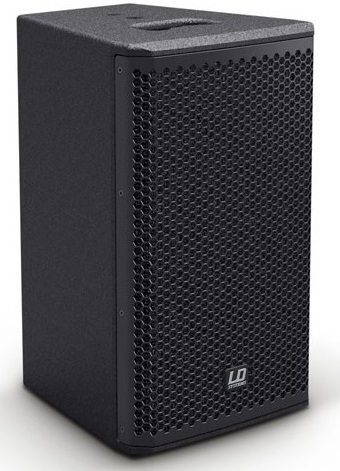

The LD Sytems Stinger 8 G3 is a 2-way passive speaker.
This ultra-professional 2-way speaker has been designed and manufactured to ensure absolute reliability over time.
Thanks to its multifunction bass reflex cabinet, the speaker is suitable for use as Full Range satellite or back stage, mobile configuration or fixed installation.

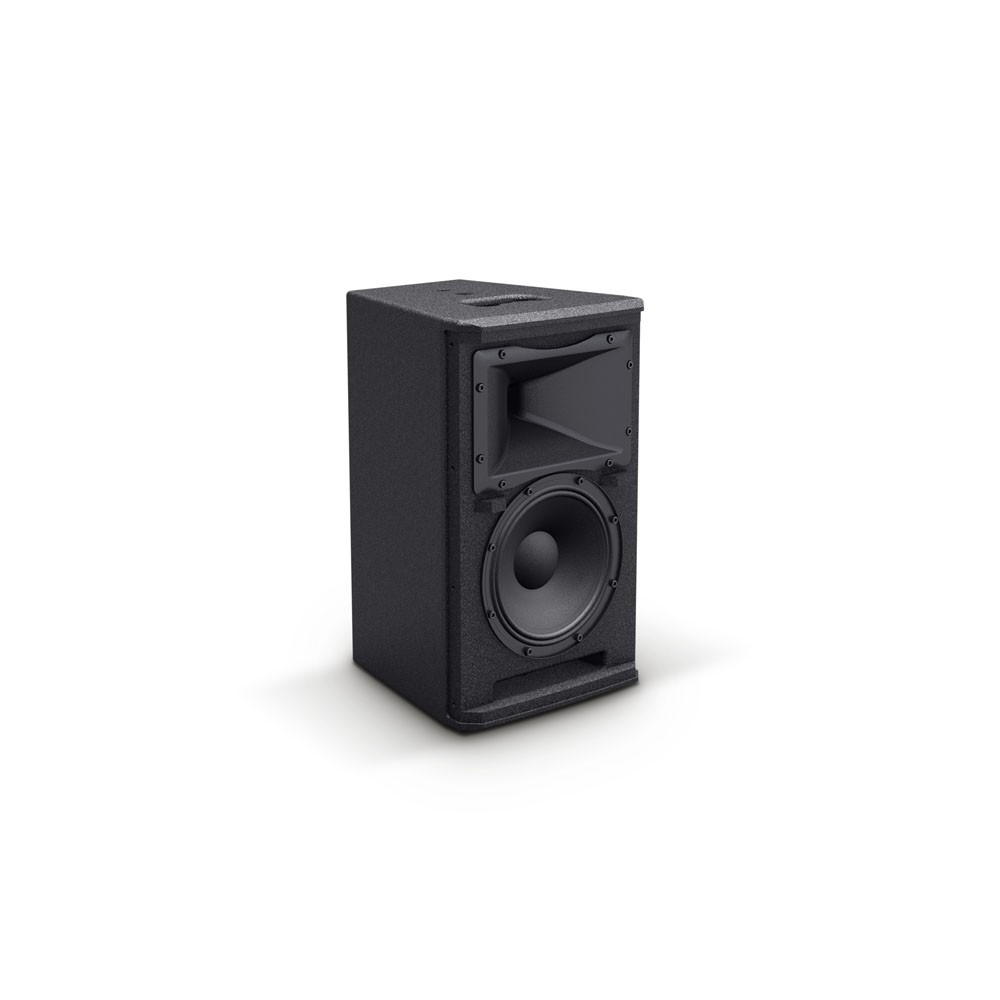

The Stinger® 8 G3 has a continuous power rating of 250 watts, and reaches a maximum sound pressure level of 118 dB SPL. Its 8-inch boomer, developed specifically, and its tweeter BMS ensure a low downward restitution in the bass and treble fresh and natural. The tweeter waveguide was developed taking into account edge effects (BEM), with a numerical simulation of the radiation and the propagation of sound energy. It reduces reflections on the floor and ceiling, avoids side lobes and provides a controlled and homogeneous dispersion. The Stinger® 8 G3 is designed for any challenge. Its rugged bass reflex case is made of robust birch plywood, and its extremely durable Polyurea finish provides exceptional stability and durability. The enclosure is equipped with a steel front grille, a Dual-Tilt footwell, grip points and ergonomic handles. The Stinger® 8 G3 loudspeaker is an attractive professional sound solution, and a wide range of accessories for both stage and fixed installation.
This ultra-professional 2-way speaker has been designed and manufactured to ensure absolute reliability over time.
Thanks to its multifunction bass reflex cabinet, the speaker is suitable for use as Full Range satellite or back stage, mobile configuration or fixed installation.
The Stinger® 8 G3 has a continuous power rating of 250 watts, and reaches a maximum sound pressure level of 118 dB SPL. Its 8-inch boomer, developed specifically, and its tweeter BMS ensure a low downward restitution in the bass and treble fresh and natural. The tweeter waveguide was developed taking into account edge effects (BEM), with a numerical simulation of the radiation and the propagation of sound energy. It reduces reflections on the floor and ceiling, avoids side lobes and provides a controlled and homogeneous dispersion. The Stinger® 8 G3 is designed for any challenge. Its rugged bass reflex case is made of robust birch plywood, and its extremely durable Polyurea finish provides exceptional stability and durability. The enclosure is equipped with a steel front grille, a Dual-Tilt footwell, grip points and ergonomic handles. The Stinger® 8 G3 loudspeaker is an attractive professional sound solution, and a wide range of accessories for both stage and fixed installation.
Lire la suite
Technical sheet
- PA power speaker 151 to 300 watts RMS
- Type of PA speaker Stage & FOH monitor
- Product Type PA Speaker
- Passive Type
- Boomer diameter / medium 8 "
- Boomer diameter 203.2 mm
- Magnet Ferrite Boomer
- Brand Boomer Custom
- 2 "woofer coil
- Boom winder (mm) 50,8 mm
- Horn optimized BEM horn with constant directivity
- Diameter tweeter 1 "
- Tweeter diameter 25.4 mm
- Ferrite tweeter magnet
- Brand tweeter BMS
- 1 "tweeter coil
- 25.4mm Mobile Tweeter Reel Diameter
- Dispersion angle (H x V) 90 ° x 50 ° °
- Power (effective) 250 W
- Power (peak) 500 W
- Frequency response 70 - 20000 Hz
- Sound pressure level (for 1 W to 1 m) 95 dB
- Maximum sound pressure level 119 dB
- Impedance 8 Ohm (s)
- Tweeter protection circuits

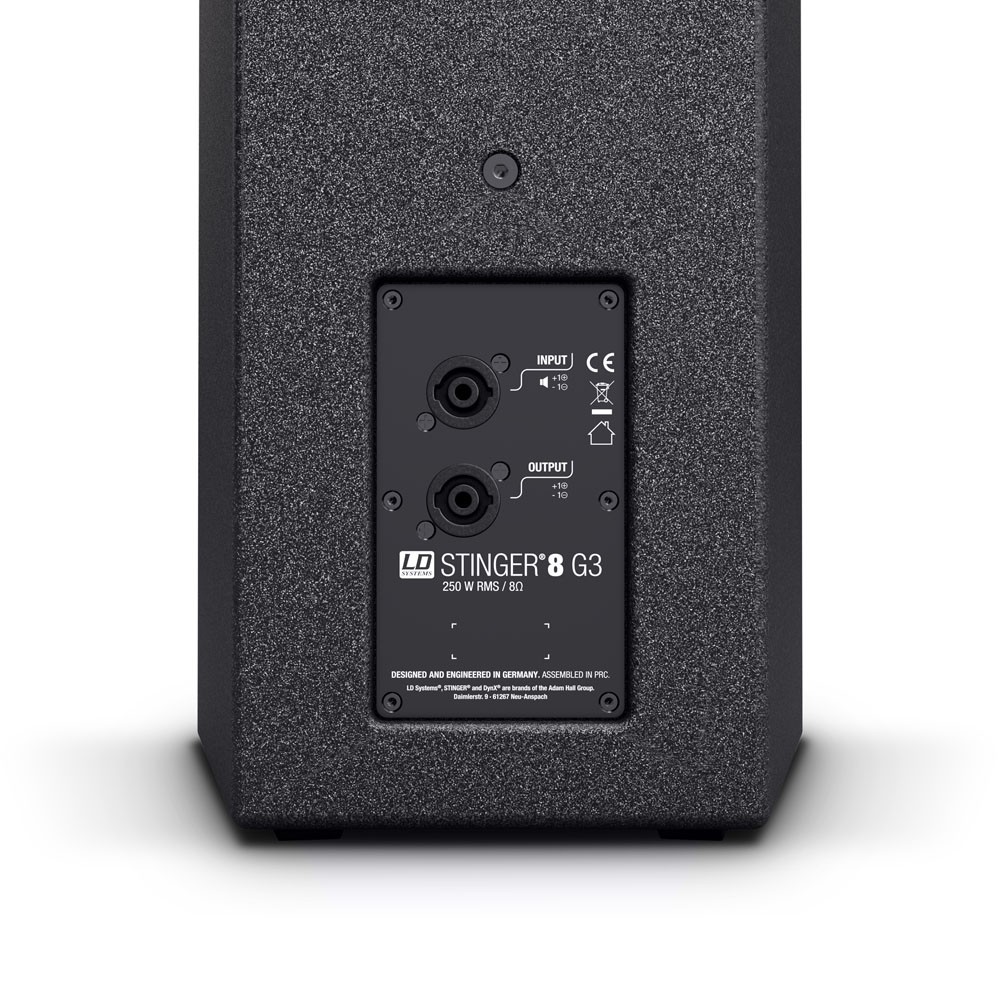

- Speaker Inputs 1
- Speakon Compatible Speaker Input Connectors
- Speaker outputs 1
- Speakon Compatible Speaker Output Connectors
- Box material Plywood 12 mm
- Surface of the Polyurea box
- Bass reflex cabinet finish
- Width 270 mm
- Height (mm) 457 mm
- Depth 290 mm
- Features M10 thread for SuperClamp, ergonomic handles
- Weight 9.9 kg
