Ld systems U518 BPW

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Ld Systems U518 Bpw - Wireless microphone for instrument - Main picture
  • Ld Systems U518 Bpw - Wireless microphone for instrument - Variation 1
  • Ld Systems U518 Bpw - Wireless microphone for instrument - Variation 2
  • Ld Systems U518 Bpw - Wireless microphone for instrument - Variation 3
  • Ld Systems U518 Bpw - Wireless microphone for instrument - Variation 4
  • Ld Systems U518 Bpw - Wireless microphone for instrument - Variation 5
416.00 €
333,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 83226
In stock
shipped under 8/10 days
Stock in store
Not available in store

The brand Ld systems

Learn more about the Ld systems brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Wireless microphone for instrument

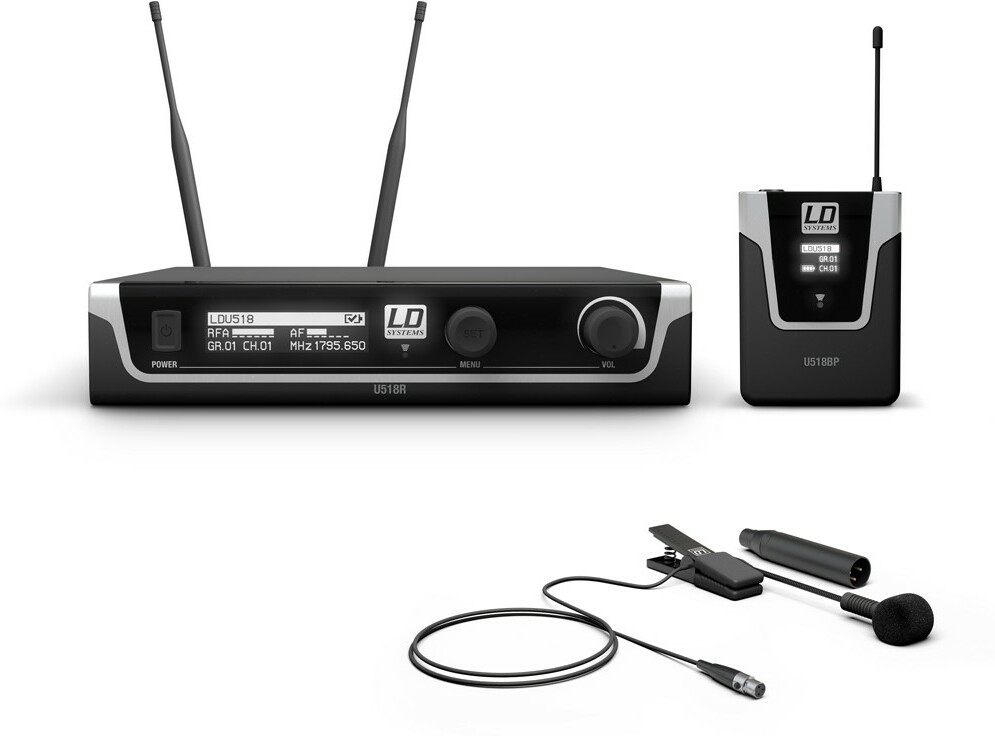

The LD Systems U518 BPW is a Micro HF instrument.

Whether you're playing guitar, bass, wind or bow, the U500® series has been designed to meet your expectations.
The major challenge for our development team has been to create a wireless instrument system that delivers professional sound, amazing performance, and reliable reliability at an affordable price.

With selectable transmit power up to 30 MW, the U500® Series instrument sets reach a range of over 100 meters in free field.
These are available for three radio frequency bands: 584 to 608 MHz and 655 to 679 MHz, in which 12 systems can operate simultaneously, and 823 to 832 MHz + 863 to 865 MHz, in which six systems can operate. to be used at the same time.
In order to obtain a distortion-free audio signal, the gain control of the belt transmitter allows a maximum damping of 27 dB, for a perfect adaptation to guitars and basses, active or passive, or to wind instruments that generate sound pressure high. Even the most serious tones are reproduced with precision, thanks to a frequency response down to 30 Hz. In addition, it is possible to switch the impedance and output level on the receiver to directly connect guitar amplifiers. and bass.
Lire la suite

Technical sheet

  • Digital transmission No
  • Frequency HF Manual search
  • Product type Wireless microphone systems
  • Type Wind Instruments
  • Frequency range HF 1785 - 1800 MHz
  • Weight 2.46 kg

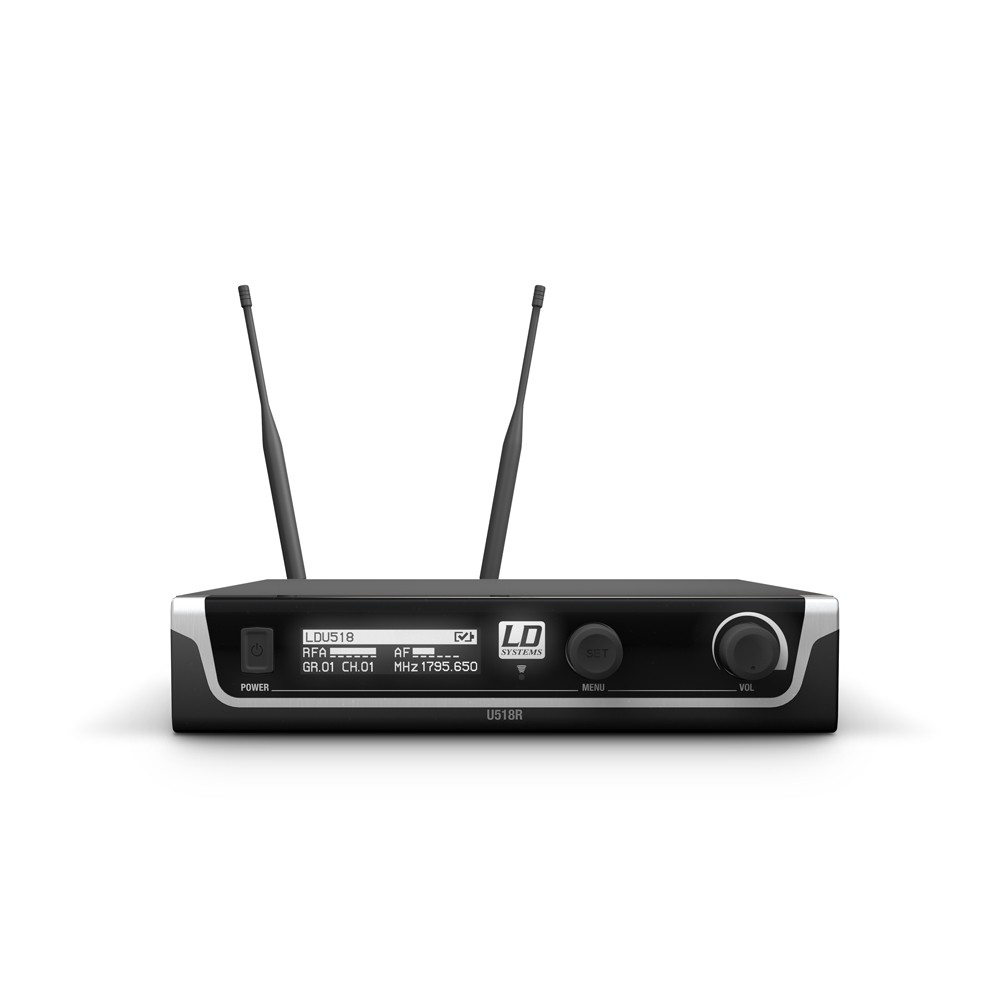

  • LDU518R - LD Systems U518 R Receiver
  • FM modulation type
  • Frequency response 30 - 16000 Hz
  • Channels 96 (8 groups of 12 channels)
  • Groups 8
  • Inputs antenna 2
  • BNC antenna connector
  • Signal to noise ratio> 100 dB
  • Noise reduction Squelch
  • Distortion rate (THD) <0.1%

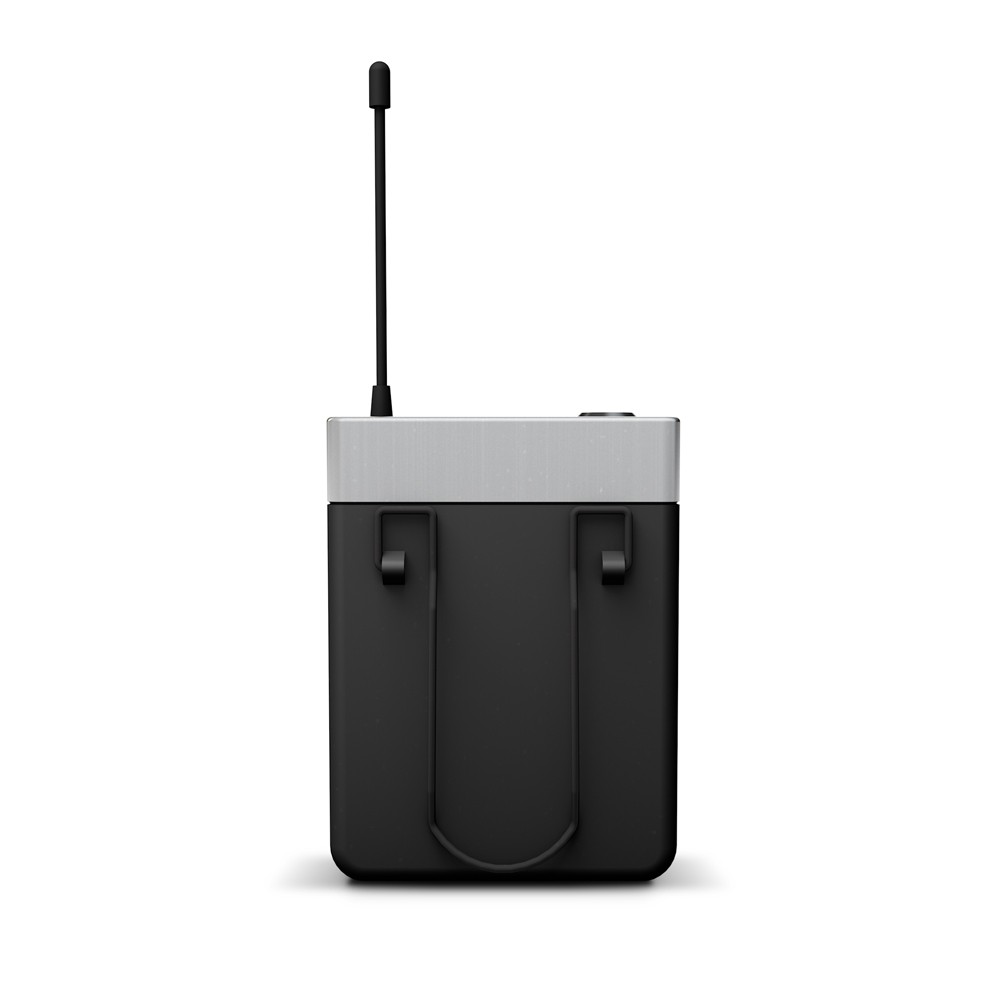

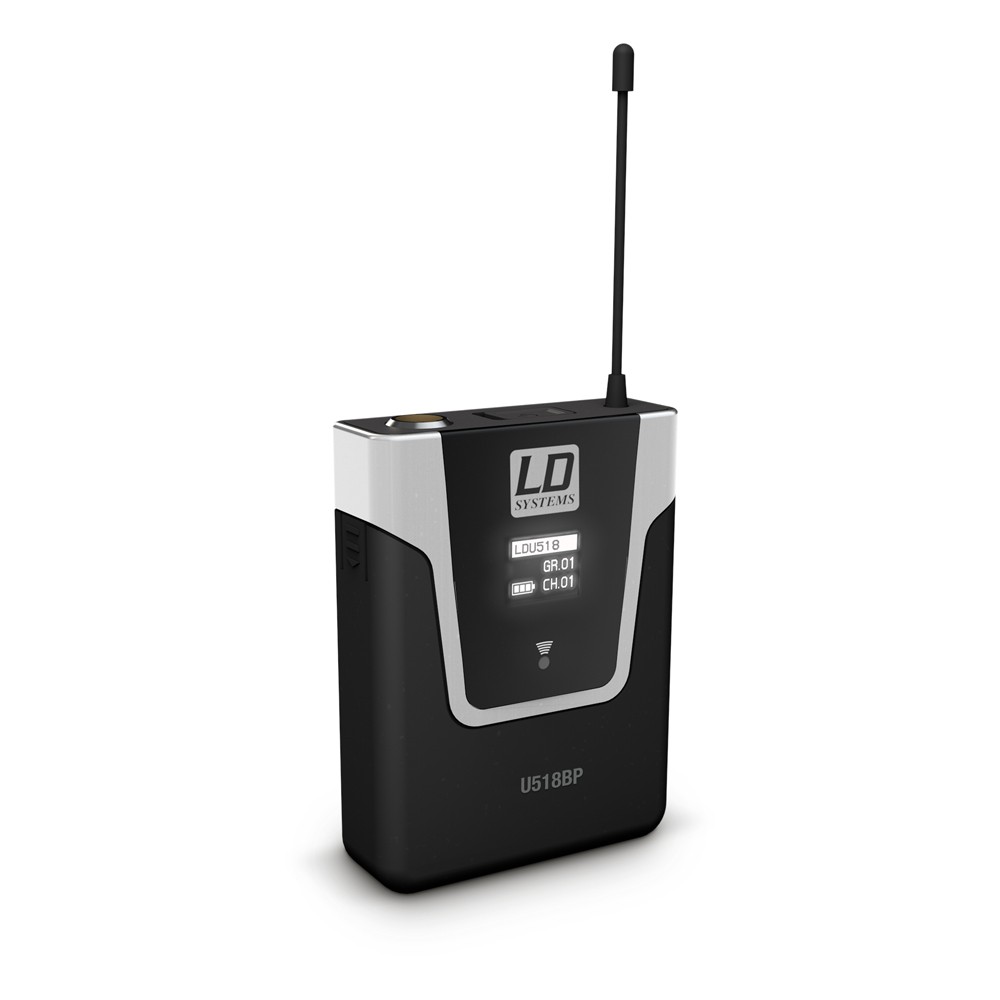

  • LDU518BP - LD Systems U518 BP Belt Transmitter
  • Type Belt Emitters
  • Mini-XLR Inputs (3 points)
  • Signal-to-noise ratio> 90 dB
  • Variable HF output power (2mW, 10mW, 30mW)
  • Settings Cursor keys (entry of values, up / down)
  • Line voltage 2 x LR06 batteries (AA)
  • Autonomy> 10 hours (with alkaline batteries)

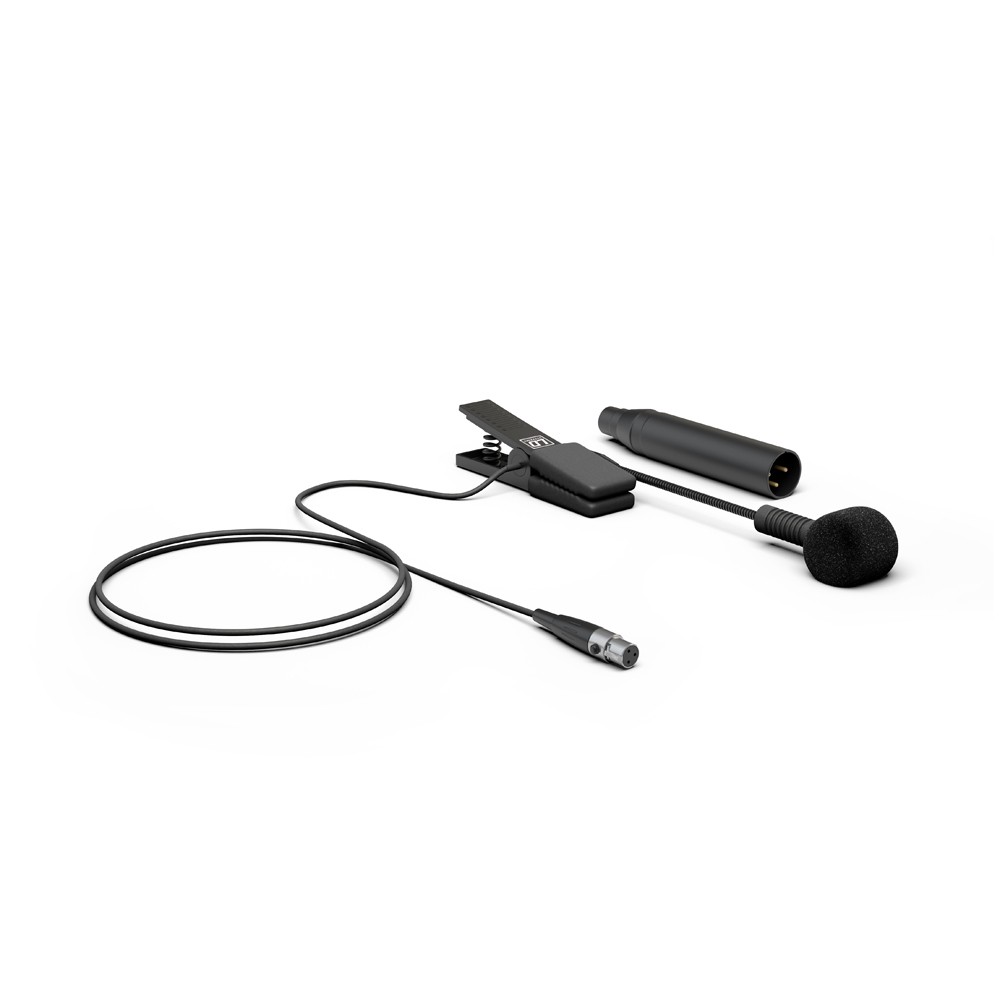

  • LDWS1000MW - LD Systems WS 1000 MW Microphone Clamp for Wind Instruments
  • Micros type
  • Frequency response 50 - 18,000 Hz
  • Cardioid directionality
  • Sensitivity (idle voltage, 1 kHz) - 45 dB +/- 3 dB
  • Rated impedance 250 Ohm (s)
  • SPL level max (for 1% THD at 1 kHz) 133 dB
  • Features 5 V phantom power
More specifications
Fewer specifications
