Analog mixing desk

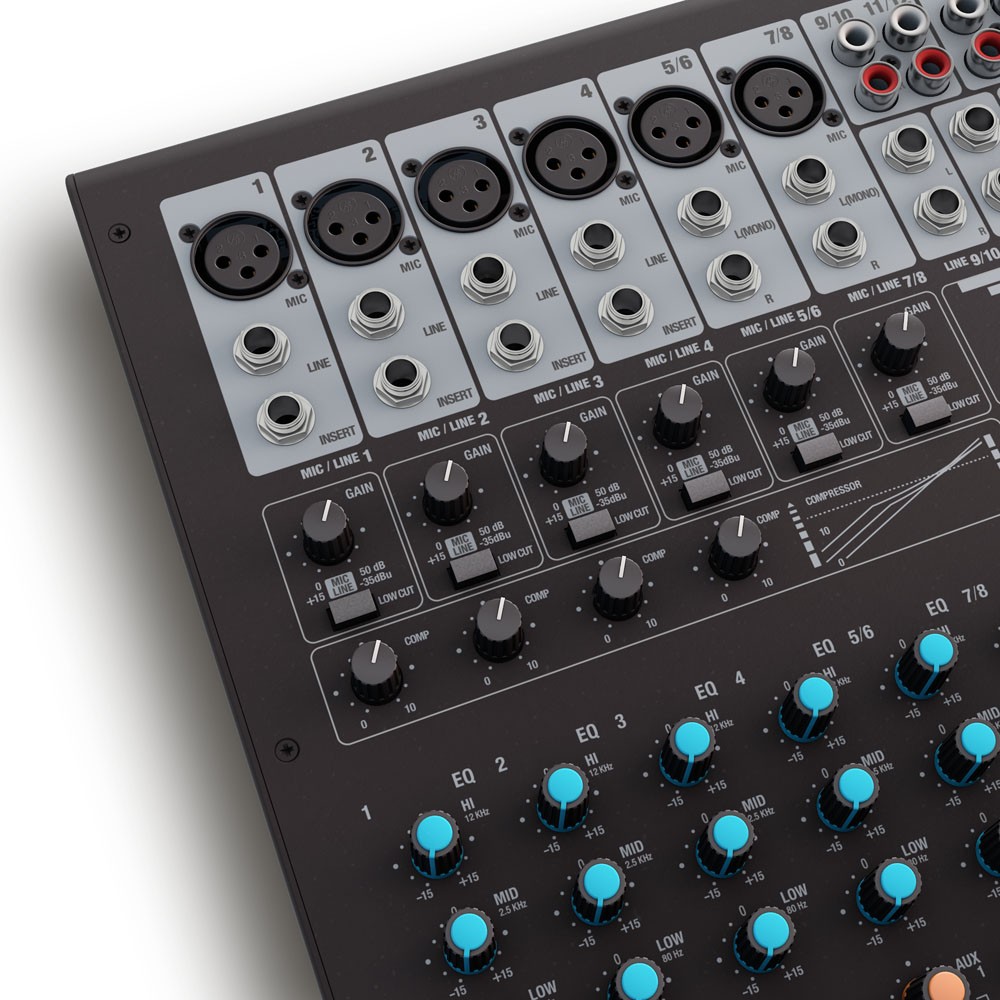

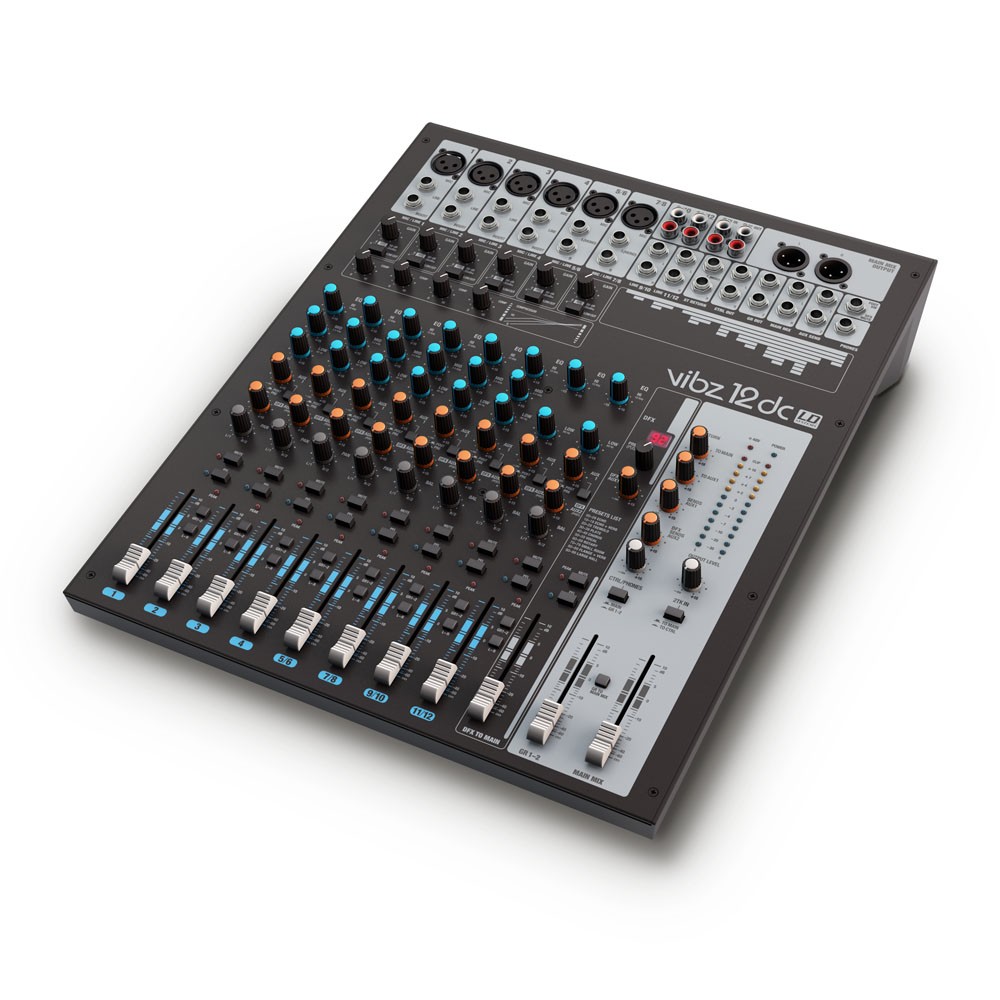

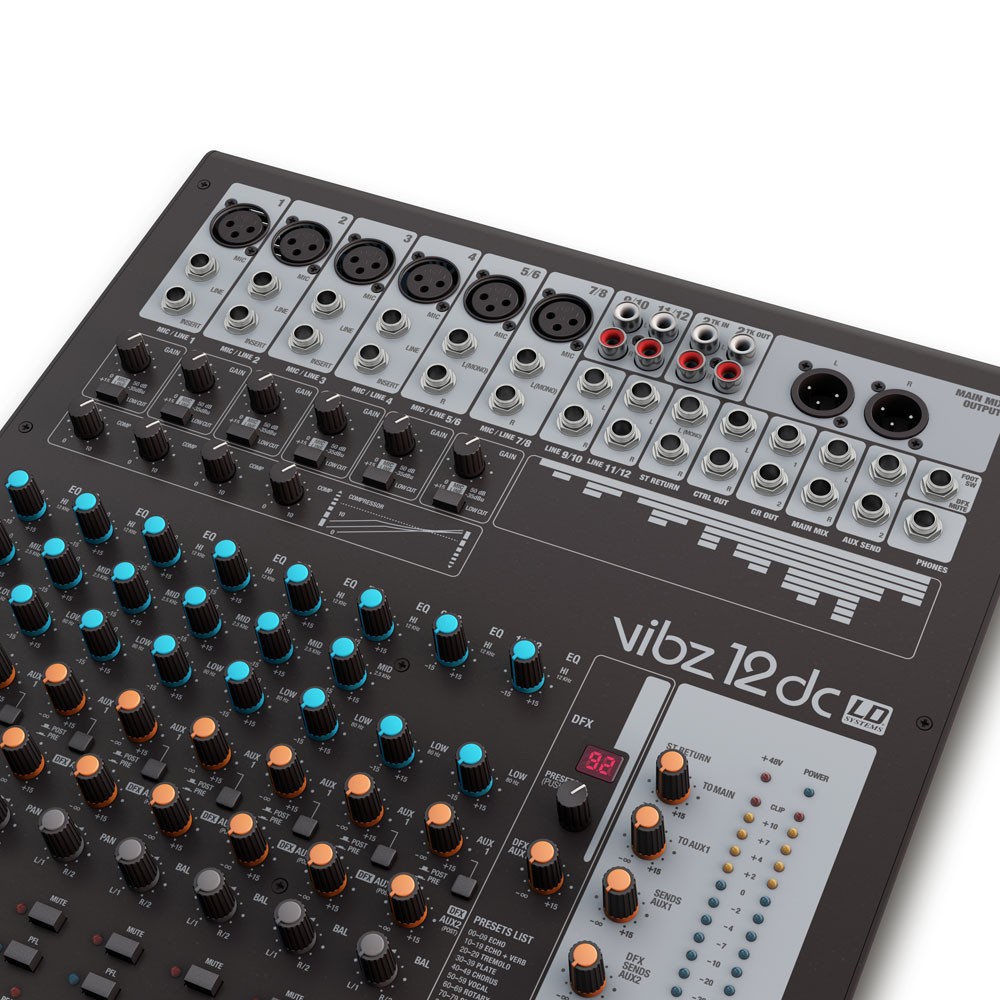

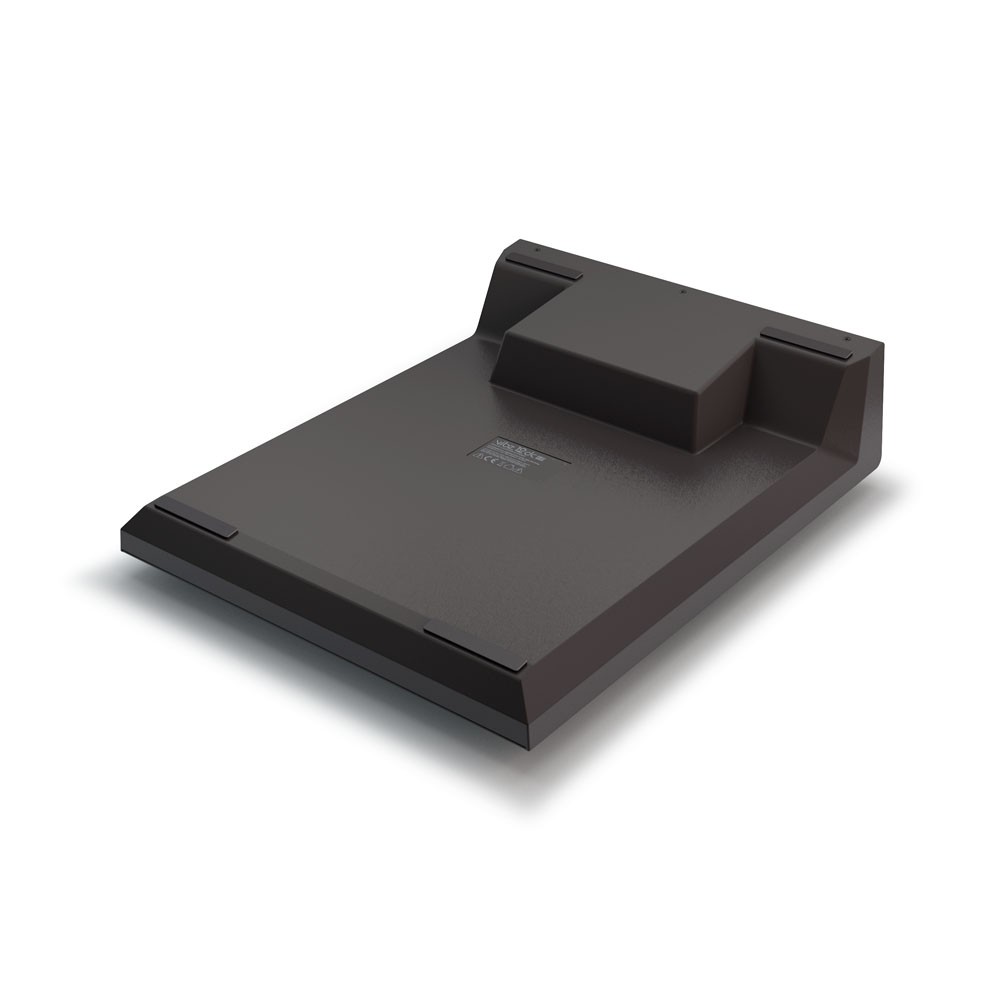

The Ld systems Vibz 12 Dc is a 12-channel analogue mixer.

12-channel mixer, including 6 microphone channels
4 line-level stereo inputs
High-efficiency 3-band equaliser
2 stereo channels with bass/treble corrector
Progressively adjustable compressor
Digital multi-effects with 100 presets
Master, monitor, group and headphone outputs
Integrated mains power supply.

Technical sheet

Mixer connectivity Without computer connection
Number of channel mixing desk 10 to 22 channels

Type of product
Mixing consoles
Kind
Live
Number of entries
12
Mono Mic/Line Input Channels
4
Mono Micro Input Connectors
6.35 mm stereo jack, XLR
Mono Input Type Microphone
Electronic Symmetry
Mono microphone input frequency response
10 - 45000 Hz
Mono microphone input gain values
0 - 50 dB
Harmonic distortion rate (THD) mono microphone input
0.0058%
Mono microphone input impedance
4k Ohm(s)
Mono microphone input Signal/Noise ratio
113dB
Mono Input Type Line
Electronic Symmetry
Mono line input frequency response
10 - 45000 Hz
Mono line input gain values
0 - 50 dB
Harmonic distortion rate (THD) mono line input
0.0045%
Mono line input impedance
21k Ohm(s)
Mono Line Input Signal/Noise Ratio
116dB
Mono channel midrange corrector
+/- 15 dB @ 12000 Hz
Mono channel treble corrector
+/- 15 dB @ 2,500 Hz
Mono channel bass corrector
+/- 15dB @ 80Hz
Mono Mic/Line input channel controls
AUX 1 switchable Pre/Post, Compressor, DFX/AUX 1, 3-band EQ (High, Mid, Low), Gain, Low Cut (high pass, 75 Hz), PFL, AUX 2 selector (DFX) Post
Main-Section Settings
2 Track Assignment (Main, Contr. Room), CTRL / Phones Assignment (Main/Groups 1-2), Phantom Power, Groups 1-2 Assignment to Main MIX, 2-Track Input Listening Level, AUX 2 Send Level , DFX TO AUX level, Groups 1-2 level, Stereo Return to AUX level, Stereo Return to MAIN level, PFL, Power, Presets, DFX To Main level control, DFX Mute button, headphone/Control Room volume, Master Volume
Indicators
Phantom power, DFX Peak, DFX TO MAIN, PFL, Power
Mains voltage
100 - 240 V, 50 - 60 Hz
Width
350mm
Height (mm)
98mm
Depth
440mm
Weight
4.3kg
