Lewitt DTP 640 REX
- Read reviews (0)
- Related accessories
- Similar products
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
- Ref : 93758
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
The brand Lewitt
Learn more about the Lewitt brand and discover the entire catalog.
Microphone buying guide
What microphone should you buy to record voice, guitar or drums? Everything is explained through this buying guide!
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Description

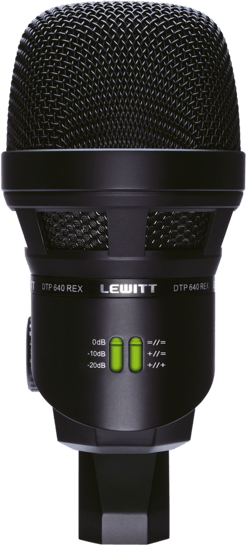

the Lewitt DTP 640 rex is a percussion microphone.
The DTP 640 REX is a dual-element microphone specially designed to capture the sound of your drums and percussion instruments. It consists of two phase-aligned capsules, a condenser and a dynamic. You can switch between three sounds for flexibility in studio and live applications.
.
The DTP 640 REX is a dual-element microphone specially designed to capture the sound of your drums and percussion instruments. It consists of two phase-aligned capsules, a condenser and a dynamic. You can switch between three sounds for flexibility in studio and live applications.
.
Lire la suite
Technical sheet
- Type
- Dynamic, moving coil, Condenser, permanently polarized
- Acoustical operating principle
- Pressure gradient transducer
- Transducer Ø
- 31.7 mm, 1.25 in
- Transducer Ø
- 22.4 mm, 0.88 in
- Polar pattern
- Cardioid
- Frequency range (dynamic)
- 20 ... 16,000 Hz
- Frequency range (condenser)
- 20 ... 20,000 Hz
- EFR, ‘Enhanced Frequency Response' settings
- Sensitivity, = // = FFR
- 0.4 mV/Pa (-69 dBV), dynamic
- 2 mV/Pa (-54 dBV), condenser
- Sensitivity, + // = Dynamic EFR0.4 mV/Pa, -69 dBV/Pa, dynamic
- 2 mV/Pa, -54 dBV/Pa, condenser
- Sensitivity, + // + Dual EFR
- Condenser and dynamic matched at 1 mV/Pa, -60 dBV
- Equivalent noise level
- 28 dB (A)
- Max. SPL for 0.5 % THD
- 150 dBSPL, 0 dB pre-attenuation
- Dynamic range of mic. amp. (condenser)
- 122 dB

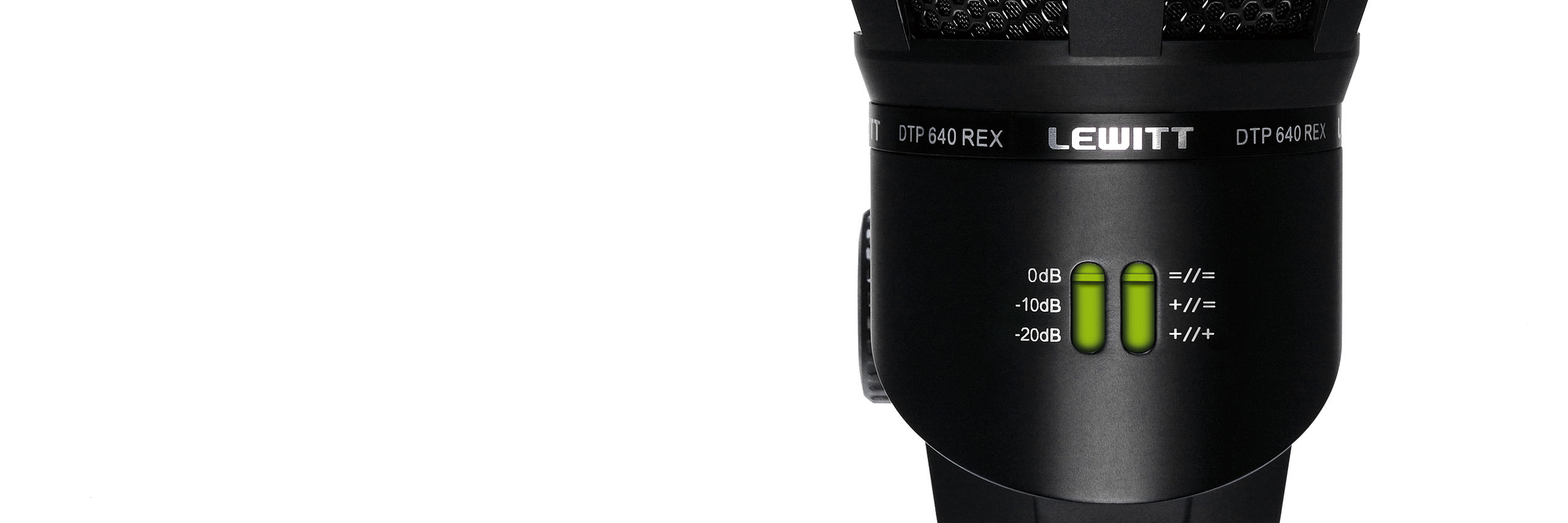

- Pre-attenuation pad
- 0 dB
- -10 dB
- -20 dB
- Rated impedance dynamic
- 500 Ω
- Rated impedance condenser
- 200 Ω
- Supply voltage
- 48 V ± 4 V
- Current consumption
- 2 mA
- Connector
- Gold plated 3-pin and 5-pin XLR
- Cable
- 1.5 m (4.95’) dual shielded Y-cable, 5-pin XLR into two 3-pin XLRs
- Microphone dimensions
- 71 dia. x 158 mm, 2.8 dia. x 6.2 in
- Microphone net weight
- 755 g, 27.3 oz
